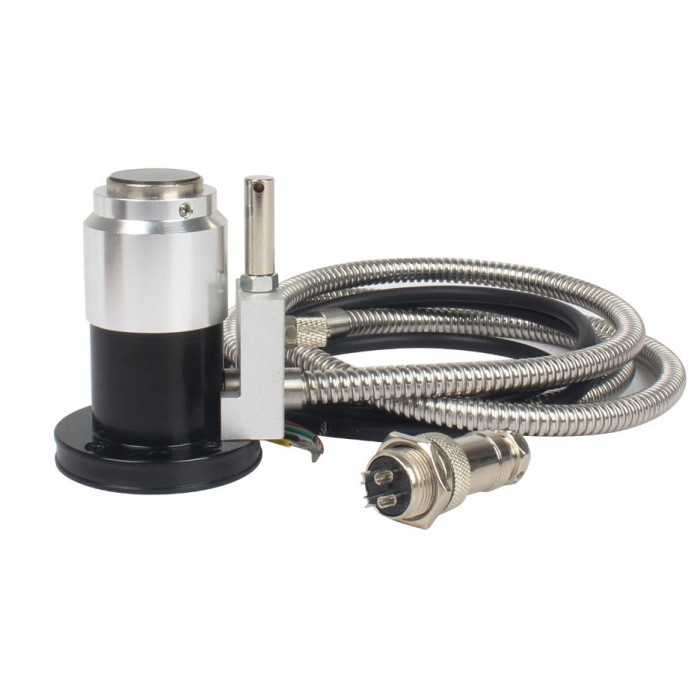

CNC Tool Setting Gauge Z-Axis Automatic Tool Sensor Gauge CNC Fit Mach3 4 Wires

CNC Tool Setting Gauge Z-Axis Automatic Tool Sensor Gauge CNC Fit Mach3 4 Wires

Specifications

Sensor Type: Touch-Trigger Probe

Output Signal: Normally Closed (NC)

Operating Stroke: 5 mm

Repeatability: 0.001 mm (at 20-200 mm/min feed rate)

Mechanical Life: 3 million cycles

Trigger Force: 1.5 N

Tip Diameter: 15 mm (Carbide)

Electrical Rating: DC 24V, Max 20mA ( 10mA resistive load)

Cable Length: 1.5 meters

Construction: Carbide tip and stainless steel body

Compatibility: Designed for use with Mach3 and similar CNC control systems.



Package Contents

1 x Tool Setting Gauge

1 x Set of Mounting Accessories



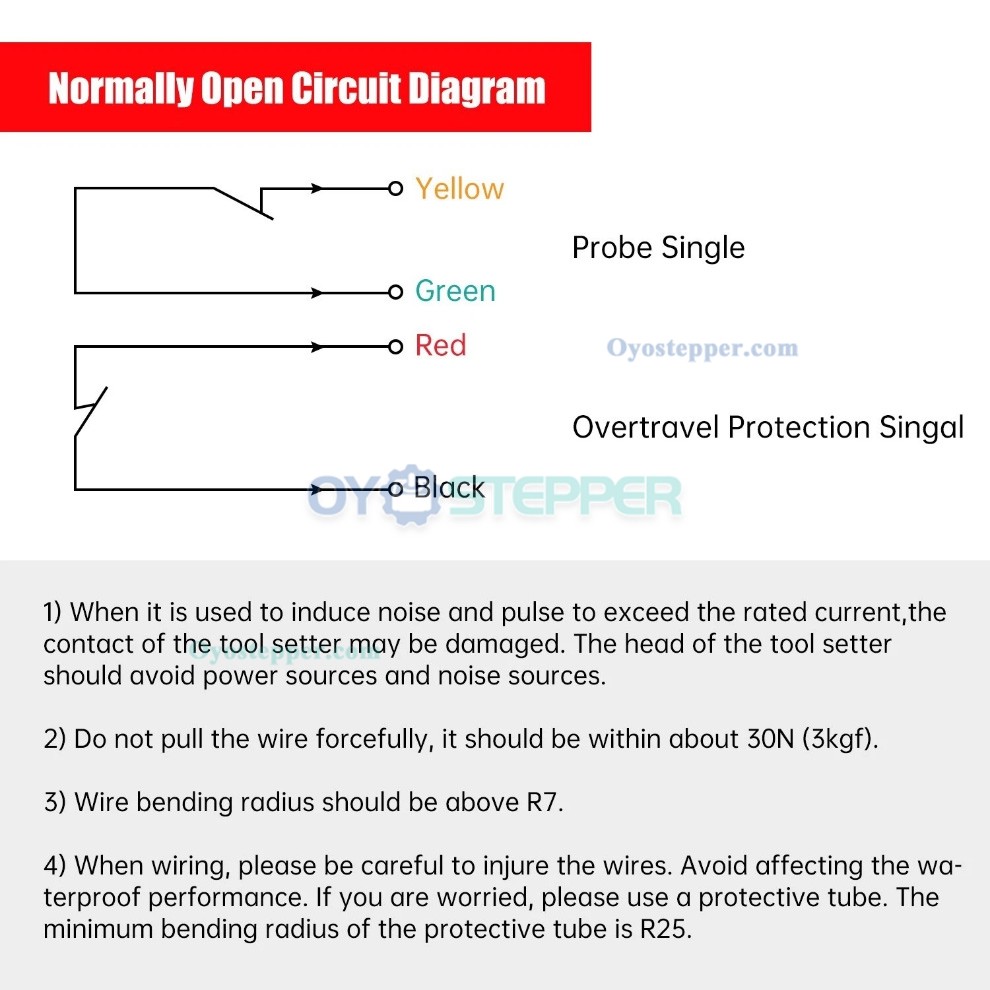

Usage Notes

Recommended feed rate during probing: 50-200 mm/min.

Operating ambient temperature range: 0°C to 80°C.

Supply voltage must within DC 0-24V and current is below 20mA.
