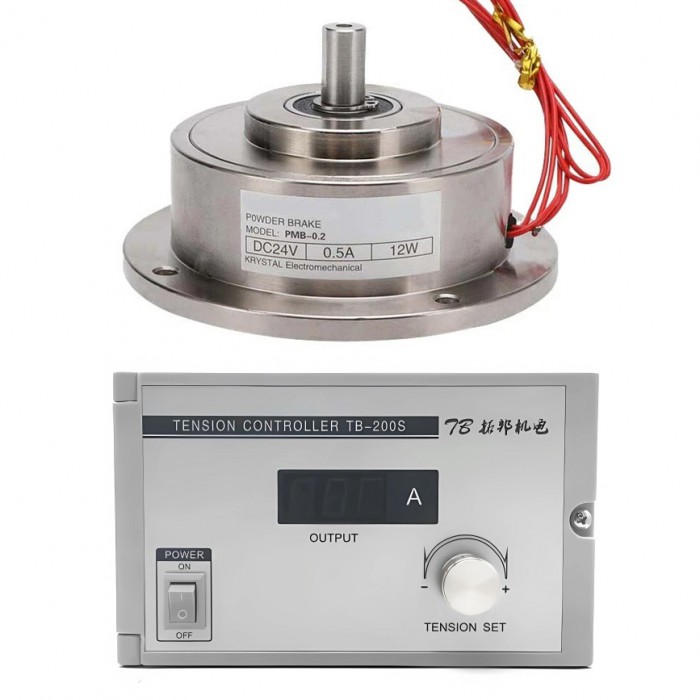

PMB Micro Magnetic Powder Brake 0.5–5Nm 24V + TB-200S Manual Tension Controller Kit

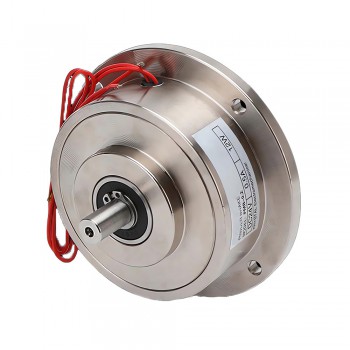

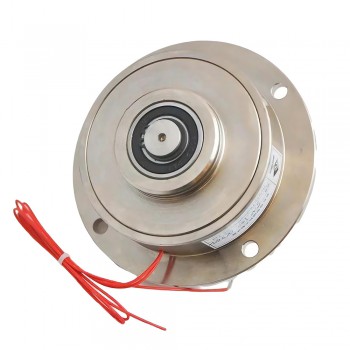

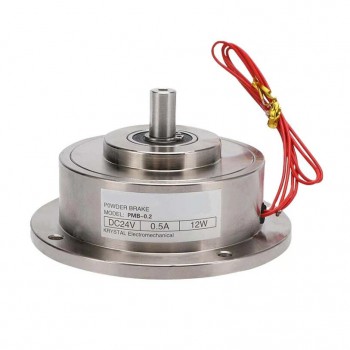

PMB Series Micro Magnetic Powder Brake 0.5–5Nm 24V for Winding Tension Control


The PMB Series Micro Magnetic Powder Brake is designed for braking and tension control in winding and unwinding applications. It offers torque options from 0.5Nm to 5Nm, operates on 24V DC, and supports speeds up to 1800 RPM.

Its compact design can be integrated into wire winding, film, foil, tape, textile and other industrial tension control equipment.

Features:
Adjustable Torque Control
0.5–5Nm torque range for winding, unwinding and tension control applications.

Braking Control
Adjustable braking torque for tension control in film, paper, yarn, wire and other continuous materials.

Compact Design
Compact structure fits winding equipment and space-limited machinery.

24V DC Operation:
Designed for use with compatible tension controllers and control systems.

Up to 1800 RPM:
Maximum operating speed: 1800 RPM.

Specifications:
Series: PMB Series
Torque Range: 0.5–5Nm
Rated Voltage: 24V DC
Maximum Speed: Up to 1800 RPM
Main Function: Braking / Tension Control
Application: Winding / Unwinding Systems

Applications:
Wire and coil winding
Film, foil and tape handling
Textile and yarn equipment
Electronics winding equipment
Packaging and converting machinery
Small tension control systems

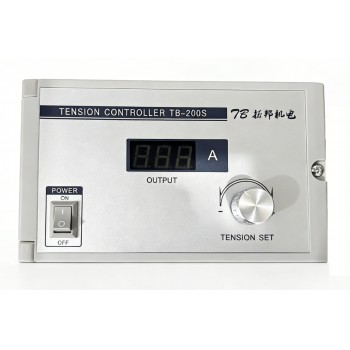

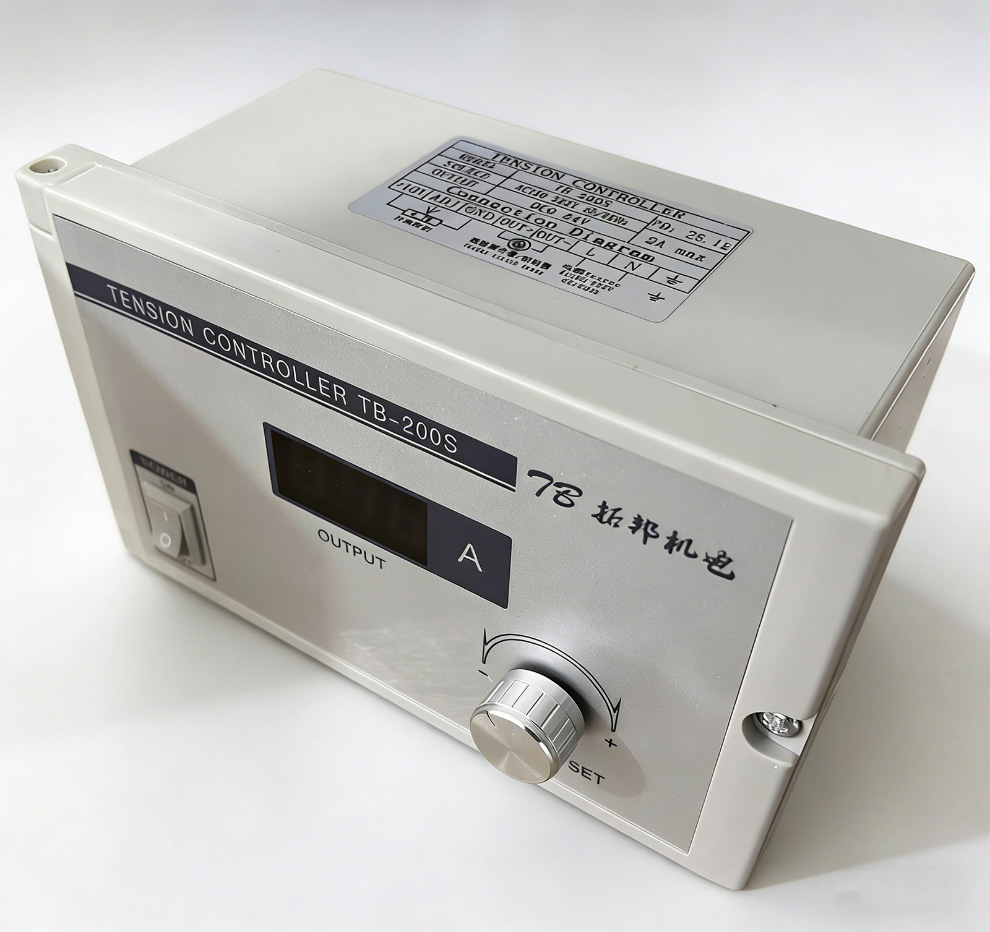

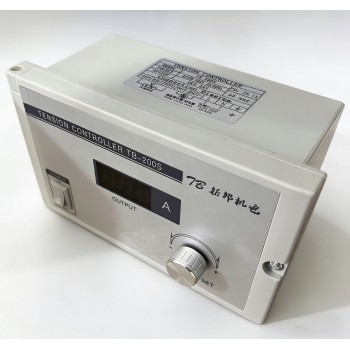

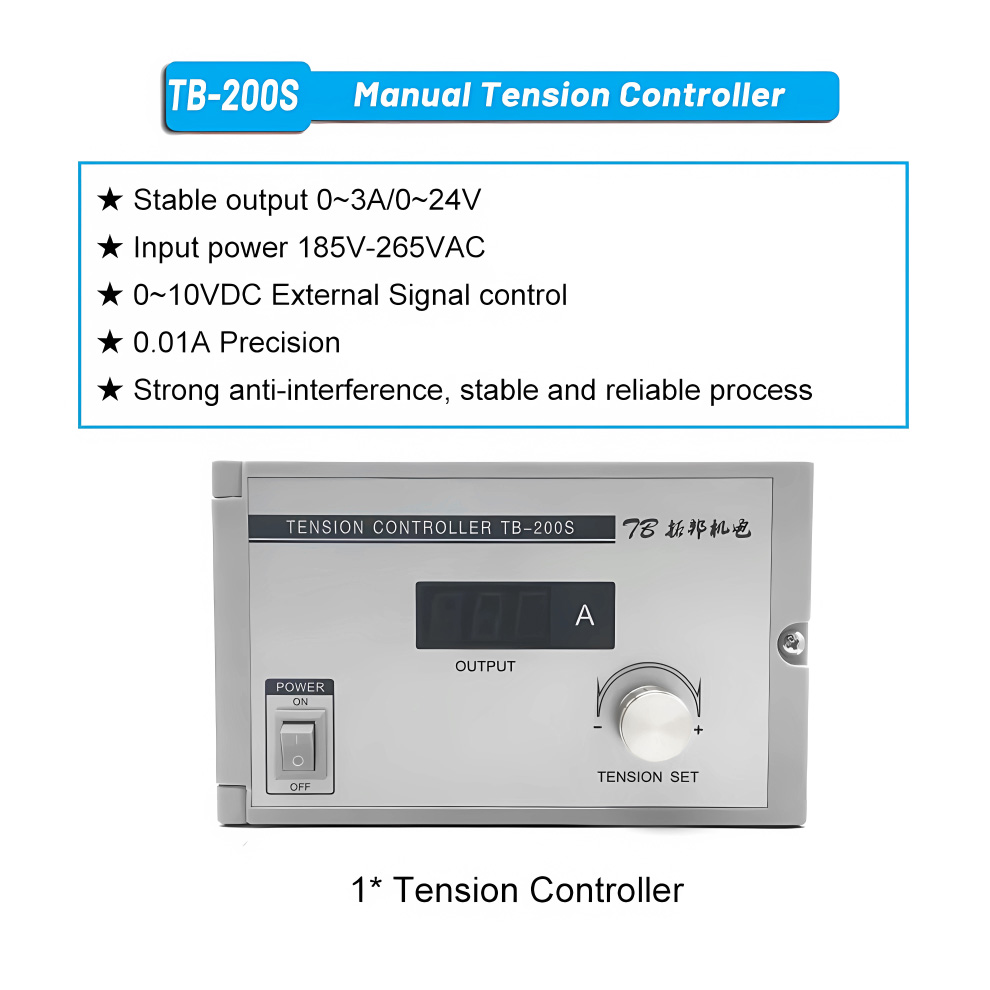

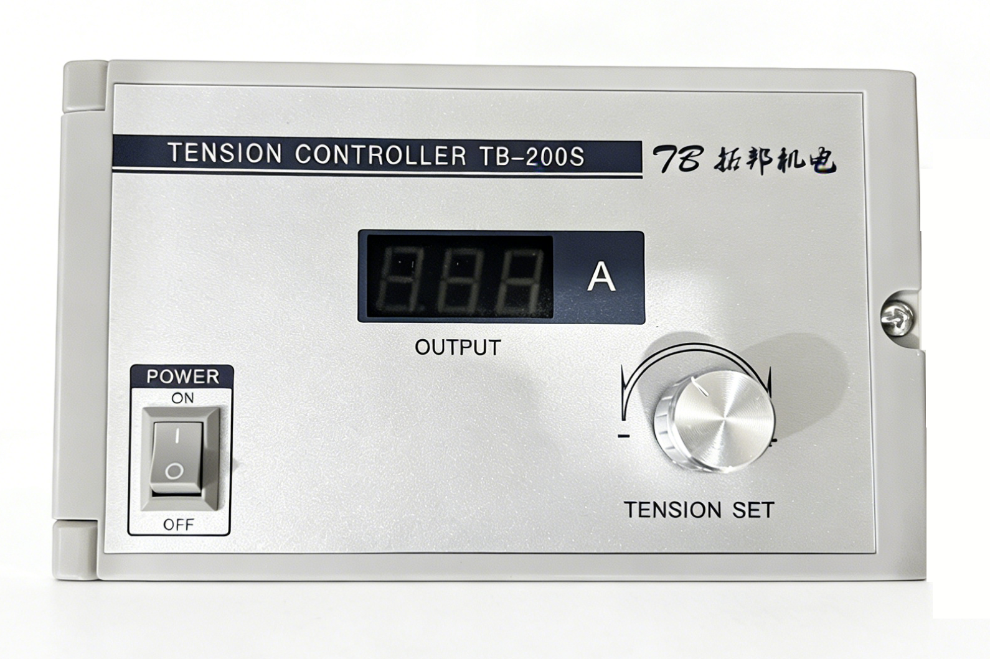

 TB-200S – Manual Tension Controller

Specifications：
Power Supply: 185–265V AC, 50/60Hz
Output Voltage: 0–24V DC
Output Current: 0–3A
External Control Signal: 0–10V DC
Precision: 0.01A
Control Methods: Manual / PLC / Potentiometer
Working Temperature: -10°C to 40°C
Overall Size: 160 × 100 × 70 mm
Mounting Size: 163 × 103 × 70 mm
Installation: Wall-mounted / Floor-mounted / Embedded;
