FZ-K Hollow Shaft Magnetic Particle Brake with KDT-B-1000 Fully Automatic Tension Controller Kit

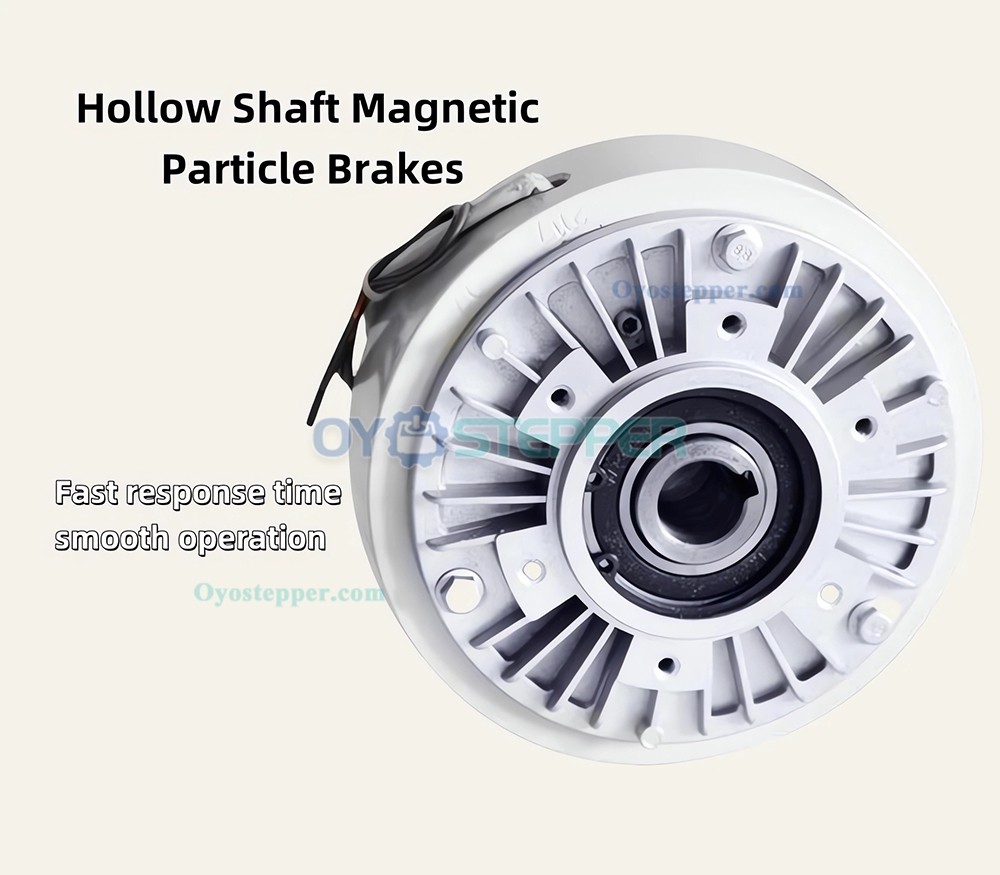

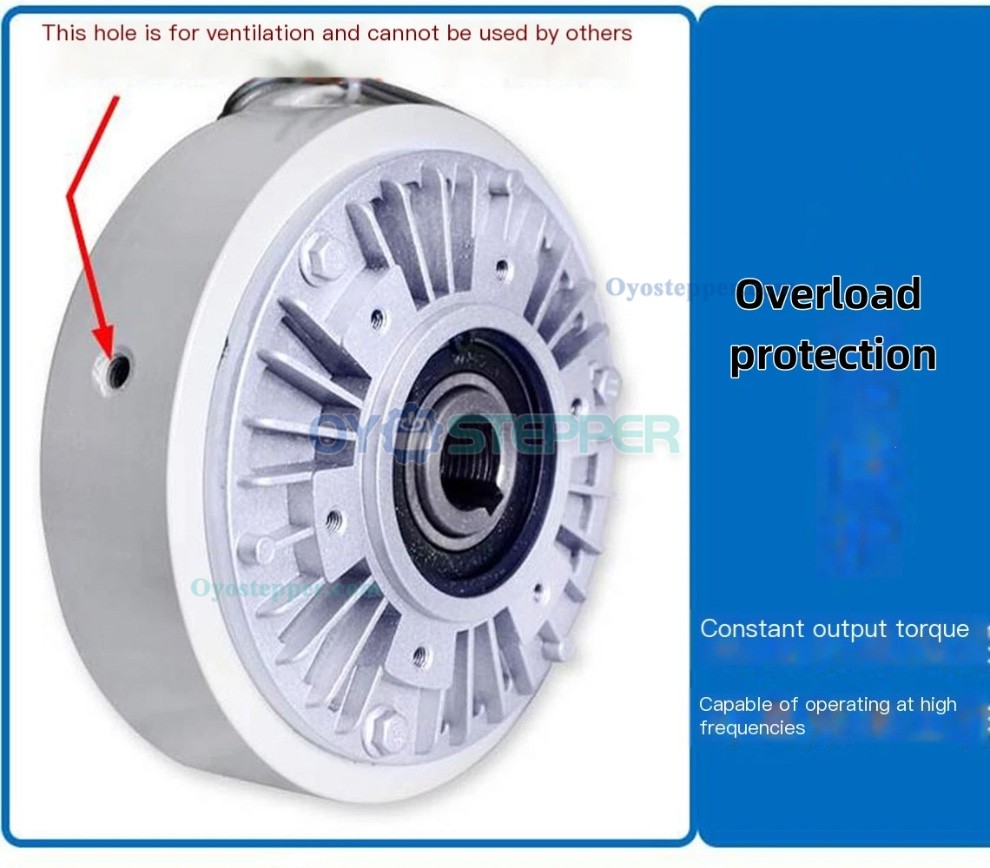

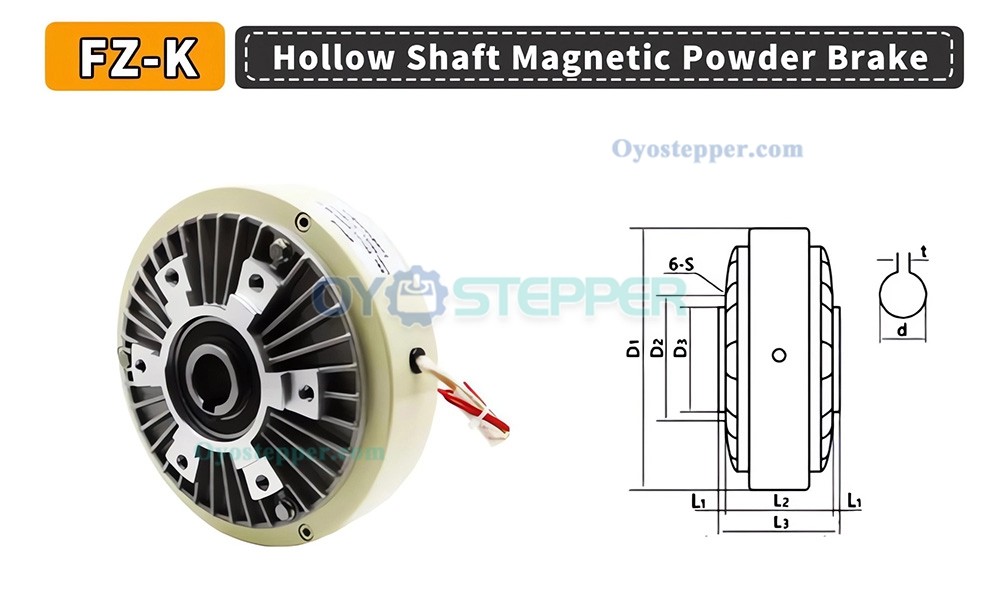

FZ-K Hollow Shaft Type Magnetic Powder Brake 6-200Nm 24V Magnetic Particle Brake

Features:

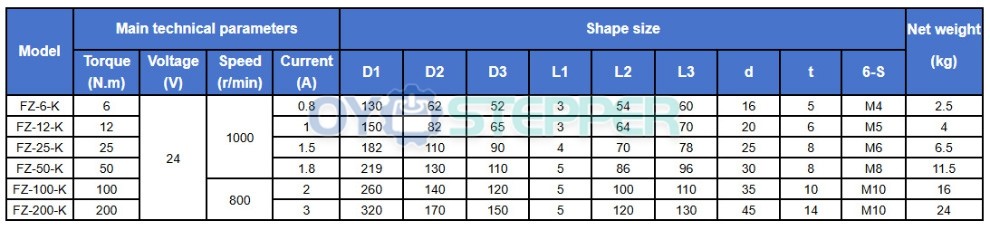

Adjustable torque range of 6-200N.m (0.6kg-20kg) .

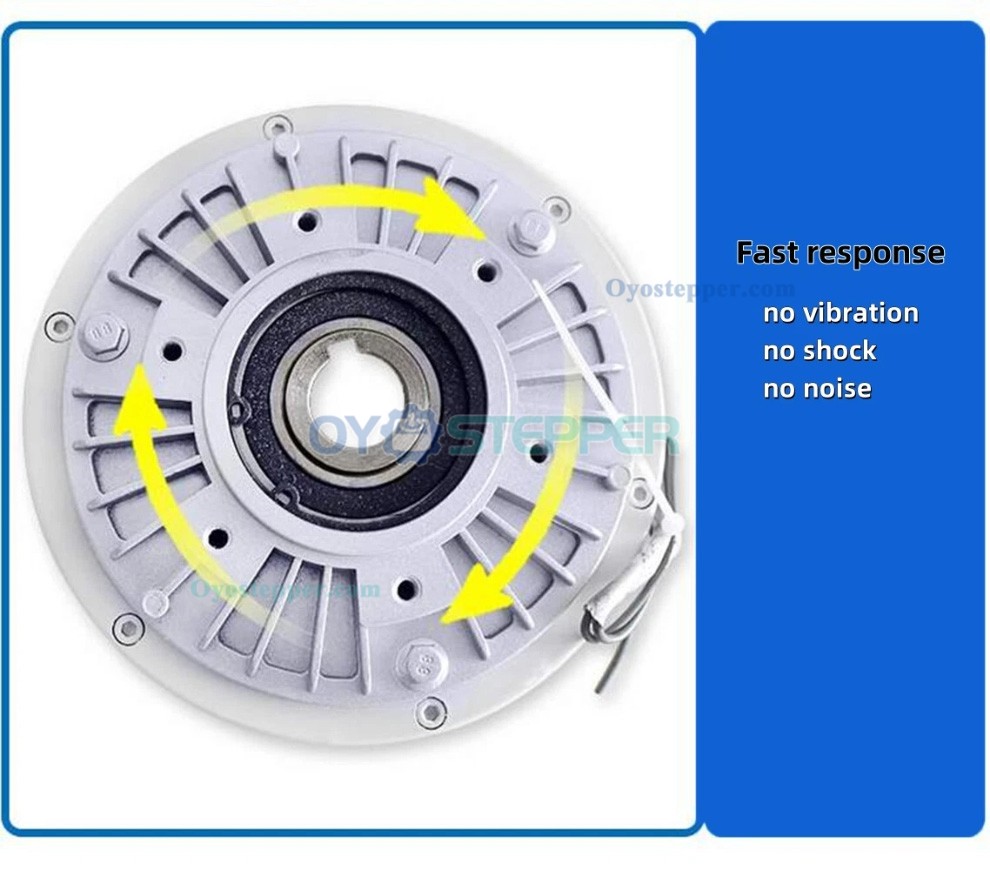

Millisecond-level response time for high-speed tensioning, winding, or overload protection. Industrial-grade alloy housing, operating temperature: -20°C to 80°C.

Sealed magnetic powder chamber designed to reduce maintenance requirements.

Works with 24VDC power supply and standard PLC/PWM control signals.

Overheat protection and fail-safe braking. Power consumption during activation.

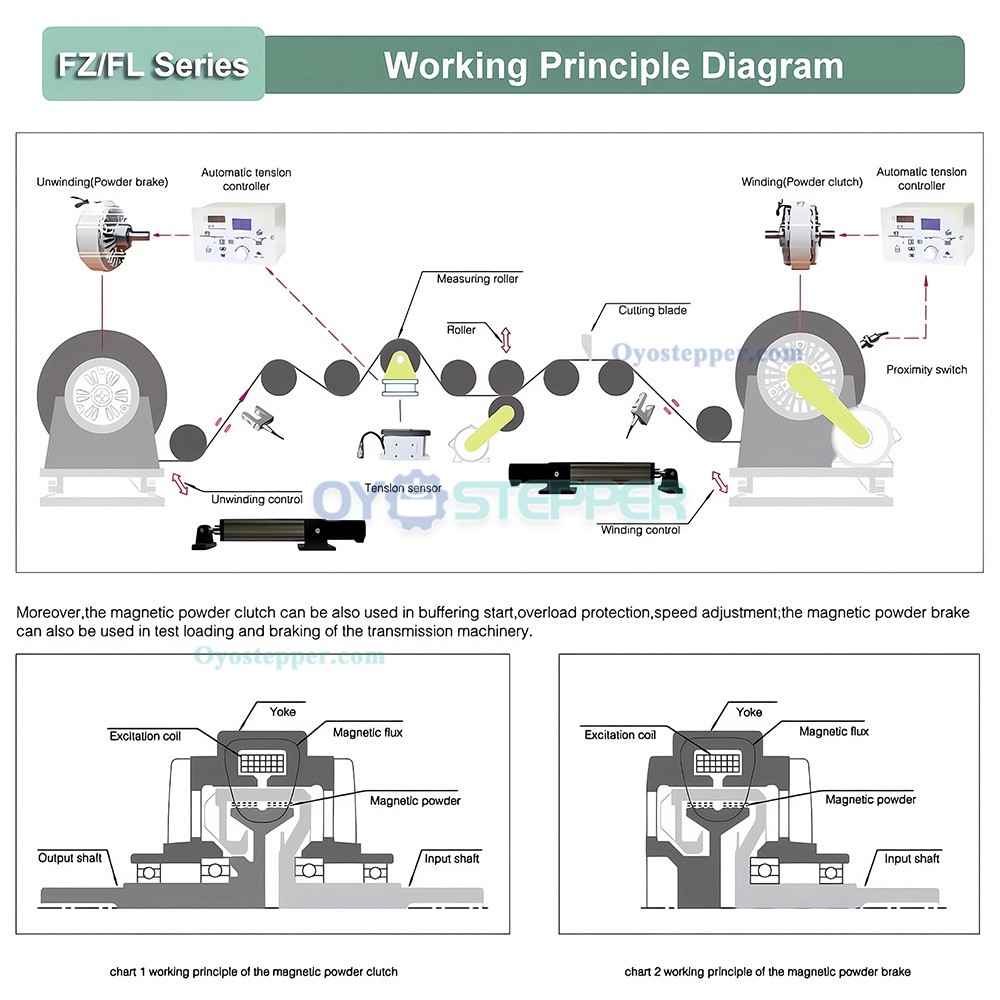

Application Fields:
Printing & Packaging: Tension control for roll-to-roll labelers, film winders, and sheeters.
Textile Machinery: Yarn winding, loom braking, and thread tension regulation.
Industrial Automation: Conveyor overload protection, robotic arm safety stops.
Testing Equipment: Dynamometers, torque calibration, and load simulation.
Film Production: Tensioning for coating, laminating, or slitting lines.

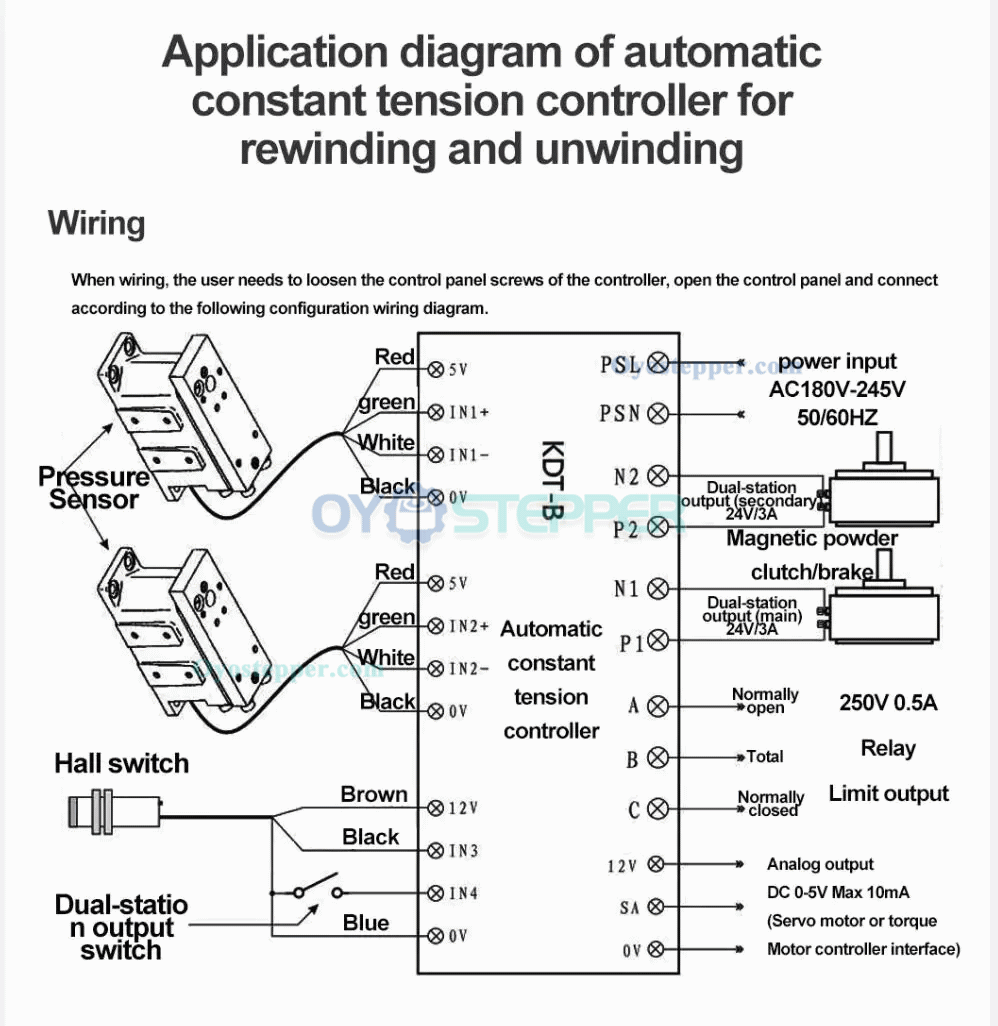

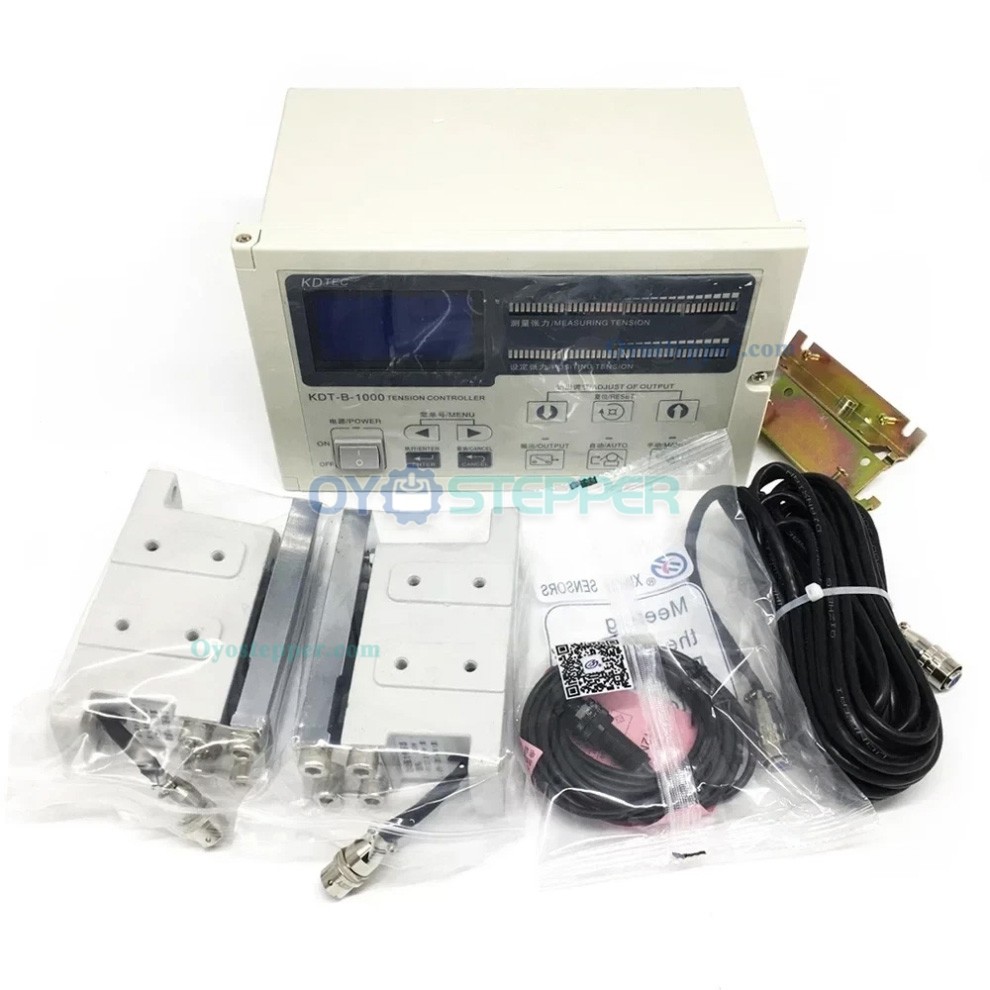

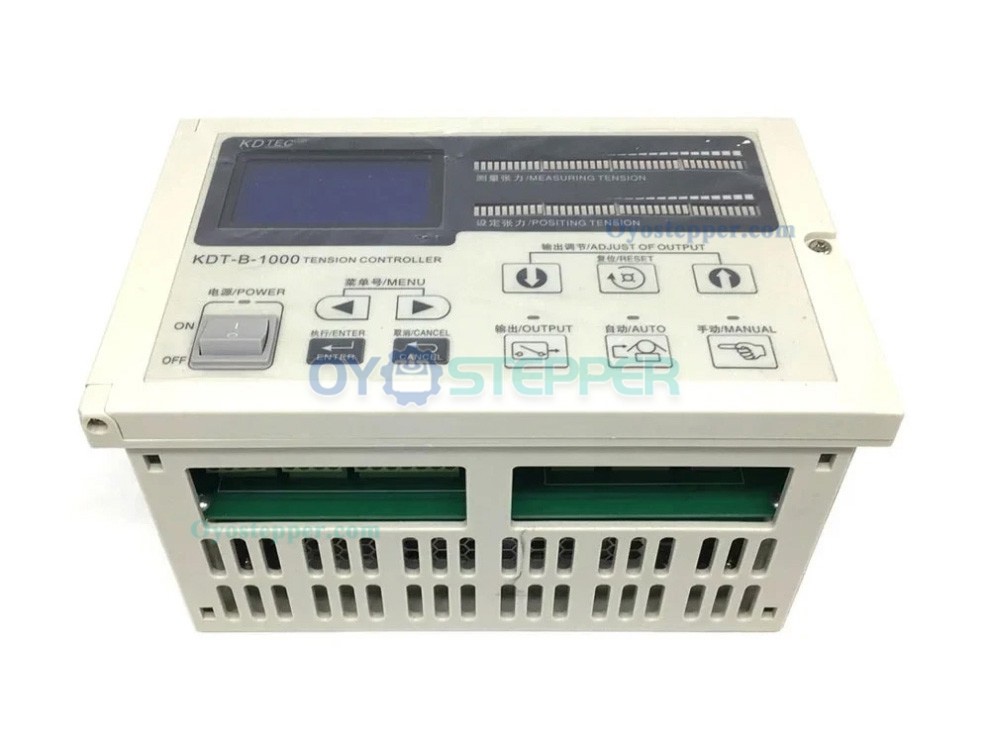

KDT-B-1000 Small Tension Controller Parameters:
Measuring range: 0-1000N
Measurement accuracy: less than 1N
Sampling speed: 100 milliseconds
Main output mode: DC 0-2A constant current output (adapted load impedance 8-12Ω)
Auxiliary output: DC 0-5V (MAX 10MA) analog signal output
Dimensions: 245 × 155 × 140 (mm) (width × height × depth)
Installation size: 230 × 150 × 120 (mm) (width × height × depth)
Power source: AC 180-245V 50/60Hz

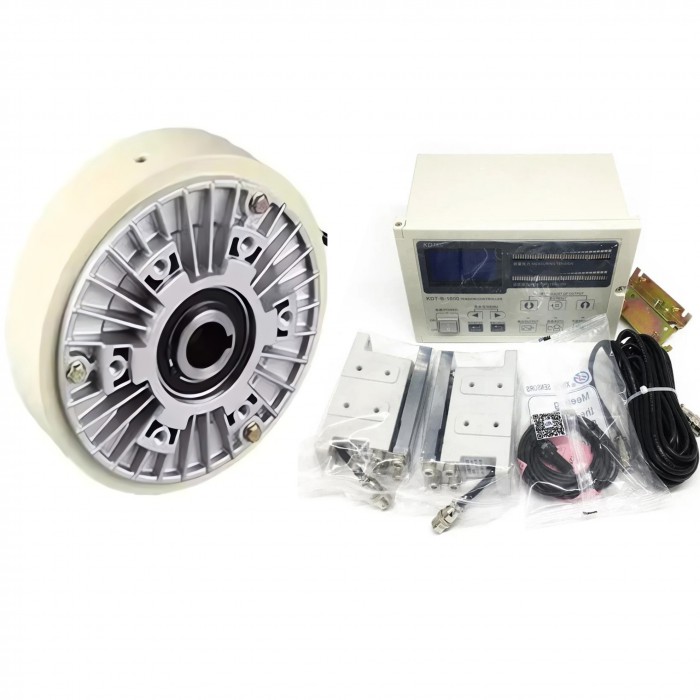

Tension Controller:
1X Magnetic Powder Brake
1X Fully automatic tension controller
1X Hall switch
2X Pressure Sensor
