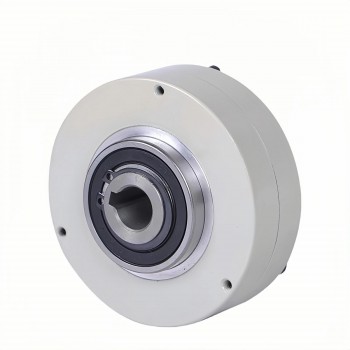

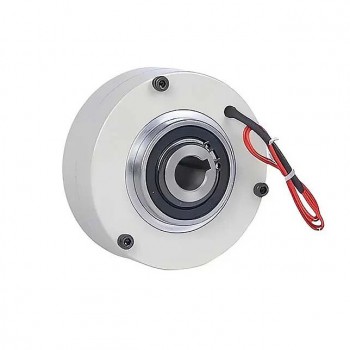

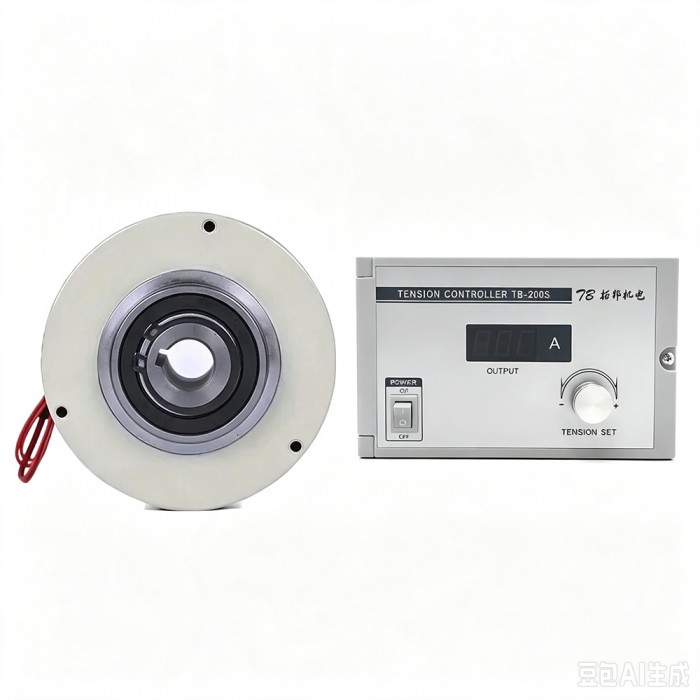

Magnetic Particle Brake Hollow Shaft 3-100Nm with Standard Manual Tension Controller Kit

The Mini Magnetic Particle Brake provides adjustable braking torque from 3Nm to 100Nm for winding, unwinding and tension control applications. It can be used in printing, packaging, textile, paper, wire and other industrial machinery.

Features:
Stepless Torque Control
3–100Nm adjustable torque via current regulation for winding and unwinding tension control.

Braking Control
Adjustable braking torque for film, paper, yarn, wire and other continuous materials.

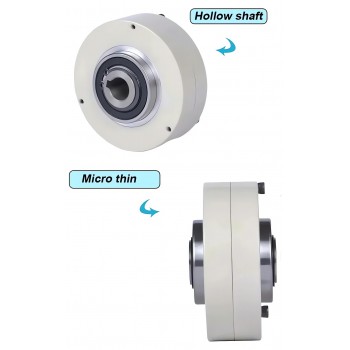

Hollow Shaft Design
Thin structure for integration into winding equipment and space-limited machinery.

24V DC Operation
Designed for use with compatible tension controllers and control systems.

Response Control
Torque output responds to changes in control current during operation.

Specifications:
Torque Range: 3–100Nm
Rated Voltage: 24V DC
Torque Adjustment: Stepless Current Control
Shaft Type: Hollow Shaft
Main Function: Braking / Tension Control
Application: Winding / Unwinding Systems

Applications
Printing and converting machinery
Film and paper winding systems
Textile and yarn equipment
Packaging machinery
Wire and cable winding
Roll-to-roll tension control

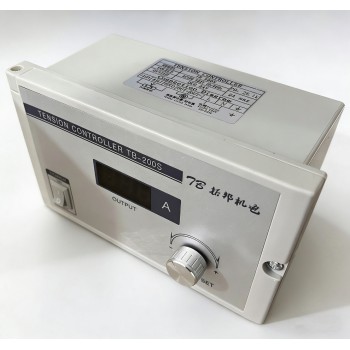

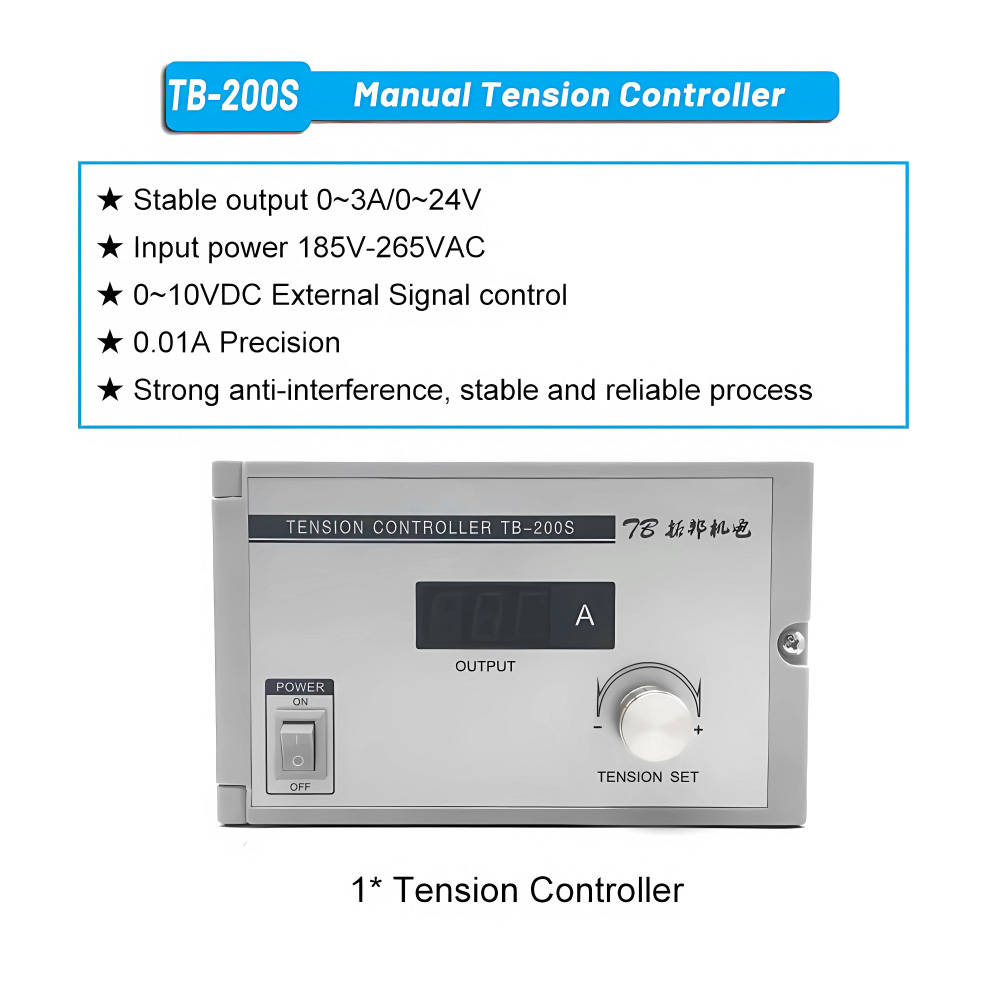

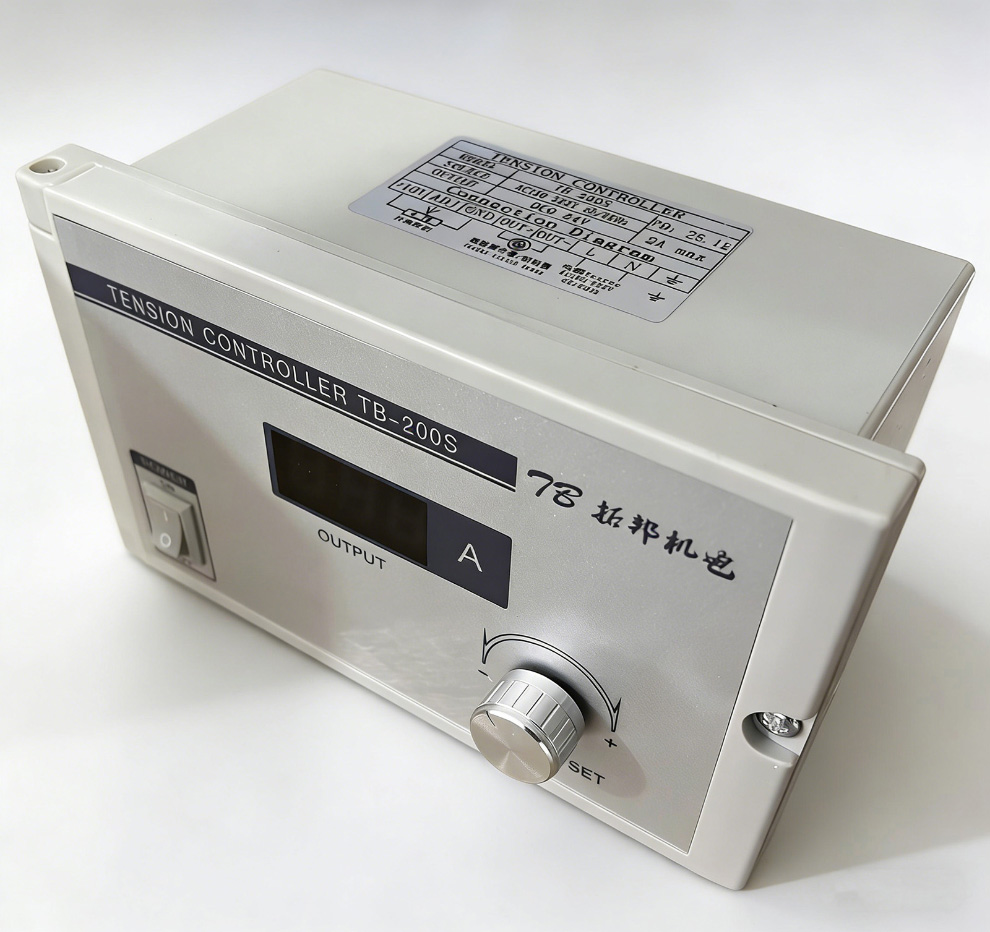

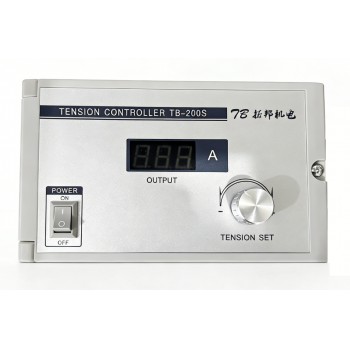

TB-200S Manual Tension Controller 0–24V DC 3A for Magnetic Particle Clutches and Brakes

Specifications：
Power Supply: 185–265V AC, 50/60Hz
Output Voltage: 0–24V DC
Output Current: 0–3A
External Control Signal: 0–10V DC
Precision: 0.01A
Control Methods: Manual / PLC / Potentiometer
Working Temperature: -10°C to 40°C

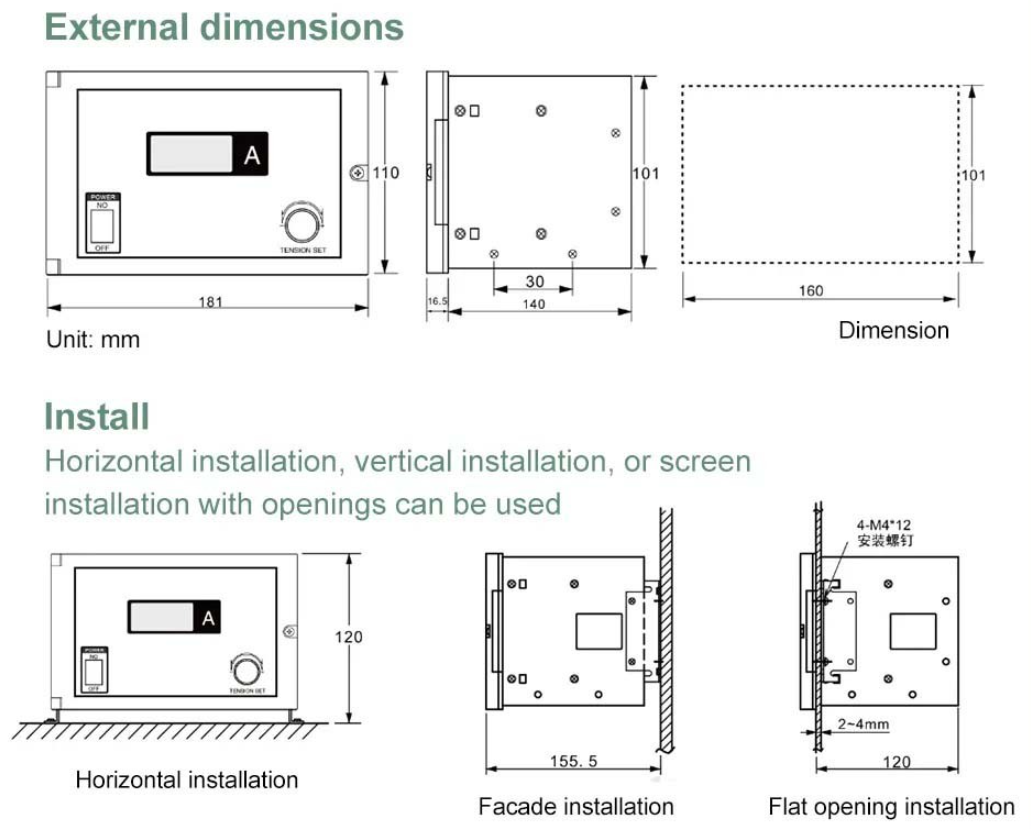

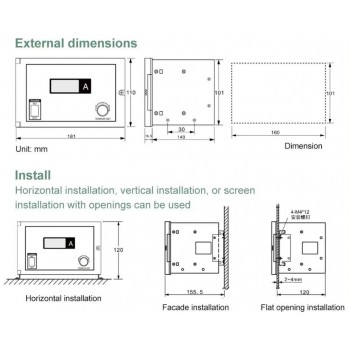

Overall Size: 160 × 100 × 70 mm
Mounting Size: 163 × 103 × 70 mm

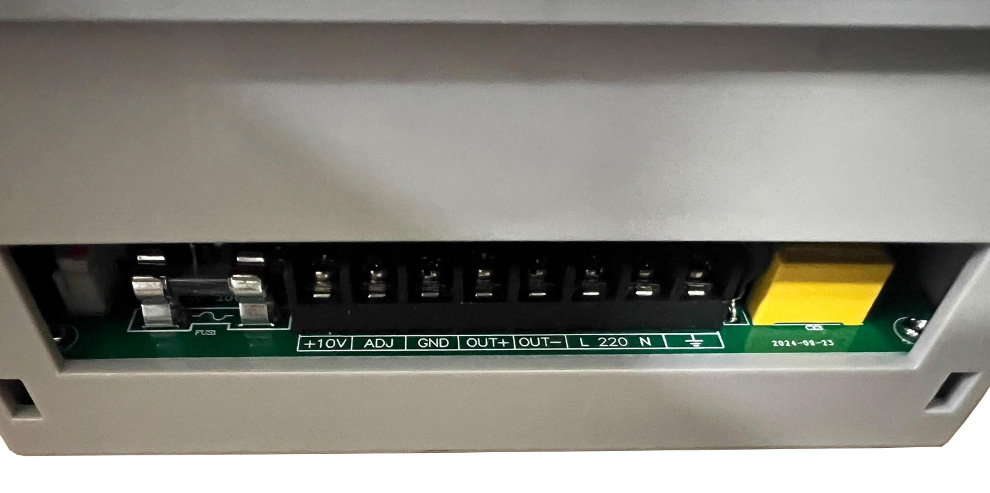

Installation: Wall-mounted / Floor-mounted / Embedded;
