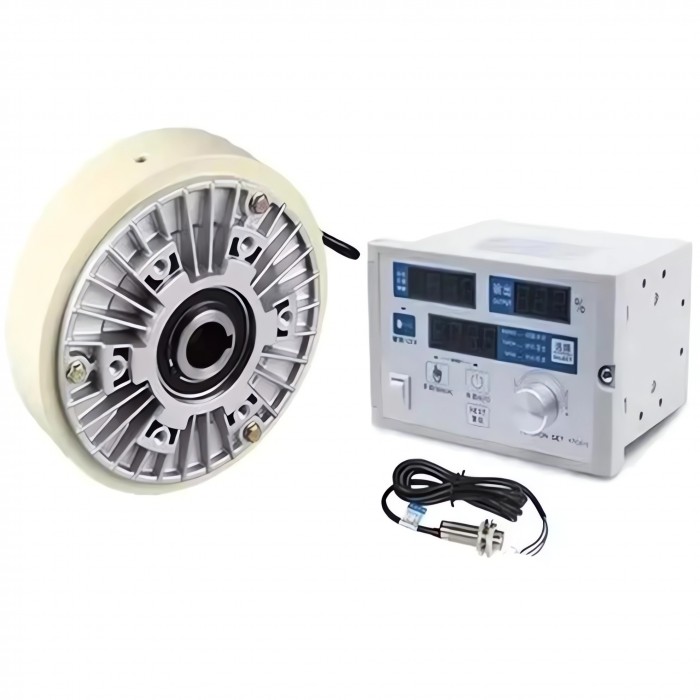

FZ-K Hollow Shaft Magnetic Particle Brake with KC-812 Automatic Tension Controller(with Hall Sensor) Kit

FZ-K Hollow Shaft Type Magnetic Powder Brake 6-200Nm 24V Magnetic Particle Brake

Features:

Adjustable torque range of 6-200N.m (0.6kg-20kg) with linear response for braking.

Millisecond-level response time for high-speed tensioning, winding, or overload protection. Industrial-grade alloy housing, operating temperature: -20°C to 80°C.

Sealed magnetic powder chamber designed to reduce maintenance requirements.

Works with 24VDC power supply and standard PLC/PWM control signals.

Overheat protection and fail-safe braking. Power consumption during activation.

Application Fields:
Printing & Packaging: Tension control for roll-to-roll labelers, film winders, and sheeters.
Textile Machinery: Yarn winding, loom braking, and thread tension regulation.
Industrial Automation: Conveyor overload protection, robotic arm safety stops.
Testing Equipment: Dynamometers, torque calibration, and load simulation.
Film Production: Tensioning for coating, laminating, or slitting lines.

KTC-812 Small Tension Controller Parameters:
Power Supply: 185V-265VAC 50/60Hz
Out Voltage: 0~24VDC
Output current:0-4A
External Signal control: 0~10VDC
Precision:0.01A
Type: Manual controller / PLC / Potentiometer
Working Temperature: -10~40 degree centigrade;

Parameter characteristics:
Manual/automatic operation
Encoder or Hall switch can be connected
It can store the parameters of 9 different materials
Constant tension/taper tension control
Output 0 - 2 4 V/4 A, automatic overcurrent protection
All parameters and states of the automatic memory system
Adjustable magnetic powder brake/clutch torque compensation;

2X Pressure Sensor
