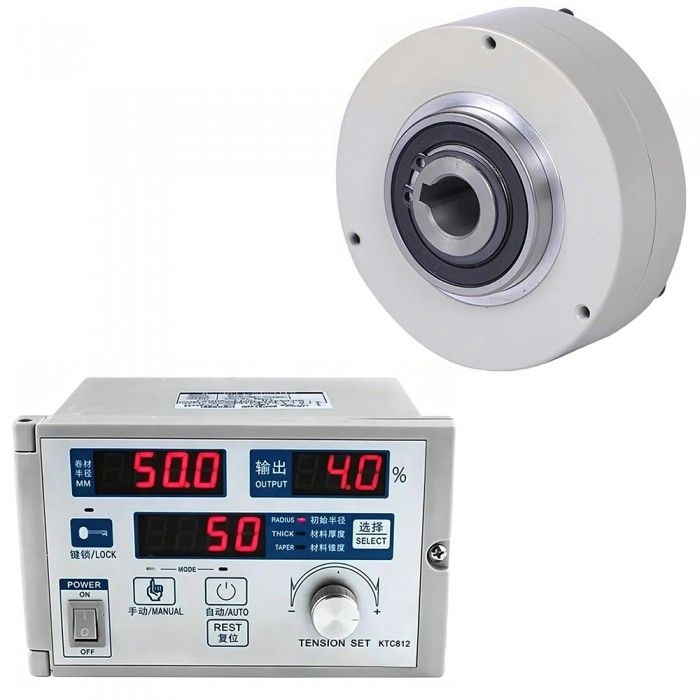

Magnetic Particle Brake Hollow Shaft 3-100Nm with Semi-automatic Tension Controller Kit

Magnetic Particle Brake Hollow Shaft 3-100Nm with Semi-automatic Tension Controller Kit

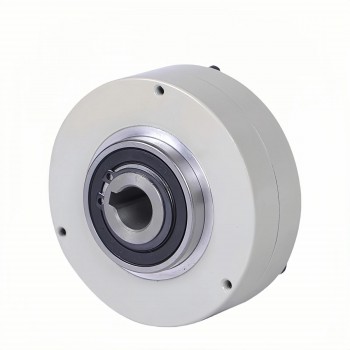

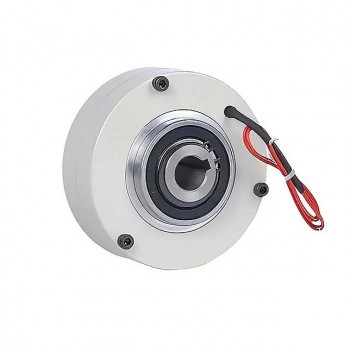

The Mini Magnetic Particle Brake provides adjustable braking torque from 3Nm to 100Nm for winding, unwinding and tension control applications. It can be used in printing, packaging, textile, paper, wire and other industrial machinery.

Features:
Stepless Torque Control
3–100Nm adjustable torque via current regulation for winding and unwinding tension control.

Braking Control
Adjustable braking torque for film, paper, yarn, wire and other continuous materials.

Hollow Shaft Design
Thin structure for integration into winding equipment and space-limited machinery.

24V DC Operation
Designed for use with compatible tension controllers and control systems.

Response Control
Torque output responds to changes in control current during operation.

Specifications:
Torque Range: 3–100Nm
Rated Voltage: 24V DC
Torque Adjustment: Stepless Current Control
Shaft Type: Hollow Shaft
Main Function: Braking / Tension Control
Application: Winding / Unwinding Systems

Applications
Printing and converting machinery
Film and paper winding systems
Textile and yarn equipment
Packaging machinery
Wire and cable winding
Roll-to-roll tension control

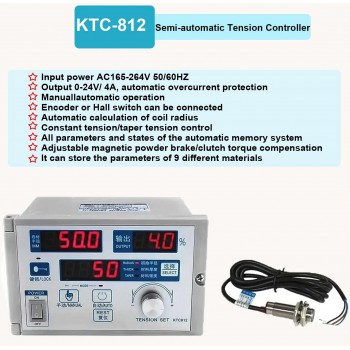

KTC-812 Small Tension Controller Parameters:
Power Supply: 185V-265VAC 50/60Hz
Out Voltage: 0~24VDC
Output current:0-4A
External Signal control: 0~10VDC
Precision:0.01A
Type: Manual controller / PLC / Potentiometer
Working Temperature: -10~40 degree centigrade;

Parameter characteristics:
Manual/automatic operation
Encoder or Hall switch can be connected
It can store the parameters of 9 different materials
Constant tension/taper tension control
Output 0 - 2 4 V/4 A, automatic overcurrent protection
All parameters and states of the automatic memory system
Adjustable magnetic powder brake/clutch torque compensation;

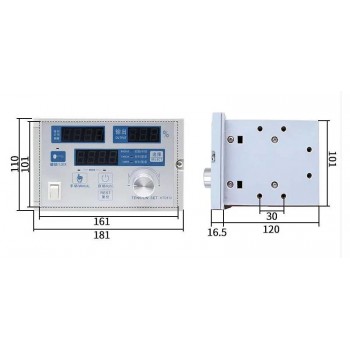

Size Chart Details:
