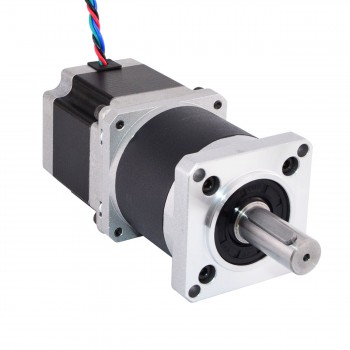

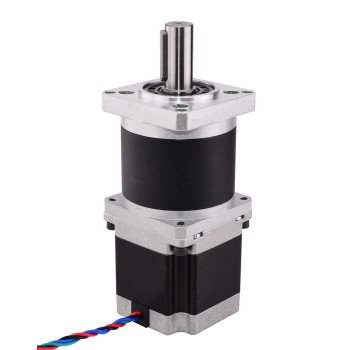

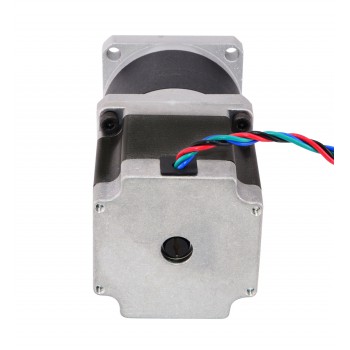

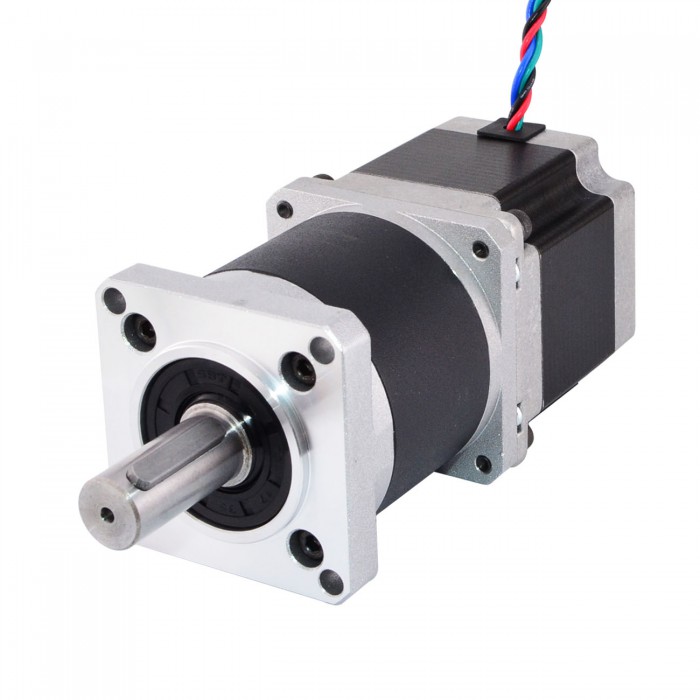

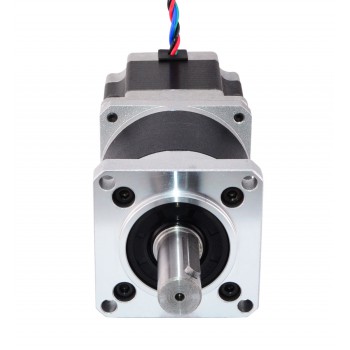

Nema 23 Stepper Motor L=56mm 103Ncm 0.36deg 2.8A 2.5V with 5:1 Planetary Gearbox
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till October 15th, 2024
- Note:No coupon code needed, please place order directly!
This Nema 23 stepper motor with 55mm body and 2.8A rated current, integrated with a 54mm Planetary gearbox of 5:1 gear ratio.
Electrical Specification
Manufacturer Part Number: 23HS22-2804S-HG5
Motor Type: Bipolar Stepper
Step Angle: 0.36 deg
Holding Torque without Gearbox: 103Ncm(146oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 0.9ohms
Voltage: 2.5V
Inductance: 2.8mH ± 20%(1KHz)
Gearbox Specifications
Gearbox Type: Planetary
Gear Ratio: 5 : 1
Efficiency: 95%
Backlash at No-load: <=15 arcmin
Max. Permissible Torque: 6Nm(849.7oz.in)
Moment Permissible Torque: 12Nm(1699oz.in)
Max. Radial Load: 400N
Ambient Temperature: -10 - 90℃
Insulation Class: B
Noise: <=50 dB
Life: 20000 h
Physical Specifications
Frame Size: 57 x 57mm
Motor Length: 55mm
Gearbox Length: 54mm
Shaft Diameter: Φ14mm
Shaft Length: 34mm
Key-way Length: 25mm
Number of Leads: 4
Lead Length: 320mm
Weight: 1500g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 23HS22-2804S-HG5.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Gearbox Specification | |
|---|---|
| Backlash at No-load(Max.°) | 0.25 |
| Efficiency | 95% |
| Gear Ratio | 5:1 |
| Gearbox Length(mm) | 54 |
| Gearbox Type | Planetary |
| Max. Permissible Torque(Ncm) | 600 |
| Max. Permissible Torque(oz.in) | 849.7 |
| Moment Permissible Torque(Ncm) | 1699.3 |
| Shaft Maximum Radial Load(N) | 400 |
| Motor Specification | |
| Inductance(mH) | 2.8 |
| Lead Length(mm) | 320 |
| Motor Nema Size | Nema 23 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 0.9 |
| Rated Current (A) | 2.8 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 34 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 103 |
| Holding Torque w/o Gearbox(oz.in) | 145.86 |
| Motor Length(mm) | 55 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | Key-way |
