Nema 23 Stepper Motor L=56mm 103Ncm 0.18 deg 2.8A 2.5V with 10:1 Planetary Gearbox

Nema 23 Stepper Motor L=56mm 103Ncm 0.18 deg 2.8A 2.5V with 10:1 Planetary Gearbox
NO.:23HS22-2804S-HG10
Post a review
Special Offer in October 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till October 15th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$83.69
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $79.51 5%
10 $77.83 7%
50 $75.32 10%
100 $72.81 13%
Add To Cart

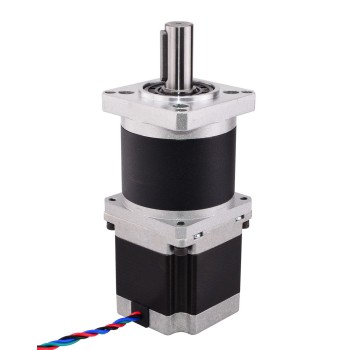

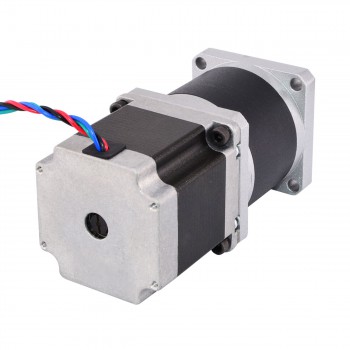

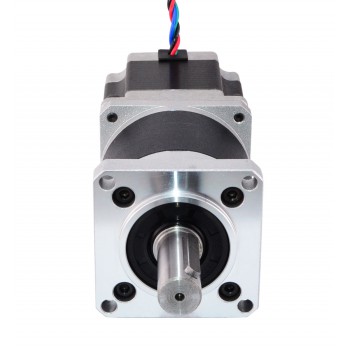

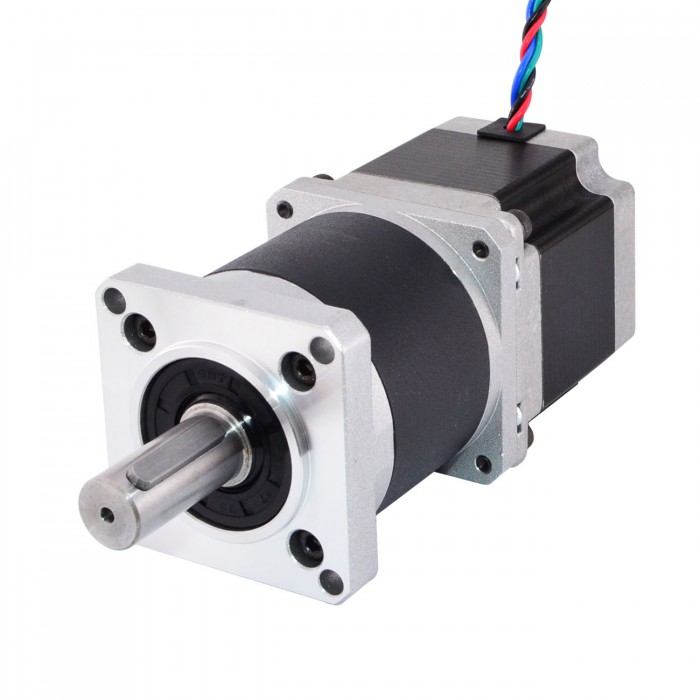

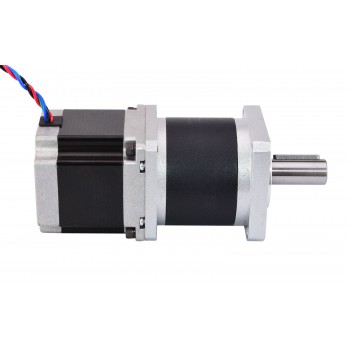

This Nema 23 stepper motor with 55mm body and 2.8A rated current, integrated with a 54mm Planetary gearbox of 10:1 gear ratio.



Electrical Specification

Manufacturer Part Number: 23HS22-2804S-HG10

Motor Type: Bipolar Stepper

Step Angle: 0.18 deg

Holding Torque without Gearbox: 103Ncm(146oz.in)

Rated Current/phase: 2.8A

Phase Resistance: 0.9ohms

Voltage: 2.5V

Inductance: 2.8mH ± 20%(1KHz)



Gearbox Specifications

Gearbox Type: Planetary

Gear Ratio: 10 : 1

Efficiency: 95%

Backlash at No-load: <=15 arcmin

Max. Permissible Torque: 6Nm(849.7oz.in)

Moment Permissible Torque: 12Nm(1699oz.in)

Max. Radial Load: 400N

Ambient Temperature: -10 - 90℃

Insulation Class: B

Noise: <=50 dB

Life: 20000 h



Physical Specifications

Frame Size: 57 x 57mm

Motor Length: 55mm

Gearbox Length: 54mm

Shaft Diameter: Φ14mm

Shaft Length: 34mm

Key-way Length: 25mm

Number of Leads: 4

Lead Length: 320mm

Weight: 1500g



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Full Datasheet: 23HS22-2804S-HG10.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Stepper Motor L=56mm 103Ncm 0.36deg 2.8A 2.5V with 5:1 Planetary Gearbox
Next: Nema 23 Stepper Motor L=56mm 103Ncm 2.8A 0.12 deg 2.5V with 15:1Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 0.25
Efficiency 95%
Gear Ratio 10:1
Gearbox Length(mm) 54
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 600
Max. Permissible Torque(oz.in) 849.7
Moment Permissible Torque(Ncm) 1699.3
Shaft Maximum Radial Load(N) 400
Motor Specification
Inductance(mH) 2.8
Lead Length(mm) 320
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 0.9
Rated Current (A) 2.8
Shaft Diameter(mm) 14
Shaft Length(mm) 34
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 103
Holding Torque w/o Gearbox(oz.in) 145.86
Motor Length(mm) 55
Single Shaft/Dual Shaft Single Shaft
Shaft Type Key-way
Physical Specification
Weight(g) 1500
