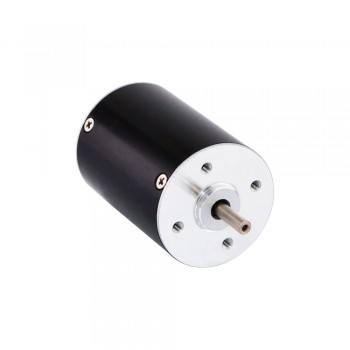

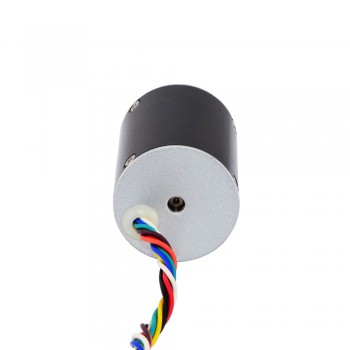

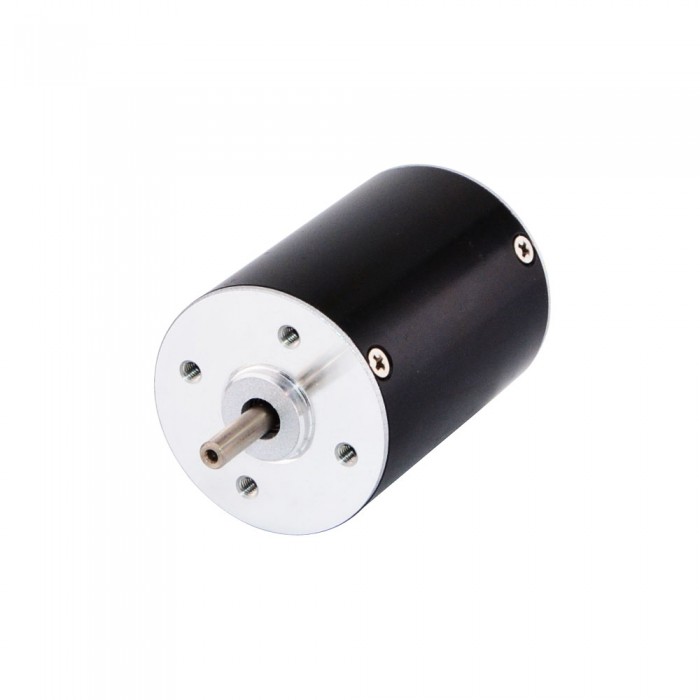

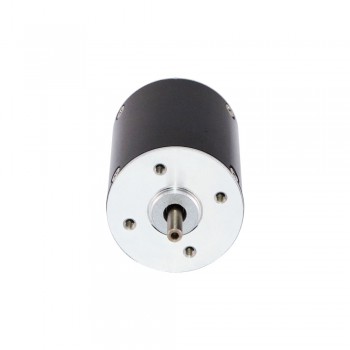

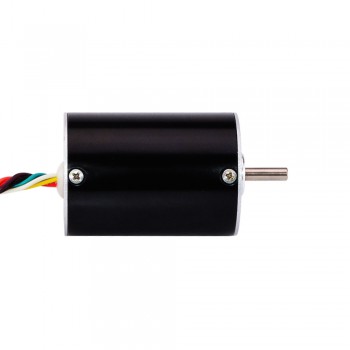

24V BLDC Motor 5000RPM 0.029Nm 15W 0.98A Round Ф36x50mm 36BLR Brushless DC Motor
This 36BLR50-24-01 is a 24V, 3-phase, 4-pole BLDC motor with Hall sensors that delivers 15W at 5000 RPM and 0.029 N·m torque in a Φ36×50.2 mm frame with a Φ4×15 mm shaft and NMB C3 ball bearings.
Electrical Specification
Manufacturer Part Number: 36BLR50-24-01
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 5000±10%RPM
Noload Speed: 7400RPM
Rated Torque: 0.029Nm(4.11oz.in)
Rated Current: 0.98±10%A
Noload Current: 0.18A
Rated Power: 15W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute
Physical Specification
Frame Size: Φ36mm
Body Length: 50.2mm
Shaft Diameter: Φ4mm
Shaft Length: 15mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Sensor: Hall Sensor
Weight: 0.25kg
Connection
| U | V | W | +5V | GND | A | B | C |
| ORG | GRN | BRW | RED | BLK | YEL | WHT | BLU |
| BLDC Motor Specification | |
|---|---|
| Bearing Type | NMB Ball Bearing, C3 |
| Insulation Class | Class B |
| No. of Lead | 8 |
| No. of Phases | 3 |
| No. of Poles | 4 |
| Rated Current(A) | 0.98 |
| Rated Power(W) | 15 |
| Rated Speed(rpm) | 5000±10% |
| Rated Torque(Nm) | 0.029 |
| Rated Torque(oz.in) | 4.11 |
| Rated Voltage(V) | 24 |
| Sensor Type | Hall Sensor |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 15 |
| Flange Size(mm) | Ф36 |
| Body Length(mm) | 50.2 |
| Physical Specification | |
| Weight(g) | 250 |
