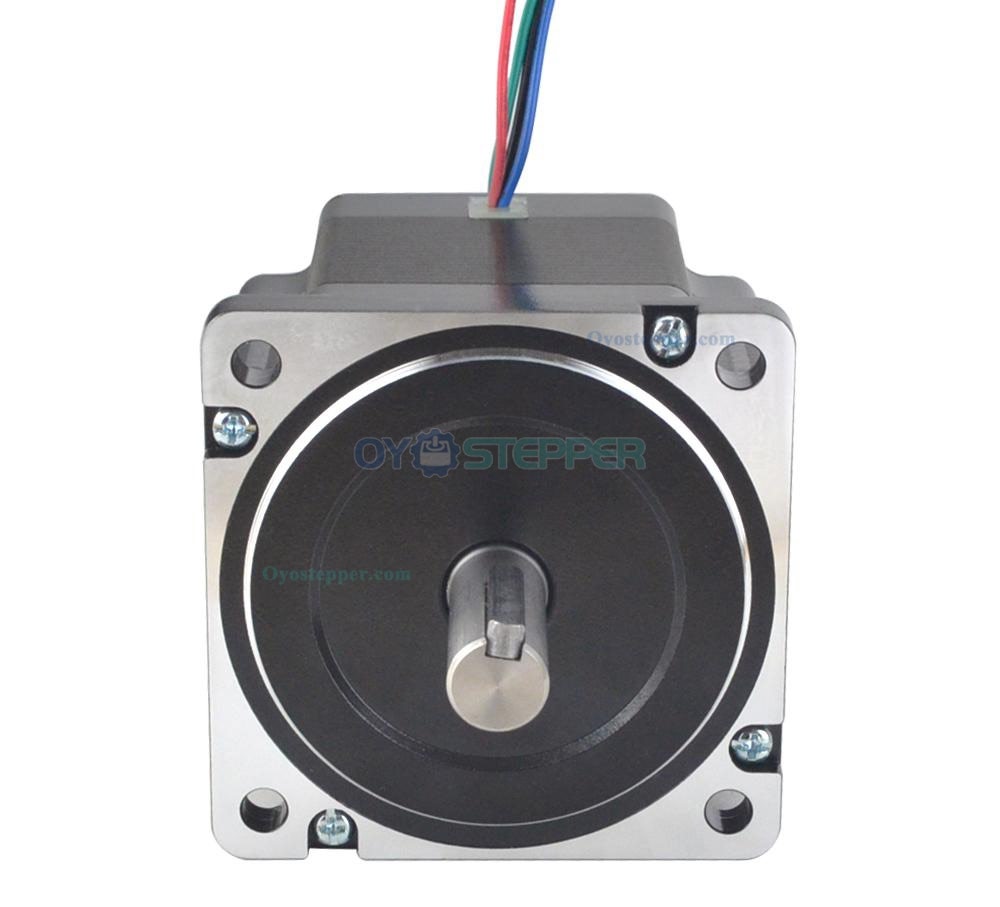

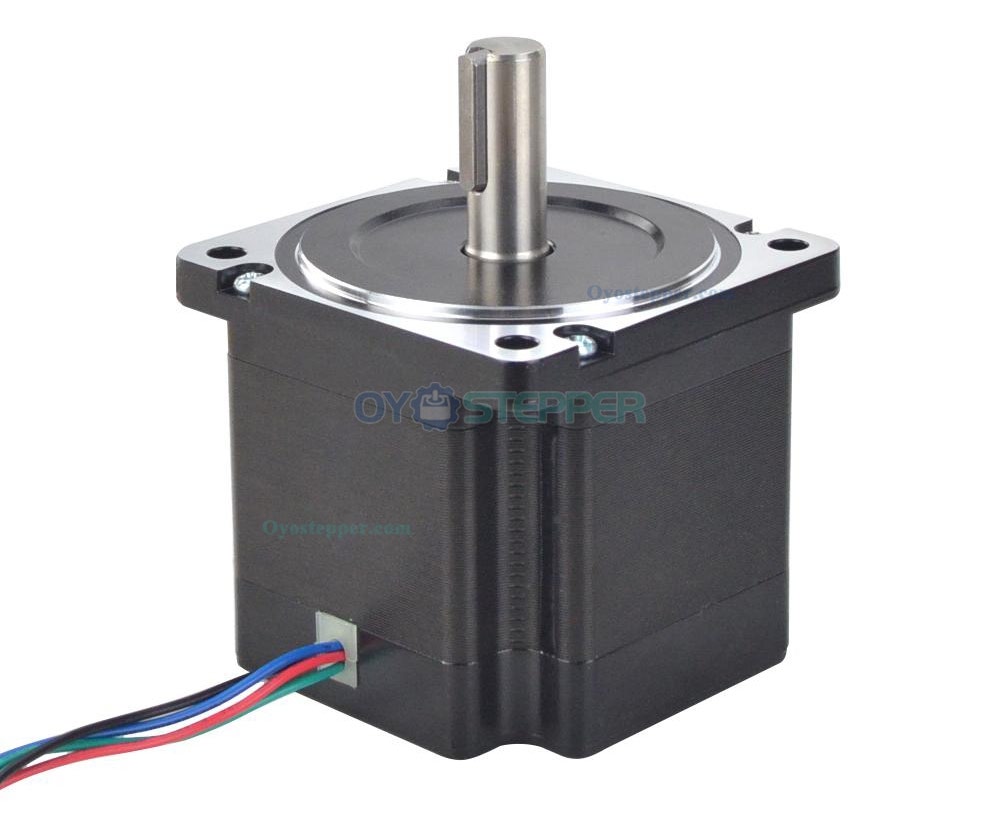

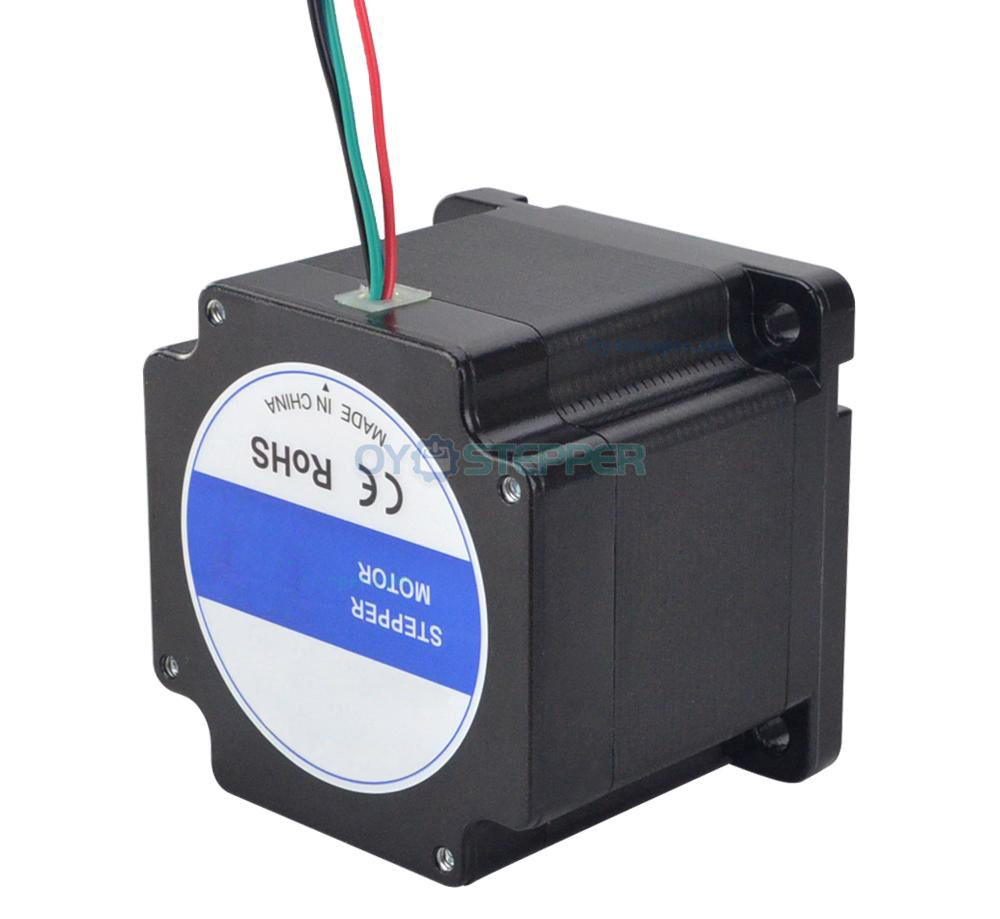

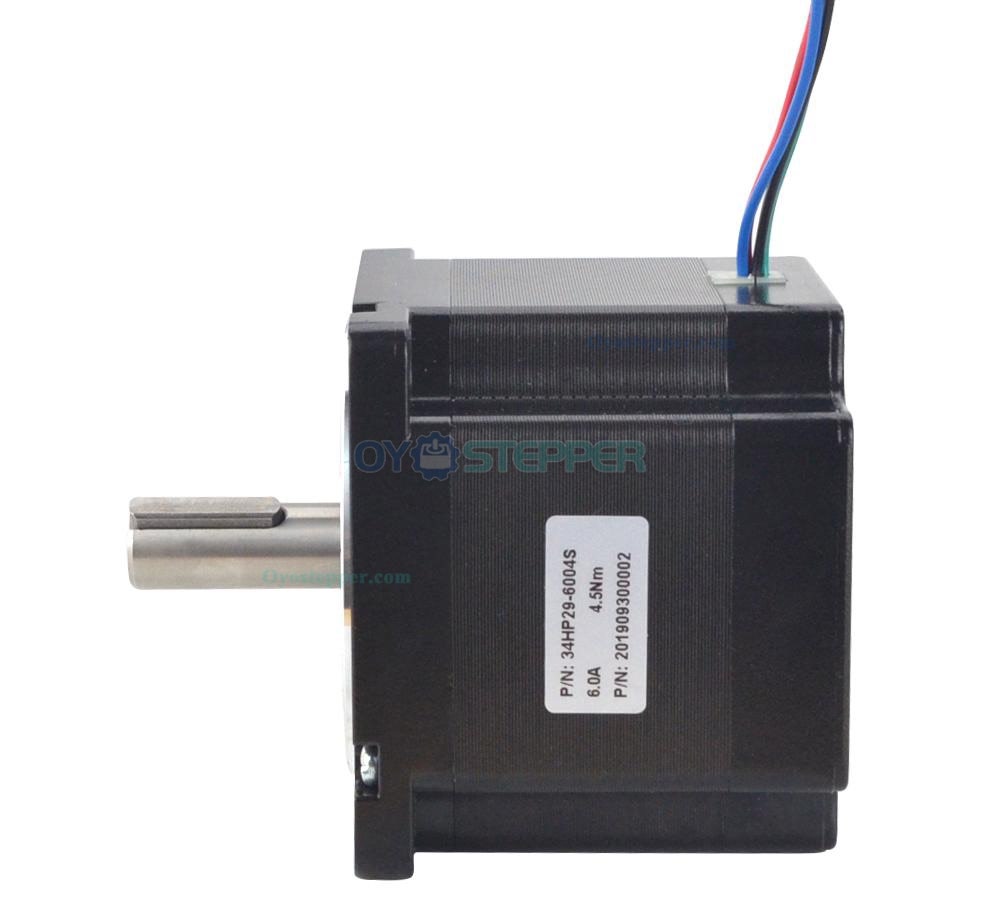

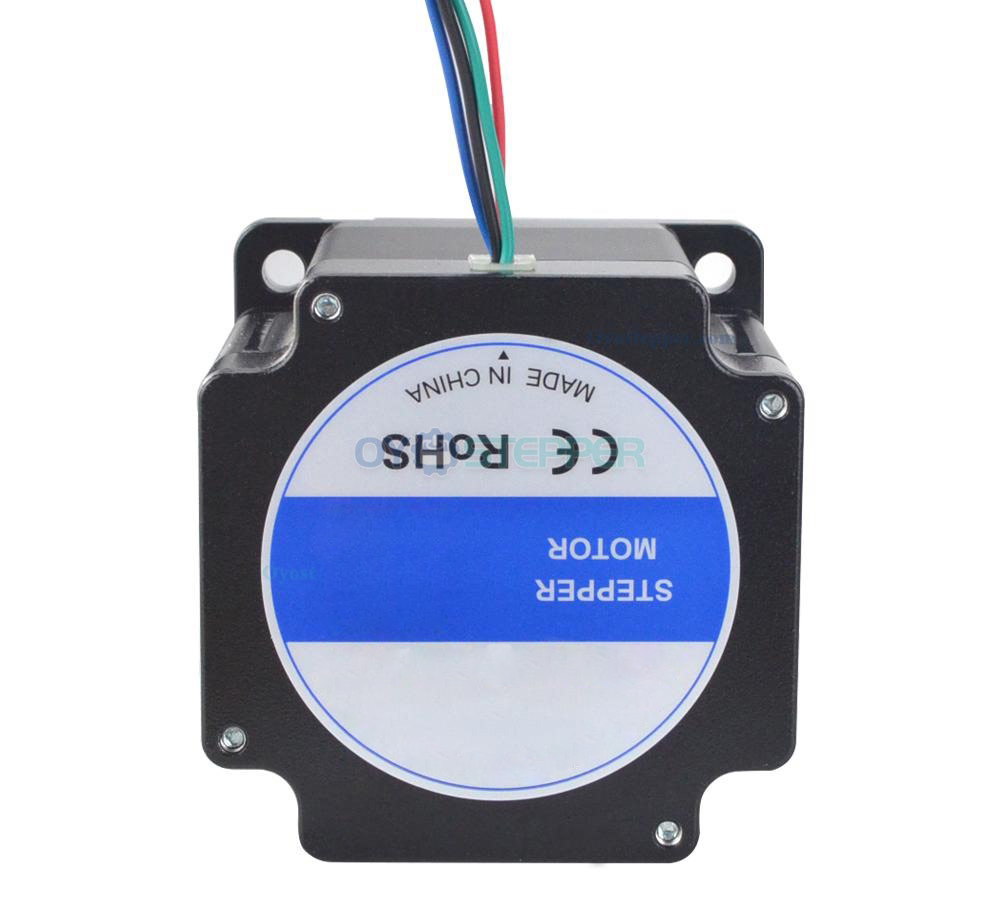

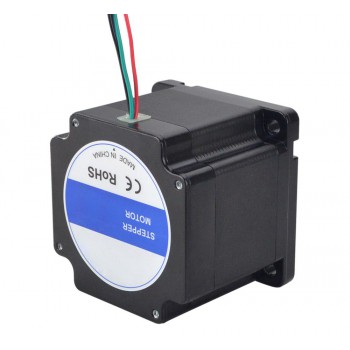

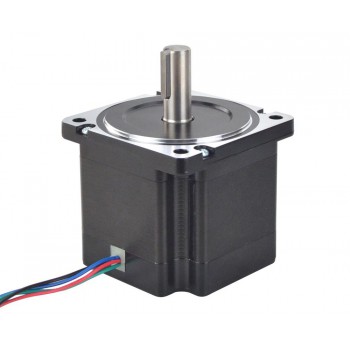

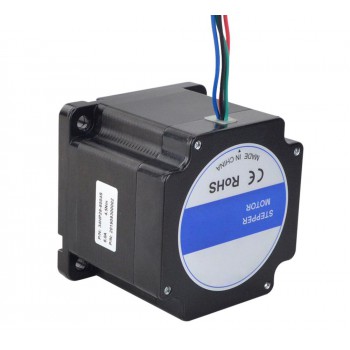

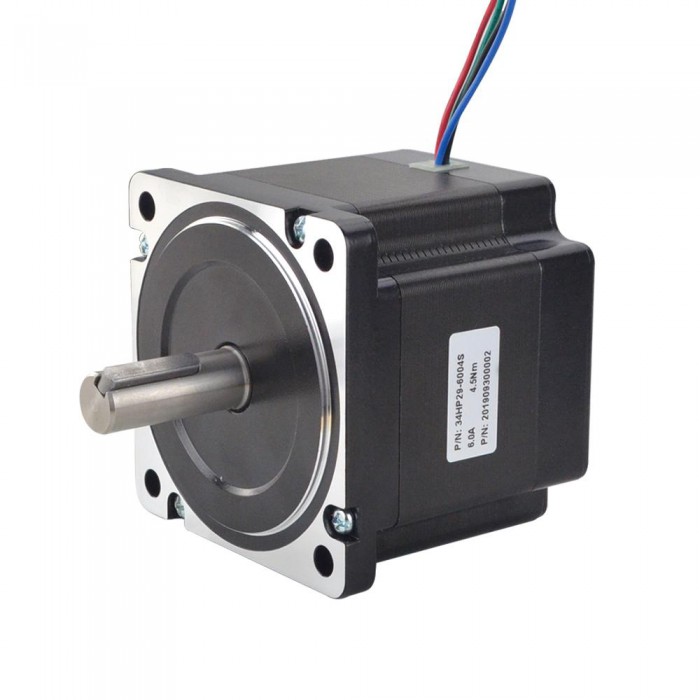

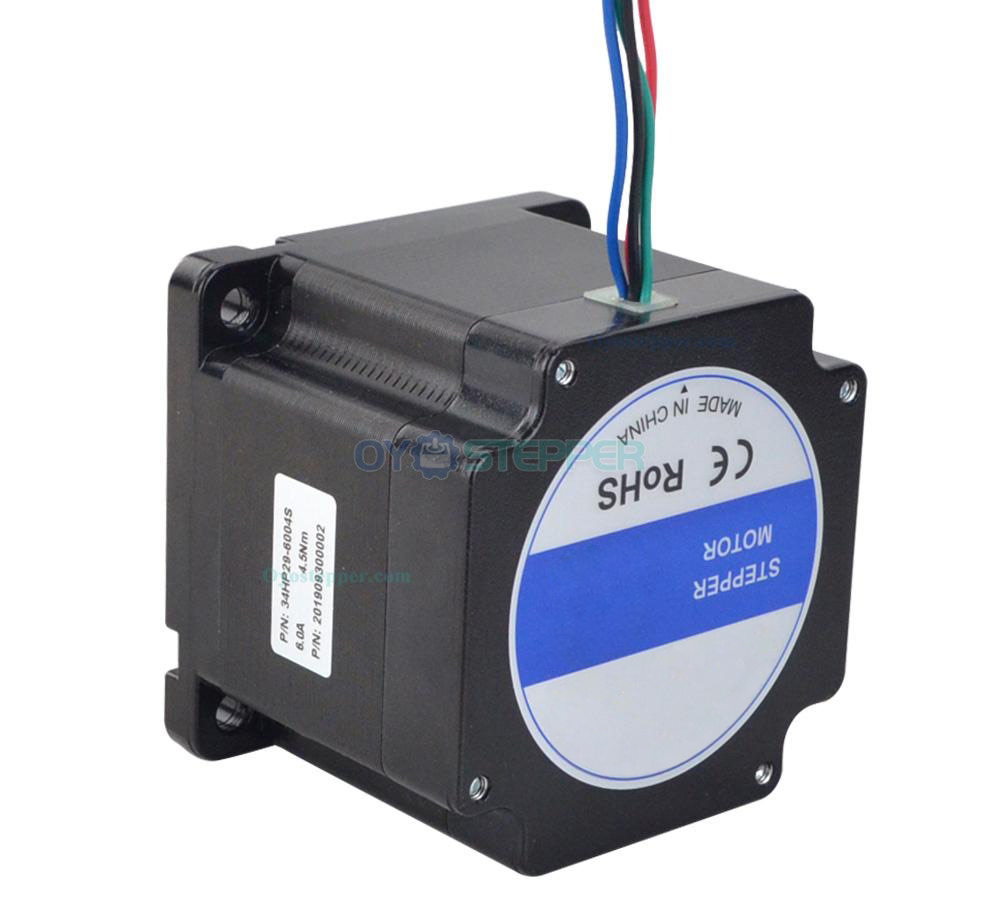

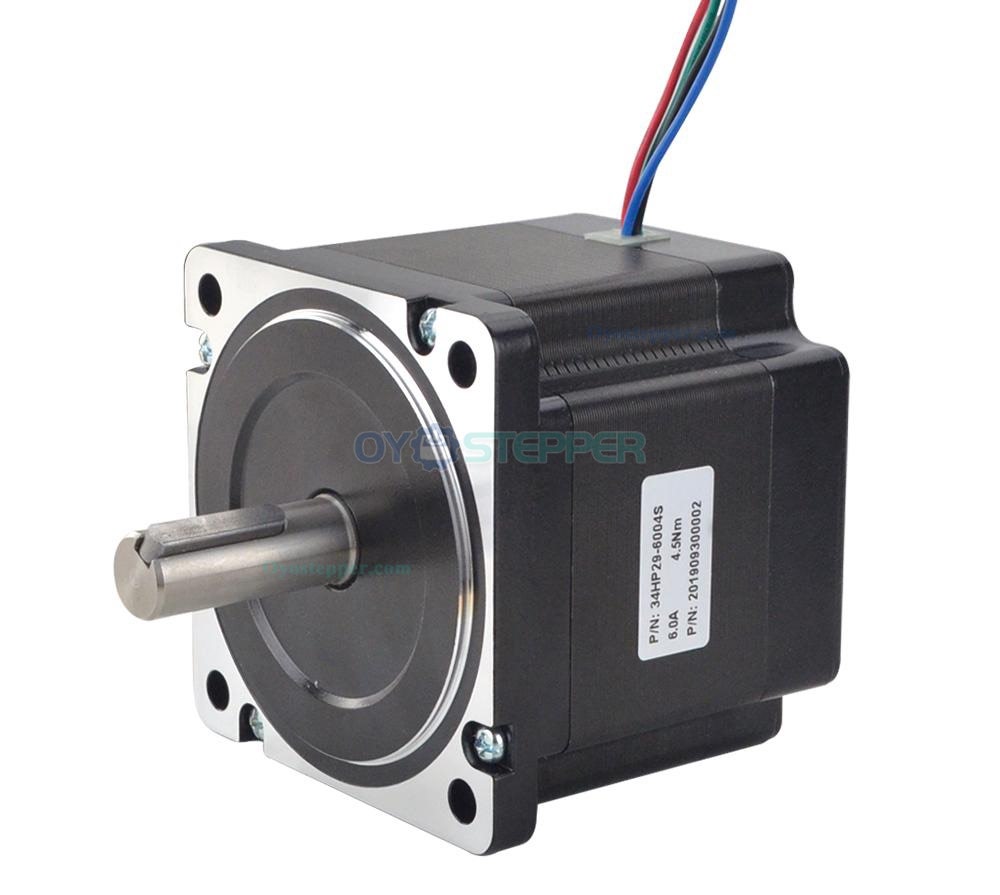

Nema 34 Stepper Motor Bipolar 1.8 Degree 4.5 Nm(637.38oz.in) 6.0A 2 Phase 4 Wires Keyway Shaft
Special Offer in April 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till April 30th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$52.16
Electrical Specification
- Manufacturer Part Number: 34HP29-6004S
- Number Of Phase: 2
- Step Angle: 1.8 deg
- Holding Torque: 4.5 Nm(637.38oz.in)
- Rated Current/phase: 6.0 A
- Phase Resistance: 0.34 ohms± 10%
- Inductance: 2.5 mH ± 20%(1KHz)
Physical Specification
- Frame Size: 86 x 86 mm
- Body Length: 74 mm
- Shaft Diameter: Φ14 mm
- Shaft Length: 37 mm
- Keyway Shaft Length: 25 mm
- Number of Leads: 4
- Lead Length: 500 mm
- Weight: 2.15 kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
BLK
|
GRN
|
RED
|
BLU
|
Resources
- Full Datasheet: 34HP29-6004S.pdf
- Torque Curve: 34HP29-6004S Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Holding Torque (Ncm) | 450 |
| Holding Torque (oz.in) | 637.38 |
| Inductance(mH) | 2.5 |
| Phase Resistance(ohm) | 0.34 |
| Rated Current (A) | 6.0 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 74 |
| Frame Size(mm) | 86 x 86 |
| Lead Length(mm) | 500 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Shaft Type | Keyway |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 2150 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
