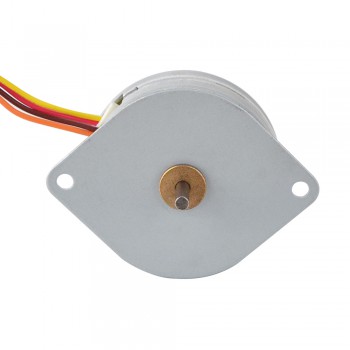

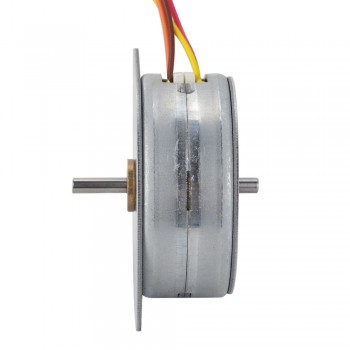

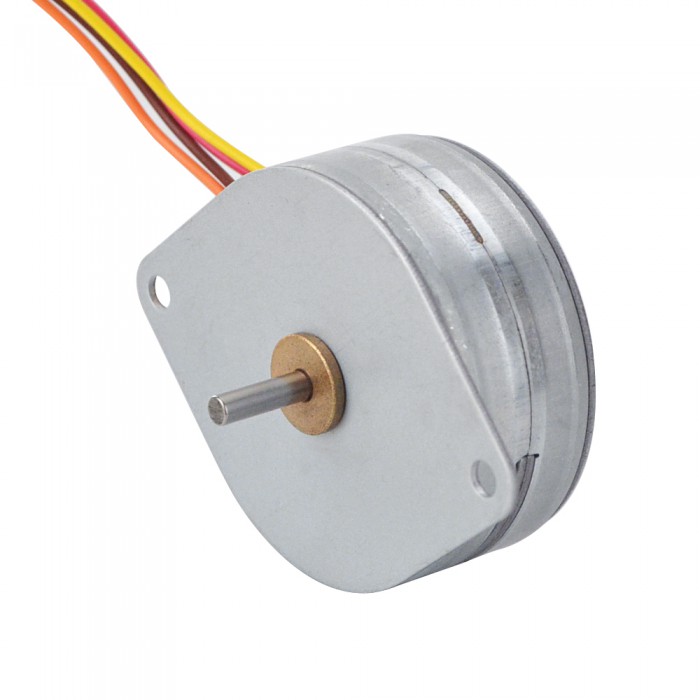

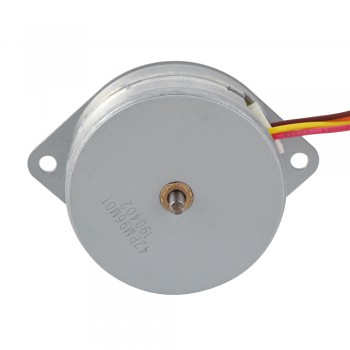

PM Rotary Stepper Motor 3.75 Deg 49mN.m (6.94oz.in) 0.42A 4 Wires Φ42x18mm Permanent Magnet Stepper Motor
This 42mm PM stepper runs at 0.42A/phase and puts out 49mNm holding torque. 3.75° step angle, 4-pin connector, 103.5g. Solid little motor.
Electrical Specification
Manufacturer Part Number: 42PM96M01
Motor Type: PM Stepper
Phase: 2
Step Angle: 3.75 deg
Rated Current/phase: 0.42 A
Holding Torque: 49 mN.m(6.94oz.in)
Detent Torque: 10.78 mN.m(2.521 oz.in)
Phase Resistance: 12 ± 7% ohms(20 ℃)
Inductance: 12 mH ± 20%(1KHz)
Rotor Inertia: Less than 9.6 g.cm2
Life: 3000h MIN(20 ℃,200 pps)
Physical Specification
Frame Size: Φ42 mm
Body Length: 18 mm
Shaft Diameter: Φ3 mm
Shaft Length: 12 mm
Number of Leads: 4 with connector PAP-04V-S
Lead Length: 85 mm
Weight: 103.5 g

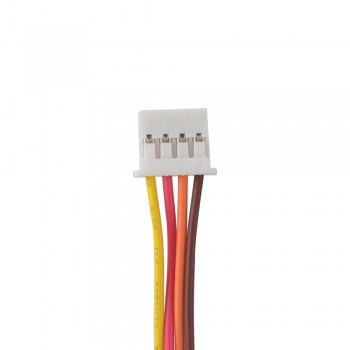

Connection
|
A+
|
A-
|
B+
|
B-
|
|
Brown
|
Orange
|
Yellow
|
Red
|
| Electrical Specification | |
|---|---|
| Holding Torque (oz.in) | 6.94 |
| Inductance(mH) | 12 |
| Phase Resistance(ohm) | 12 |
| Rated Current (A) | 0.42 |
| Step Angle(°) | 0.42 |
| No. of Phase | 2 |
| Detent Torque(mN.m) | 10.78 |
| Detent Torque(oz.in) | 2.521 |
| Holding Torque(mN.m) | 49 |
| Physical Specification | |
| Body Length(mm) | 18 |
| Frame Size(mm) | Φ42 |
| Lead Length(mm) | 85 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | Φ3 |
| Shaft Length(mm) | 12 |
