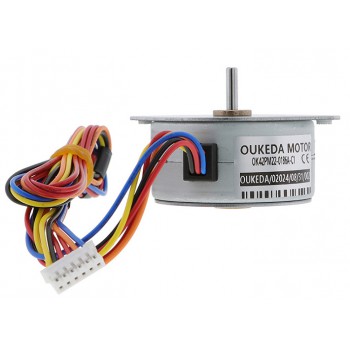

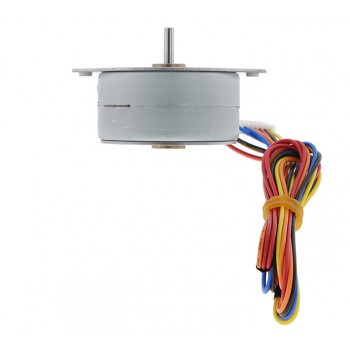

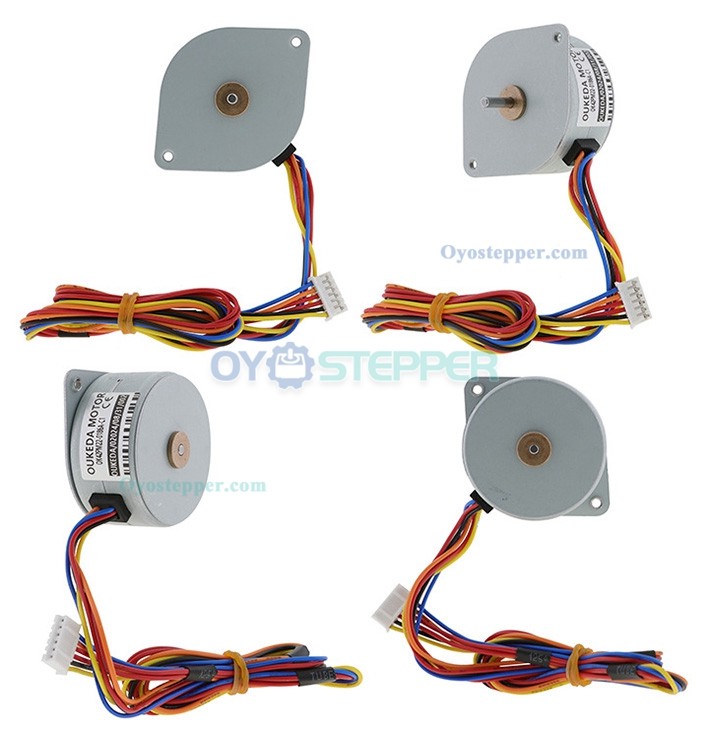

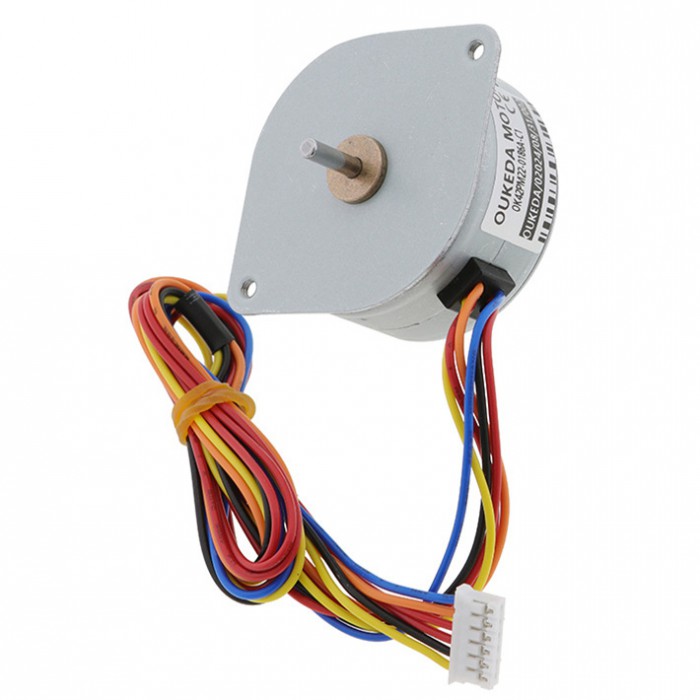

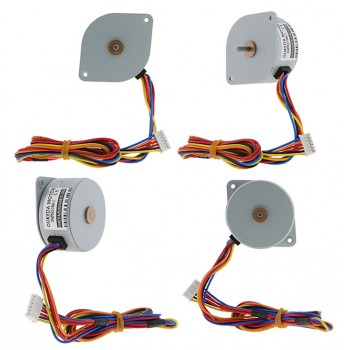

Oukeda PM42 Permanent Magnet Stepper Motor 7.5 Deg 4.90 Ncm φ42PM 12V 6 Wires
Oukeda PM42 Permanent Magnet Stepper Motor 7.5 Deg 4.90 Ncm φ42PM 12V 6 Wires
Electrical Specification:
Manufacturer Part Number:OK42PM22-0186A-C1
Motor Type: PM Stepper Motor
Phase: 4
Step Angle: 7.5 deg
Phase Current: 171mA
Phase Voltage:12VDC
Holding Torque:4.90 Ncm(6.94 oz.in)
Detent Torque:0.98 Ncm(1.38 oz.in)
Phase Resistance: 70± 7% ohms(25 ℃)
Inductance: 50.93mH ± 20%

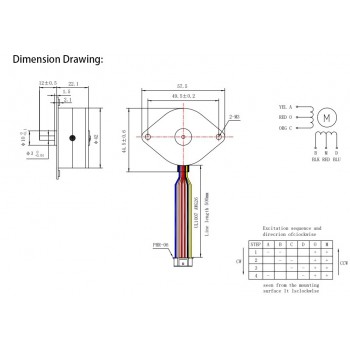

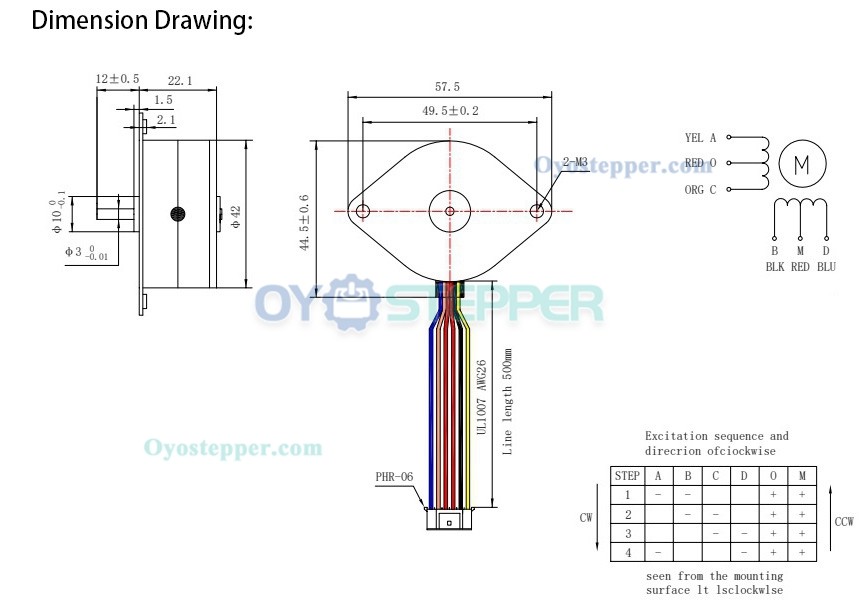

Physical Specification:
Frame Size: Φ42 mm
Body Length: 22.1 mm
Shaft Diameter: Φ3 mm
Shaft Length: 12 mm
Number of Leads: 6
Lead Length: 240 mm
Weight:100g;
.jpg "Oukeda PM42 Permanent Magnet Stepper Motor 7.5 Deg 4.90 Ncm φ42PM 12V 6 Wires")
| Electrical Specification | |
|---|---|
| Holding Torque (Ncm) | 4.90 |
| Holding Torque (oz.in) | 6.94 |
| Inductance(mH) | 50.93mH ± 20% |
| Phase Resistance(ohm) | 70± 7% ohms(25 ℃) |
| No. of Phase | 4 |
| Phase Current(A) | 171 |
| Phase Voltage(V) | 12 |
| Physical Specification | |
| Body Length(mm) | 22.1 |
| Lead Length(mm) | 240 |
| Shaft Diameter(mm) | 3 mm |
| Shaft Length(mm) | 12 |
| Shaft Type | O Type |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 100 |
| Frame Size(mm) | Φ42 |
