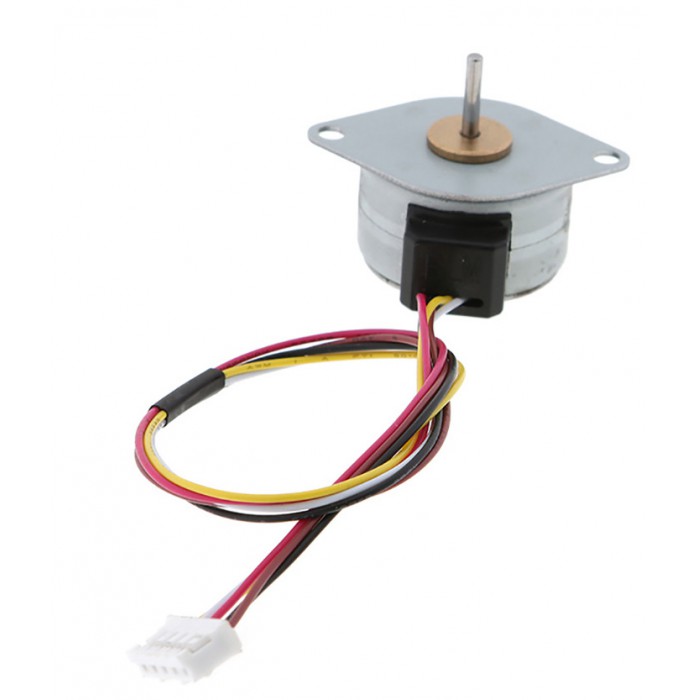

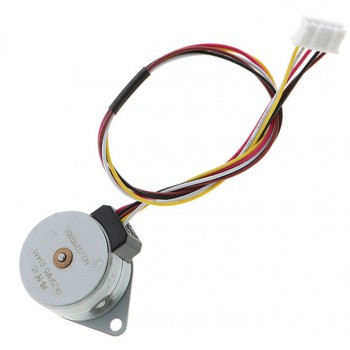

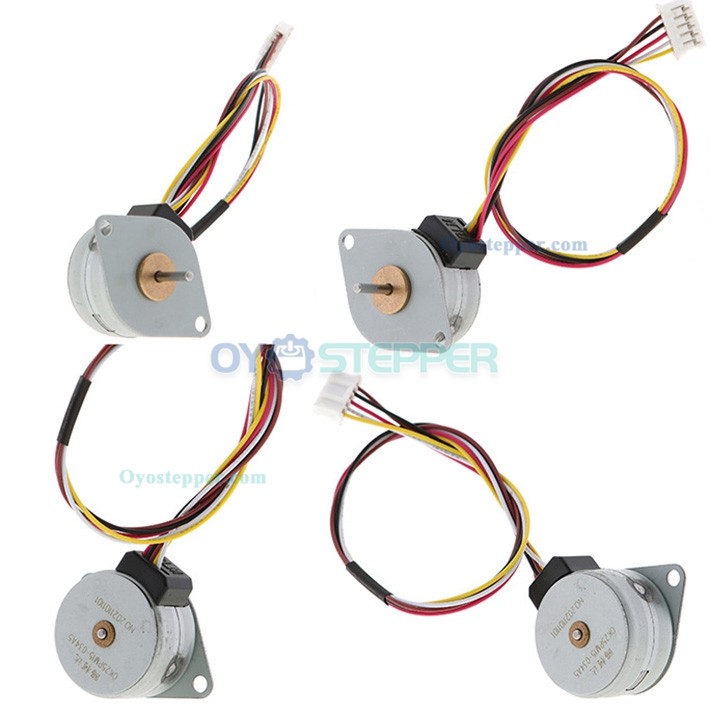

Oukeda PM25 Permanent Magnet Stepper Motor 2 Phase 1.8 Deg 1A 12Ncm 36.5x36.5mm
Oukeda PM25 Permanent Magnet Stepper Motor 2 Phase 1.8 Deg 1A 12Ncm 36.5x36.5mm
Electrical Specification:
Manufacturer Part Number:OK25PM15-034A5
Motor Type: PM Stepper Motor
Phase: 2
Step Angle: 1.8 deg
Phase Current: 1A
Phase Voltage:10VDC
Use Voltage:2-24V
Static Moment:12Ncm(16.90 oz.in)
Phase Resistance: 10± 7% ohms(25 ℃)
Inductance: 6mH ± 20%
Insulation Class:B

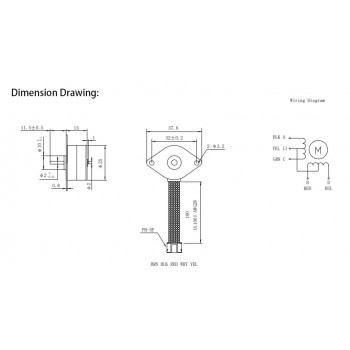

Physical Specification:
Frame Size: Φ36.5 mm
Body Length: 20 mm
Shaft Diameter: Φ5 mm
Shaft Length: 22 mm
D-cut Length: 17 mm
Number of Leads: 4
Lead Length: 240 mm
Weight:100g;
