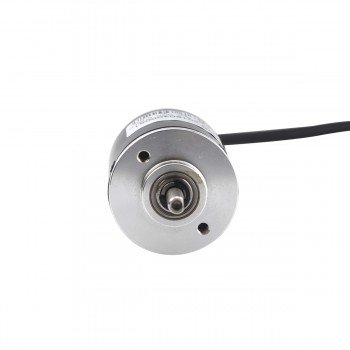

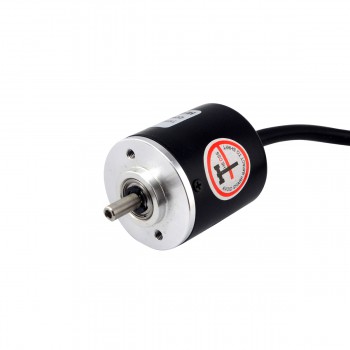

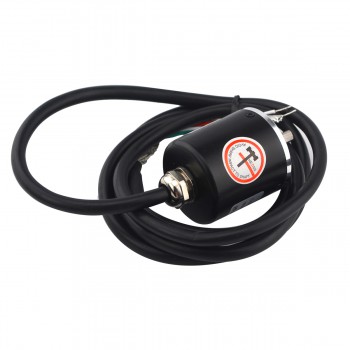

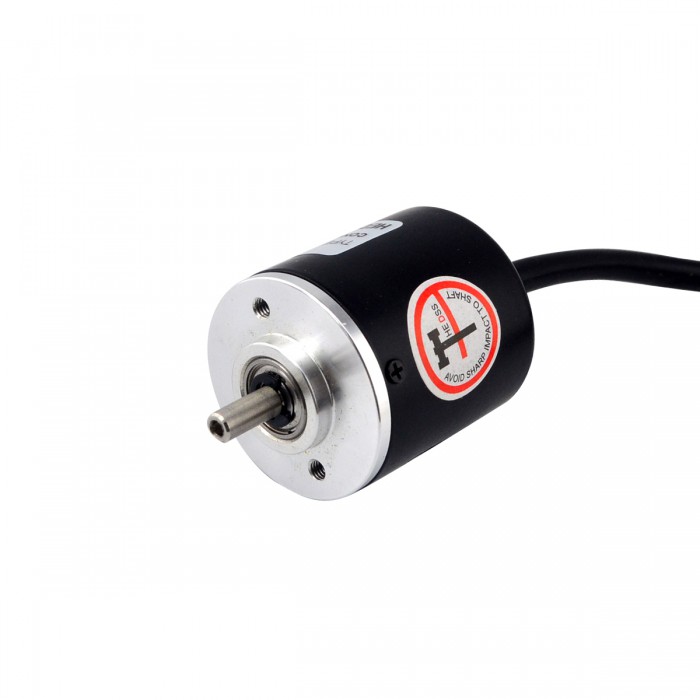

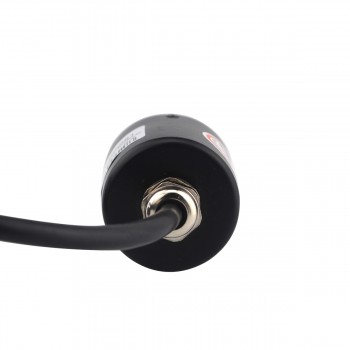

200 CPR Incremental Stepper Motor Rotary Encoder AB 2-Channel 4mm Solid Shaft ISC3004
- Manuals and Documentation: ISC3004 Encoder Manual:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 30th, 2026
- Note:No coupon code needed, please place order directly!
This 4mm shaft encoder operates on 5–24 VDC, provides 200 CPR resolution with 2‑channel single‑ended output, and features an 80 kHz max frequency.
Encoder Specification
Output Circuit Type: Push-Pull (Single-Ended)
Controlled By: Encoder Interface
Encoder Resolution: 200 CPR
Output Signal Channels: 2
Electrical Specification
Supply Voltage Min: 5 VDC
Supply Voltage Max: 24 VDC
Output Current: ≤60 mA
Output High Voltage: ≥2.5 V
Output Low Voltage: ≤0.3 V
Output Frequency Max: 80 KHZ
Physical Specification
Shaft Diameter: 4 mm
Operating Temperature Min: -25 ℃
Operating Temperature Max: 85 ℃
Cable Length: 500 mm
| Encoder Specification | |
|---|---|
| Output Current(mA) | ≤60 |
| Output Frequency | 0.1 |
| Output Signal Channels | 2 Channels |
| Rated Voltage(V) | 5 - 24 |
| Resolution(CPR) | 200 |
