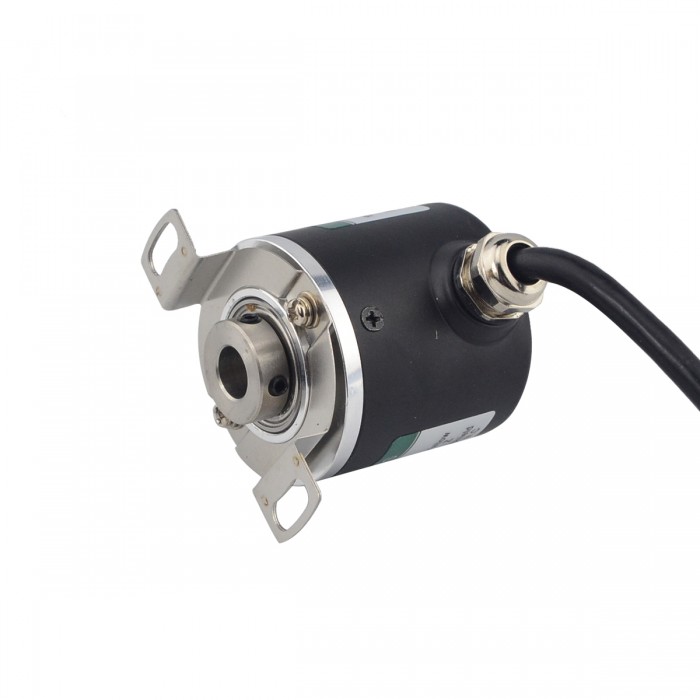

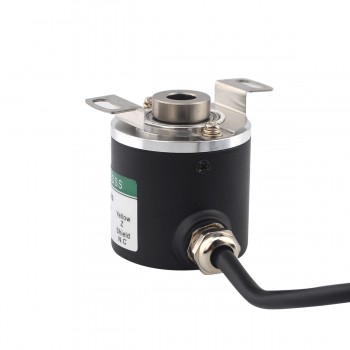

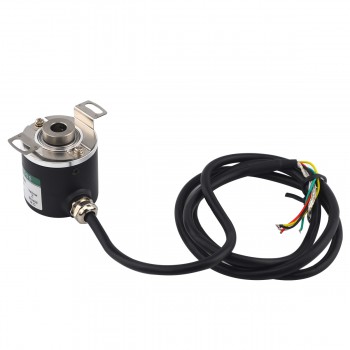

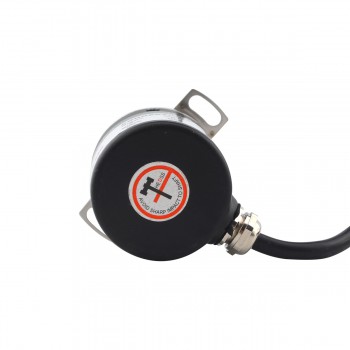

2000 CPR Incremental Stepper Motor Rotary Encoder ABZ 3-Channel 8mm Hollow Shaft IHC3808

This 8 mm shaft encoder operates on 5–24 VDC, provides 2000 CPR resolution with 3‑channel single‑ended output, and features a 100 kHz max frequency.

Encoder Specification

Output Circuit Type: Push-Pull (Single-Ended)

Controlled By: Encoder Interface

Encoder Resolution: 2000 CPR

Output Signal Channels: 3

Electrical Specification

Supply Voltage Min: 5 VDC

Supply Voltage Max: 24 VDC

Output Current: ≤60 mA

Output High Voltage: ≥2.5 V

Output Low Voltage: ≤0.3 V

Output Frequency Max: 100 KHZ

Physical Specification

Shaft Diameter: 8 mm

Operating Temperature Min: -25 ℃

Operating Temperature Max: 85 ℃

Cable Length: 1 m
