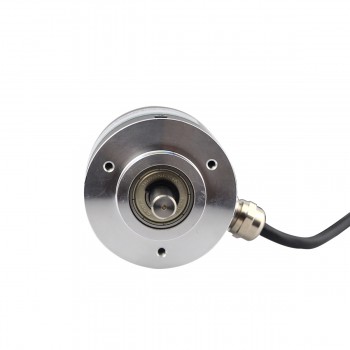

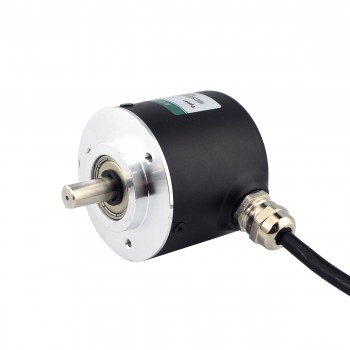

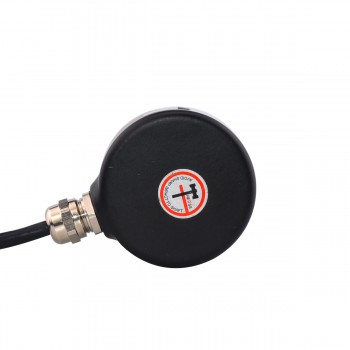

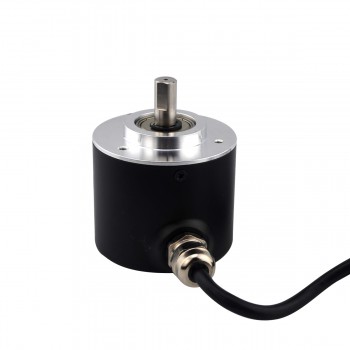

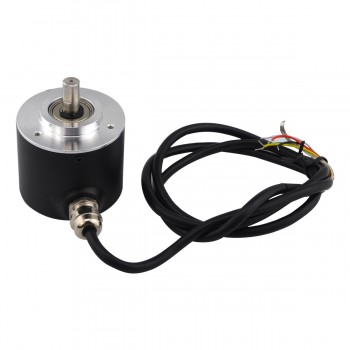

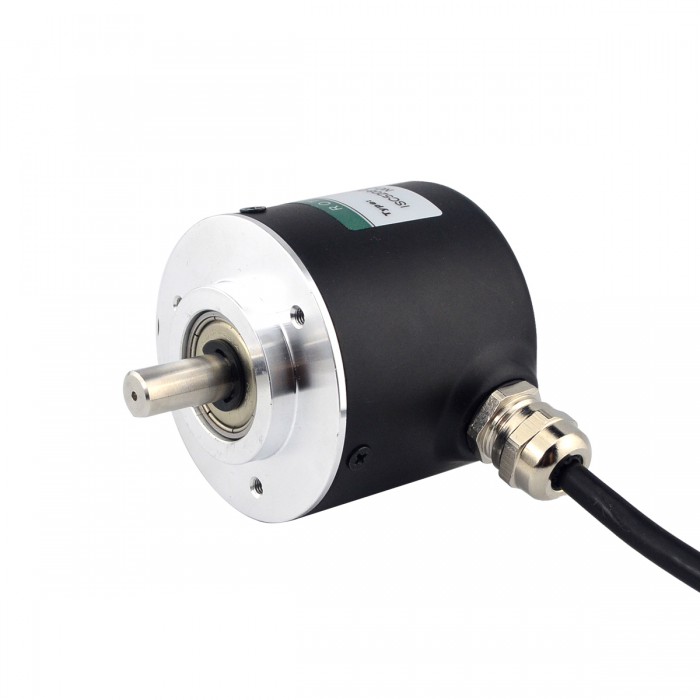

360 CPR Incremental Rotary Encoder Stepper Motor ABZ 3-Channel 8mm Solid Shaft ISC5208
Encoder Specification
Output Circuit Type: Push-Pull (Single-Ended)
Controlled By: Encoder Interface
Encoder Resolution: 360 CPR
Output Signal Channels: 3
Electrical Specification
Supply Voltage Min: 5 VDC
Supply Voltage Max: 24 VDC
Output Current: ≤60 mA
Output High Voltage: ≥2.5 V
Output Low Voltage: ≤0.3 V
Output Frequency Max: 100 KHZ
Physical Specification
Shaft Diameter: 8 mm
Operating Temperature Min: -25 ℃
Operating Temperature Max: 85 ℃
Cable Length: 1 m
Resources
ISC5208 Encoder Manual: ISC5208.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Encoder Specification | |
---|---|
Output Current(mA) | ≤60 |
Resolution(CPR) | 360 |
