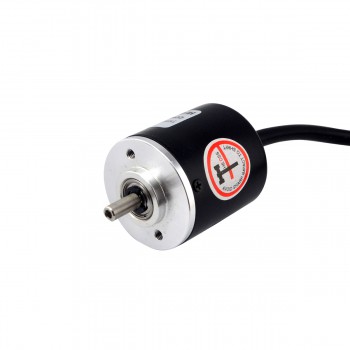

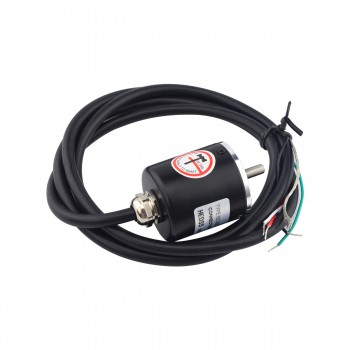

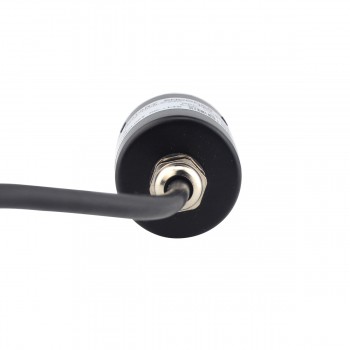

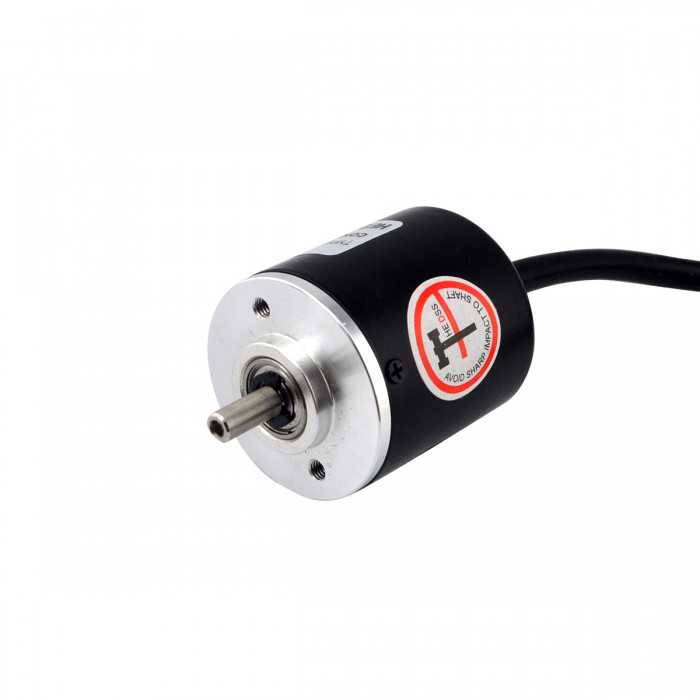

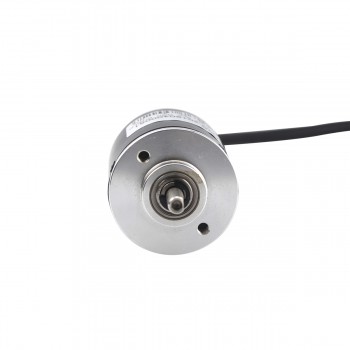

100 CPR Incremental Stepper Motor Rotary Encoder AB 2-Channel 4mm Solid Shaft ISC3004

NO.:ISC3004-001E-100B-5-24C
Post a review

Special Offer in Black Friday 2024:

6% OFF on Total Order Amount!
Enjoy Discount at Checkout!
Valid Till December 3th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$53.72

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$51.03	5%
10	$49.96	7%
50	$48.35	10%
100	$46.74	13%

Affiliate Link

Description Specification Custom Options Review

Encoder Specification

Output Circuit Type: Push-Pull (Single-Ended)

Controlled By: Encoder Interface

Encoder Resolution: 100 CPR

Output Signal Channels: 2

Electrical Specification

Supply Voltage Min: 5 VDC

Supply Voltage Max: 24 VDC

Output Current: ≤60 mA

Output High Voltage: ≥2.5 V

Output Low Voltage: ≤0.3 V

Output Frequency Max: 80 KHZ

Physical Specification

Shaft Diameter: 4 mm

Operating Temperature Min: -25 ℃

Operating Temperature Max: 85 ℃

Cable Length: 500 mm

Resources

ISC3004 Encoder Manual: ISC3004.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Brushless Digital DC Motor Driver DC18V~50V for BLDC Motor With a Hall Sensor
Next: 200 CPR Incremental Stepper Motor Rotary Encoder AB 2-Channel 4mm Solid Shaft ISC3004

Motor Specification
Shaft Diameter(mm)	4
Encoder Specification
Output Current(mA)	≤60
Output Frequency	0.1
Output Signal Channels	2 Channels
Rated Voltage(V)	5 - 24
Resolution(CPR)	100
