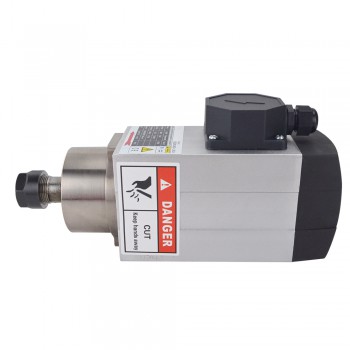

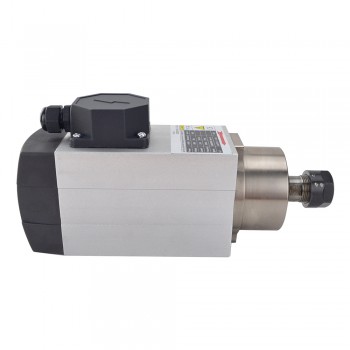

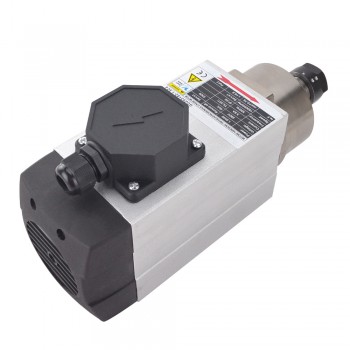

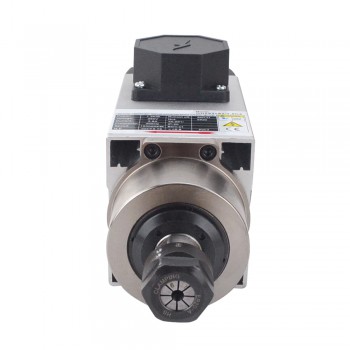

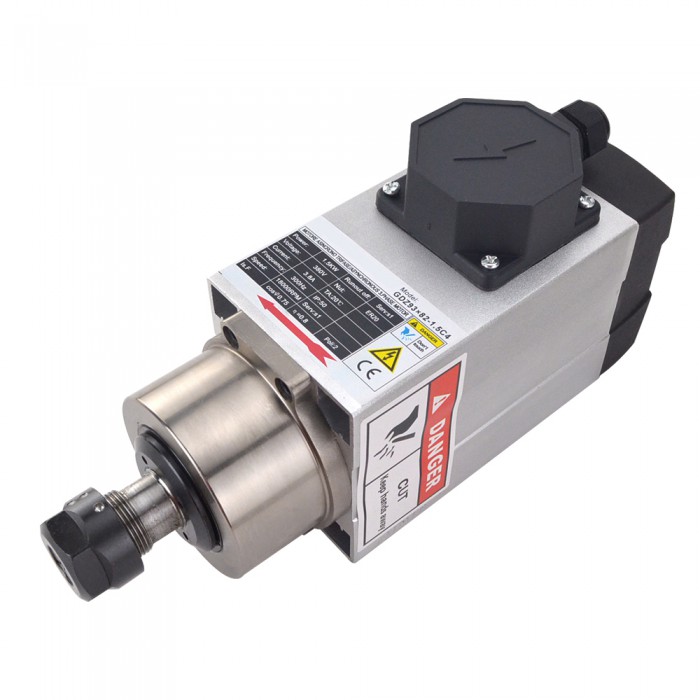

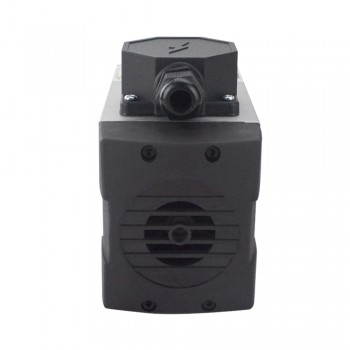

1.5KW Square Air Cooled Spindle Motor 380V 3.8A 18000RPM 300Hz ER20 Collet CNC Spindle Motor

NO.:GDZ93×82-1.5C4
Post a review

Manuals and Documentation: Manual:
GDZ93×82-1.5C4.pdf

Our Price:$253.25

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
2	$240.59	5%
5	$235.52	7%
10	$227.93	10%
50	$220.33	13%

Add To My Favorites

Description Specification Custom Options Review

This 1.5 kW air‑cooled spindle runs at 18,000 rpm on 380 VAC, features ER‑20 collet, and <0.005 mm runout.

Specification

Manufacturer Part Number: GDZ93×82-1.5C4

Material: Stainless steel

Size: 140x82(Length: 140 mm, Width:82 mm)

Power: 1.5 KW

Voltage: 380 VAC

Current: 3.8A

Frequency: 0 ~ 300 Hz

Speed: 0 ~ 18000 RPM

Cooling: Air cooled

Runout off: Less than 0.005 mm

Bearing Lubrication: Grease

Collet size: ER20 Collet(6 mm)

Bearings: 2x7005, 2x7002

Weight: 6.15 kg

Prev: 2.2KW Air Cooled Spindle Motor110V 24000RPM 400Hz ER20 Collet Wood Engraving Milling Machine
Next: 2.2KW Air Cooled Spindle Motor220V 8A 24000RPM 400Hz ER20 Stainless Steel CNC Spindle Motor

Spindle Motor Specification
Frequency(Hz)	300
Speed(RPM)	18000
Bearing Lubrication	Grease
Bearings	2x7005, 2x7002
Body Length(mm)	140
Collet Size	ER20
Cooling	Air cooled
Current(A)	3.8
Material	Stainless steel
Shape	Square
Voltage(VAC)	380
Weight(Kg)	6.15
Power(Kw)	1.5
Body Height(mm)	93
Body Width(mm)	82
