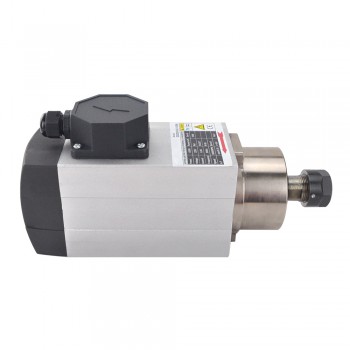

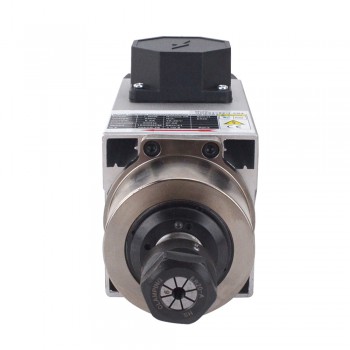

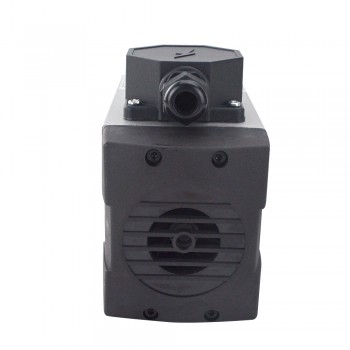

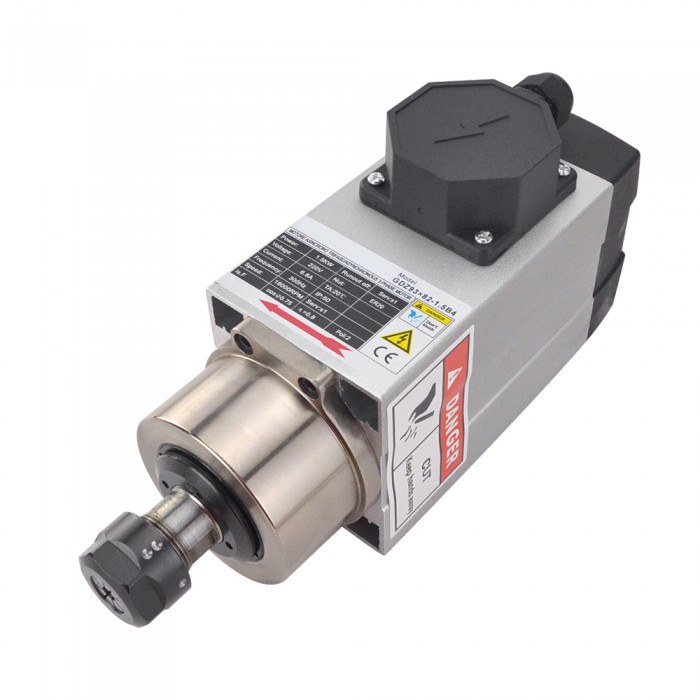

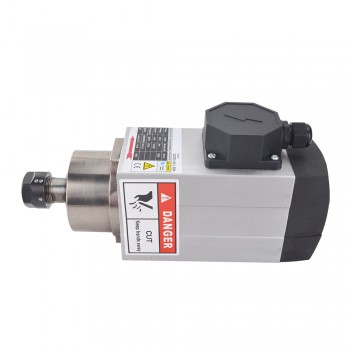

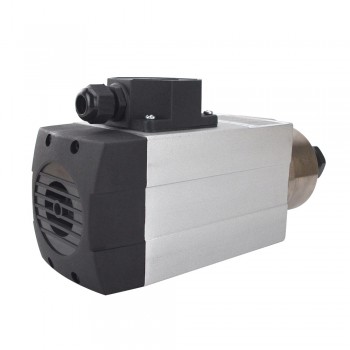

1.5KW Square Air Cooled Spindle Motor 220V 6.8A 18000RPM 300Hz ER20 Collet CNC Spindle Motor

NO.:GDZ93×82-1.5B4
Post a review

Special Offer in April 2024:

6% OFF on Total Order Amount!
Enjoy Discount at Checkout!
Valid Till April 20th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$253.25

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
2	$240.59	5%
5	$235.52	7%
10	$227.93	10%
50	$220.33	13%

Affiliate Link

Description Specification Custom Options Review

Specification

Manufacturer Part Number: GDZ93×82-1.5B4
Material: Stainless steel
Size: 140x82(Length: 140m m, Width: 82 mm)
Power: 1.5 KW
Voltage: 220 VAC
Current: 6.8 A
Frequency: 0 ~ 300 Hz
Speed: 0 ~ 18000 RPM
Cooling: Air cooled
Runout off: Less than 0.005 mm
Bearing Lubrication: Grease
Collet size: ER20 Chollet(6 mm)
Bearings: 2x7005, 2x7002
Weight: 6.15 kg

Resources

Manual: GDZ93×82-1.5B4.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2.2KW Air Cooled Spindle Motor220V 8A 24000RPM 400Hz ER20 Stainless Steel CNC Spindle Motor
Next: 2.2KW Square Air Cooled Spindle Motor 380V 18000RPM 300Hz ER25 Collet CNC Engraving Router Milling Grinding Machine

Spindle Motor Specification
Bearing Lubrication	Grease
Bearings	2x7005, 2x7002
Body Length(mm)	140
Collet Size	ER20
Cooling	Air cooled
Current(A)	6.8
Frequency(Hz)	0 - 300
Material	Stainless steel
Shape	Square
Speed(RPM)	0 - 18000
Voltage(VAC)	220
Weight(Kg)	6.15
Power(Kw)	1.5
Body Height(mm)	93
Body Width(mm)	82
