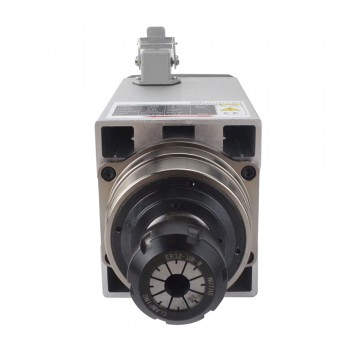

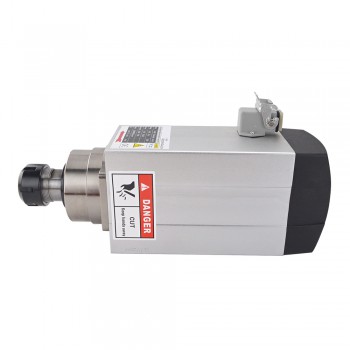

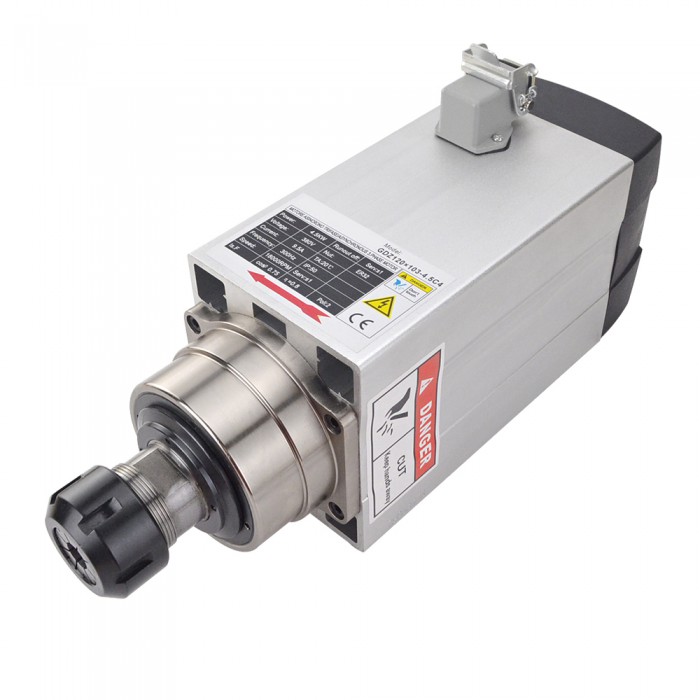

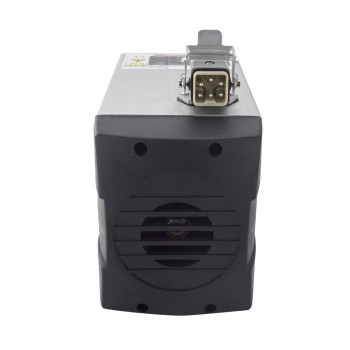

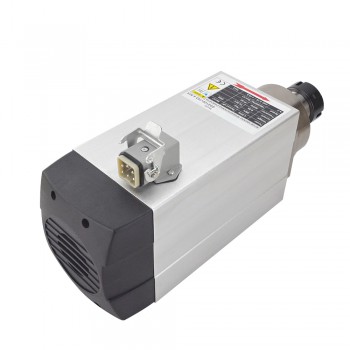

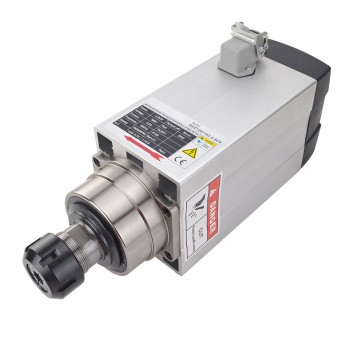

4.5KW Square Air Cooled Spindle Motor 380V 18000RPM 300Hz ER32 Collet CNC Engraving Router Milling Grinding Machine

NO.:GDZ120×103-4.5C4
Post a review

Special Offer in September 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till September 20th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$446.08

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
2	$423.78	5%
5	$414.85	7%
10	$401.47	10%
50	$388.09	13%

Affiliate Link

Description Specification Custom Options Review

Specification

Manufacturer Part Number: GDZ120×103-4.5C4

Material: Stainless steel

Size: 191×103(Length: 191 mm, Width:103 mm)

Power: 4.5 KW

Voltage: 380 VAC

Current: 9.5 A

Frequency: 0 ~ 300 Hz

Speed: 0 ~ 18000 RPM

Cooling: Air cooled

Runout off: Less than 0.005 mm

Bearing Lubrication: Grease

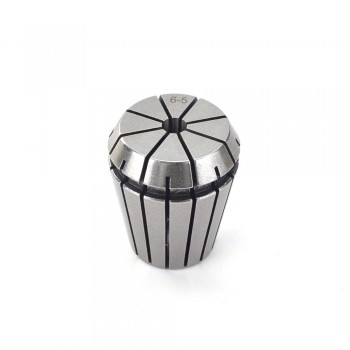

Collet size: ER32 Collet(6 mm, 12.7 mm)

Bearings: 2x7008C(P4), 2x7004C(P4)

Weight: 12.4 kg

Resources

Manual: GDZ120×103-4.5C4.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 3.5KW Air Cooled Square Spindle Motor380V 18000RPM 300Hz ER25 Collet VFD CNC Spindle Motor
Next: 6.0KW Square r Air Cooled Spindle Moto 380V 18000RPM 300Hz ER32 Collet VFD CNC Spindle Motor

Spindle Motor Specification
Bearing Lubrication	Grease
Bearings	2x7008C(P4), 2x7004C(P4)
Body Length(mm)	191
Collet Size	ER32
Cooling	Air cooled
Current(A)	9.5
Frequency(Hz)	0 - 300
Material	Stainless steel
Shape	Square
Speed(RPM)	0 - 18000
Voltage(VAC)	380
Weight(Kg)	12.4
Power(Kw)	4.5
Body Height(mm)	120
Body Width(mm)	103
