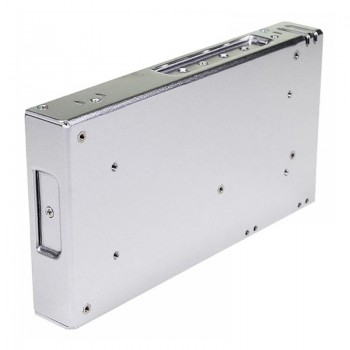

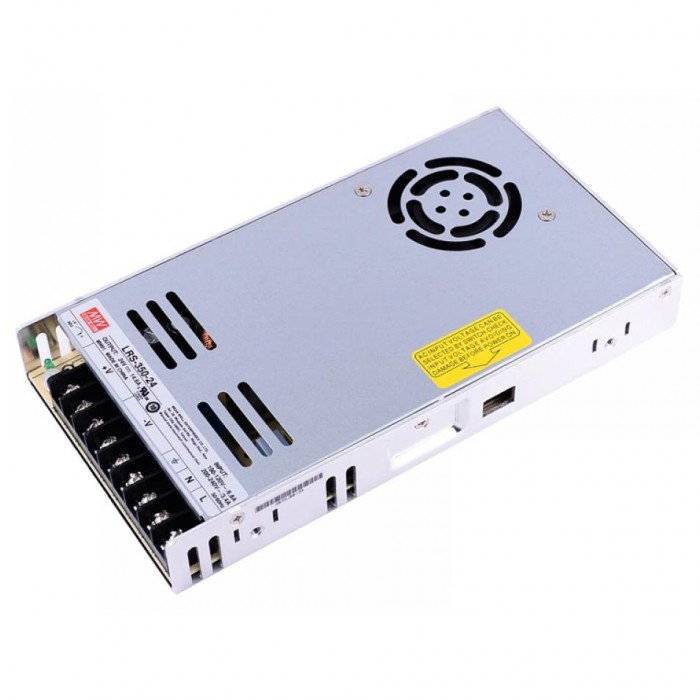

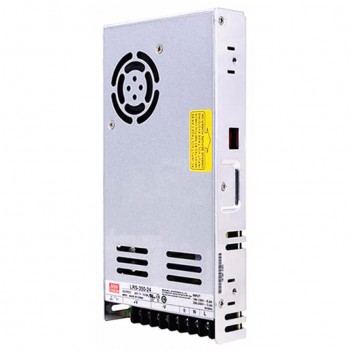

Mean Well LRS-350-24 CNC Power Supply 350W 24VDC 14.6A 115/230VAC Enclosed Switching Power Supply
- Manuals and Documentation:
LRS-350-24 MEAN WELL 350W 24VDC 14.6A 115/230VAC Enclosed Switching Power Supply
The LRS-350 series is a 350W enclosed power supply with a 30mm low-profile case, accepts switch-selectable 115VAC or 230VAC input, offers output voltages from 3.3V to 48V, and includes complete protection functions with 5G anti-vibration capability.
Features
Brand MEANWELL
24V DC 14.6A output
AC input voltage range: 90 ~ 132VAC
Rated power: 350.4W

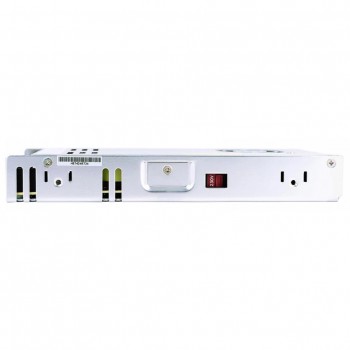

AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
Built-in cooling Fan ON-OFF control
1U low profile
Withstand 5G vibration test
LED indicator for power on
No load power consumption<0.75W
High operating temperature up to 70℃
Operating altitude up to 5000 meters (Note.8)
3 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
| Power Supply Specification | |
|---|---|
| Max. Output Current(A) | 14.6 |
| Power(W) | 350.4 |
| Brand | MEANWELL |
| Output Voltage(VDC) | 24 |
| Input Voltage(VAC/VDC) | 90 - 132 / 180 - 264 |
| PFC Function | No |
| Dim.(LxWxH)(mm/in.) | 215 x 115 x 30 / 8.46 x 4.53 x 1.18 |
| Input Frequency(Hz) | 47 - 63 |
| Efficiency(%) | 88% |
| Physical Specification | |
| Product Type | POWER SUPPLY |
