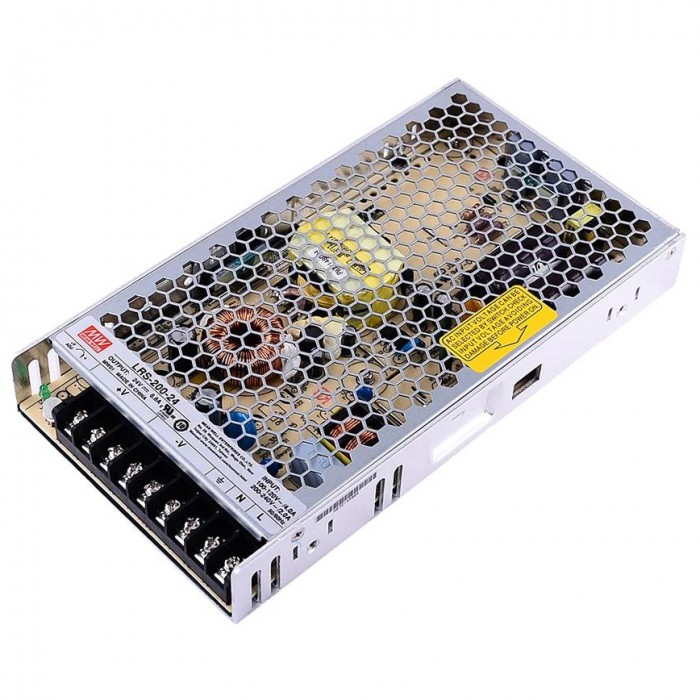

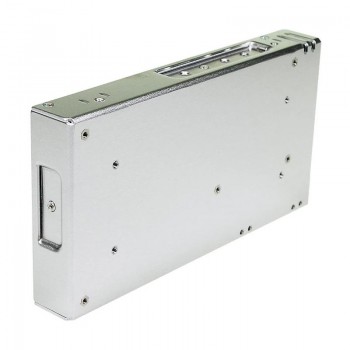

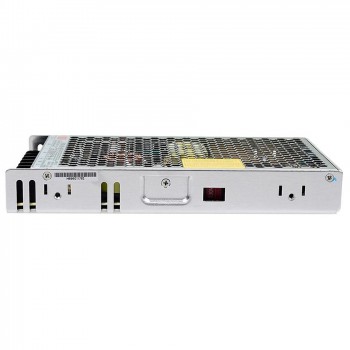

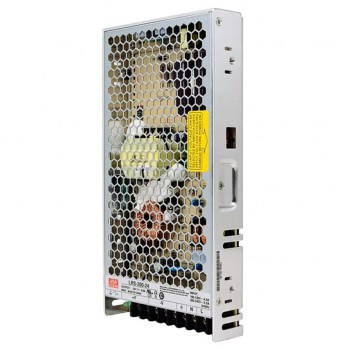

Meanwell LRS-200-24 CNC Power Supply 200W 24VDC 8.8A 115/230VAC Enclosed Switching Power Supply
- Manuals and Documentation: Full Datasheet:
LRS-200-24 MEAN WELL 200W 24VDC 8.8A 115/230VAC Enclosed Switching Power Supply
The MEAN WELL LRS-200 series is a 200W enclosed power supply with a low-profile 30mm design, accepts 115VAC or 230VAC input via switch, and offers output voltages from 3.3V to 48V.
Features
Brand MEANWELL
24V DC 8.8A output
AC input voltage range: 90 ~ 132VAC
Rated power: 211.2W
AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
1U low profile
Withstand 5G vibration test
LED indicator for power on
No load power consumption<0.75W
High operating temperature up to 70℃
Operating altitude up to 5000 meters (Note.8)
3 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
| Power Supply Specification | |
|---|---|
| Max. Output Current(A) | 8.8 |
| Power(W) | 211.2 |
| Brand | MEANWELL |
| Output Voltage(VDC) | 24 |
| Input Voltage(VAC/VDC) | 90 - 132 / 180 - 264 |
| PFC Function | No |
| Dim.(LxWxH)(mm/in.) | 215 x 115 x 30 / 8.46 x 4.53 x 1.18 |
| Input Frequency(Hz) | 47 - 63 |
| Efficiency(%) | 89.5% |
| Physical Specification | |
| Product Type | POWER SUPPLY |
