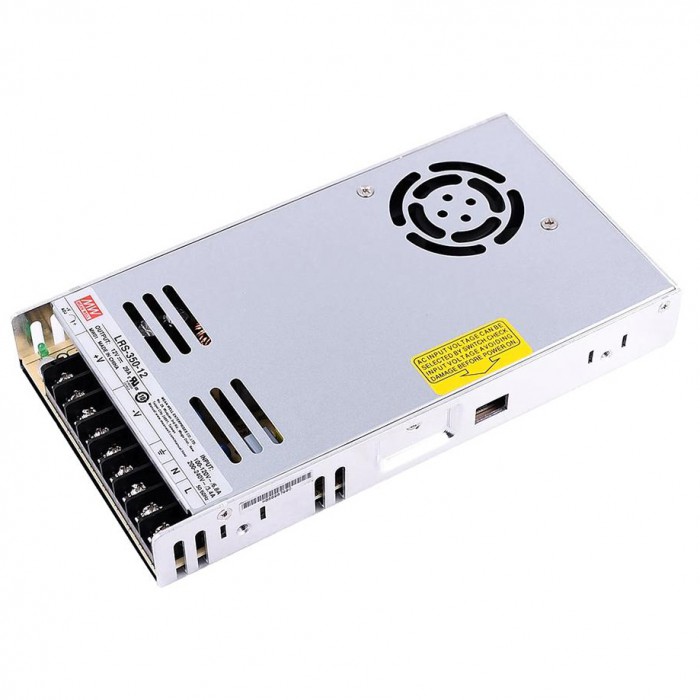

Meanwell LRS-350-12 CNC Power Supply 350W 12VDC 29A 115/230VAC Enclosed Switching Power Supply
- Manuals and Documentation: Full Datasheet:
LRS-350-12 MEAN WELL 350W 12VDC 29A 115/230VAC Enclosed Switching Power Supply
The MEAN WELL LRS-350 series is a 350W enclosed power supply with a 30mm low‑profile case, accepts switch‑selectable 115VAC or 230VAC input, and offers output voltages from 3.3V to 48V.
Features
Brand MEANWELL
12V DC 29A output
AC input voltage range: 90 ~ 132VAC
Rated power: 348W

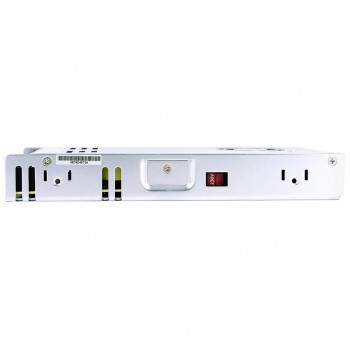

AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
Built-in cooling Fan ON-OFF control
1U low profile
Withstand 5G vibration test
LED indicator for power on
No load power consumption < 0.75W
High operating temperature up to 70℃
Operating altitude up to 5000 meters (Note.8)
3 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
| Power Supply Specification | |
|---|---|
| Max. Output Current(A) | 29 |
| Power(W) | 348 |
| Brand | MEANWELL |
| Output Voltage(VDC) | 12 |
| Input Voltage(VAC/VDC) | 90 - 132 / 180 - 264 |
| Dim.(LxWxH)(mm/in.) | 215 x 115 x 30 / 8.46 x 4.53 x 1.18 |
| Input Frequency(Hz) | 47 - 63 |
| Efficiency(%) | 85% |
| Physical Specification | |
| Product Type | POWER SUPPLY |
