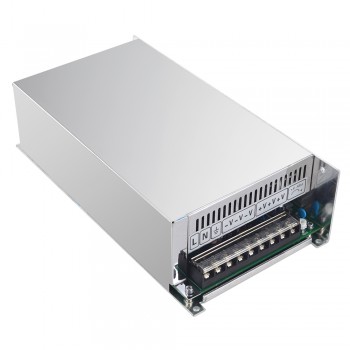

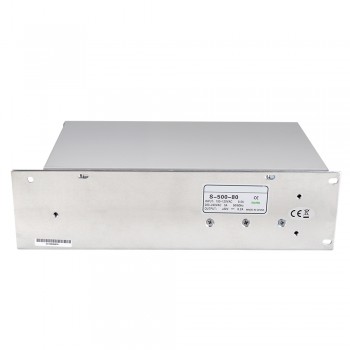

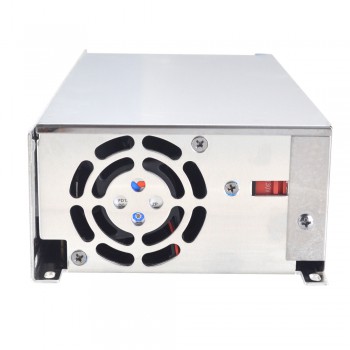

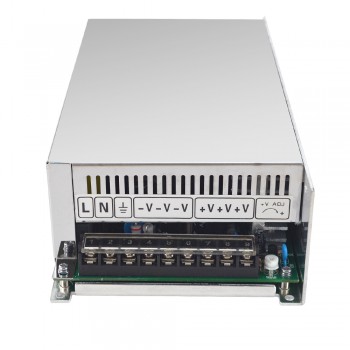

Switching Power Supply 500W 80V 6.2A 115/230V for CNC Stepper Motor / Servo Motor System
This professional 500W 80V 6.2A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System.
115V and 230V can be chosed by switch.
Key Features
80V DC 6.2 A output
AC input voltage range:92~132V/180~264VAC
115V/230V AC selected by switch

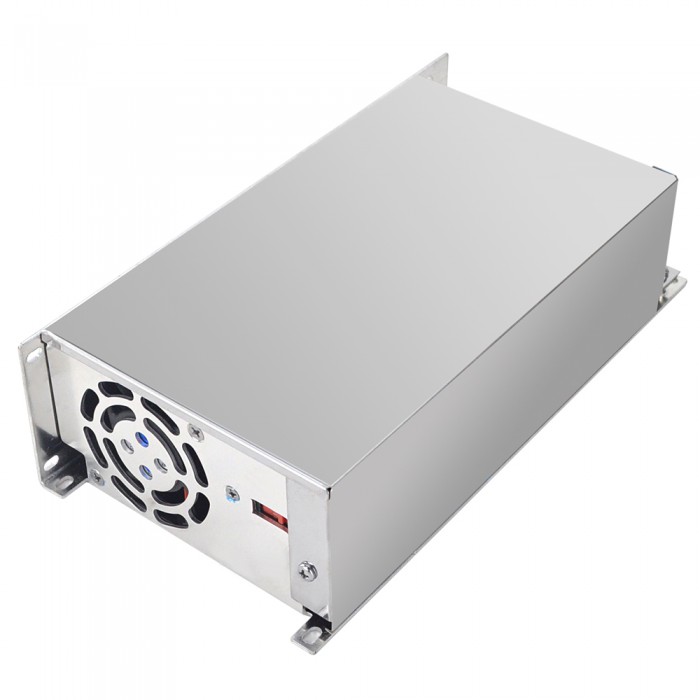

Free air cooling convection
Low output ripple and yawp
Over current, over voltage, short circuit and overheat protections
240*125*65mm (L*W*H)
Resources
Full Datasheet: S-500-80.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Power Supply Specification | |
|---|---|
| Input Voltage(V) | 115/230 |
| Max. Output Current(A) | 6.2 |
| Output Voltage(V) | 80 |
| Power(W) | 500 |
| Physical Specification | |
| Weight(g) | 1450 |
