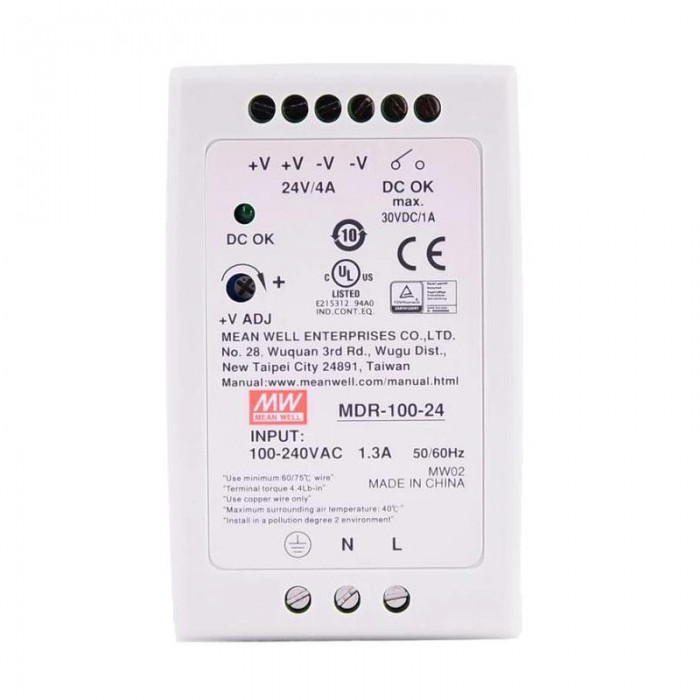

MDR-100-24 MEAN WELL 100W 24VDC 4A 115/230VAC DIN Rail Power Supply
Features
Brand MEANWELL
24V DC 4A output
AC input voltage range: 85 ~ 264VAC
Rated power: 96W
Universal AC input/Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
ZCS/ZVS technology to reduce power dissipation
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
DC OK relay contact
No load power consumption<1W
LED indicator for power on
100% full load burn-in test
3 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
Resources
Full Datasheet: MDR-100-24.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Power Supply Specification | |
|---|---|
| Max. Output Current(A) | 4 |
| Power(W) | 96 |
| Brand | MEANWELL |
| Output Voltage(VDC) | 24 |
| Input Voltage(VAC/VDC) | 85 - 264 / 120 - 370 |
| PFC Function | No |
| Dim.(LxWxH)(mm/in.) | 55 x 90 x 100 / 2.17 x 3.54 x 3.94 |
| Input Frequency(Hz) | 47 - 63 |
| Efficiency(%) | 86% |
| Physical Specification | |
| Product Type | POWER SUPPLY |
