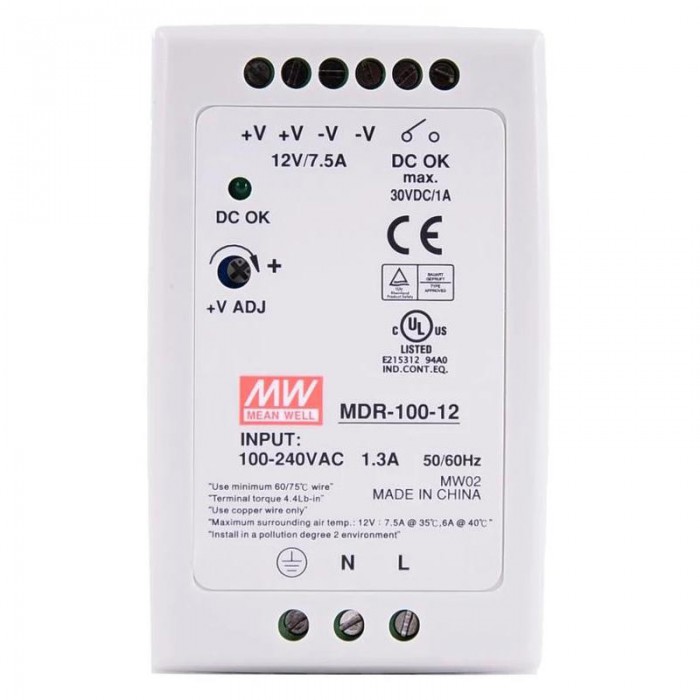

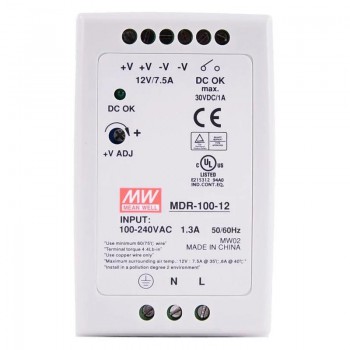

Mean Well MDR-100-12 100W 12VDC 7.5A 115/230VAC DIN Rail Power Supply

Mean Well MDR-100-12 100W 12VDC 7.5A 115/230VAC DIN Rail Power Supply
NO.:MDR-100-12
Review: Post a review
Latest price:$40.92
Buy It Now:$27.28
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $26.71 2%
10 $26.14 4%
50 $25.57 6%
100 $25.00 8%
Add To Cart

MDR-100-12 MEAN WELL 100W 12VDC 7.5A 115/230VAC DIN Rail Power Supply



Features

Brand MEANWELL

12V DC 7.5A output

AC input voltage range: 85 ~ 264VAC

Rated power: 90W

Universal AC input/Full range

Protections: Short circuit / Overload / Over voltage / Over temperature

ZCS/ZVS technology to reduce power dissipation

Cooling by free air convection

Can be installed on DIN rail TS-35/7.5 or 15

DC OK relay contact

No load power consumption<1W

LED indicator for power on

100% full load burn-in test

3 years warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Resources

Full Datasheet: MDR-100-12.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Mean Well MDR-10-24 10W 24VDC 0.42A 115/230VAC DIN Rail Power Supply
Next: Meanwell MDR-100-24 100W 24VDC 4A 115/230VAC DIN Rail Power Supply
Power Supply Specification
Max. Output Current(A) 7.5
Power(W) 90
Brand MEANWELL
Output Voltage(VDC) 12
Input Voltage(VAC/VDC) 85 - 264 / 120 - 370
PFC Function No
Dim.(LxWxH)(mm/in.) 55 x 90 x 100 / 2.17 x 3.54 x 3.94
Input Frequency(Hz) 47 - 63
Efficiency(%) 83%
Physical Specification
Product Type POWER SUPPLY
