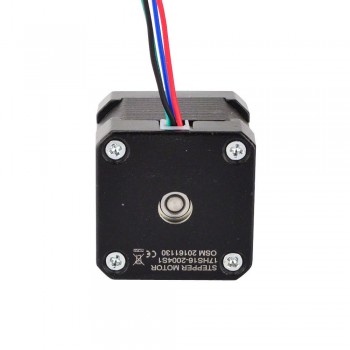

5 PCS Nema 17 Stepper Motor 4-Lead 2A for DIY 3D Printer Motor CNC Robot 3D Printer 17HS19-2004S1

5 PCS Nema 17 Stepper Motor 4-Lead 2A for DIY 3D Printer Motor CNC Robot 3D Printer 17HS19-2004S1
NO.:5PCS-17HS19-2004S1
Post a review
Special Offer in June 2023:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 10th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$70.54
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $67.01 5%
10 $65.60 7%
50 $63.49 10%
100 $59.96 15%
Add To Cart

5 PCS Nema 17 Stepper Motor 4-Lead 2A for DIY 3D Printer Motor CNC Robot 17HS19-2004S1

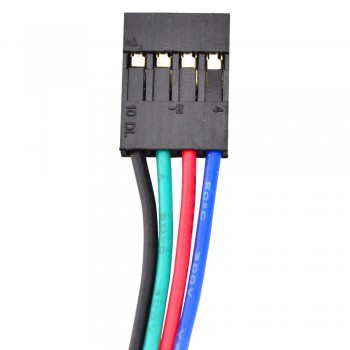

This is an updated version nema 17 stepper motor with holding torque of 59Ncm(83.6oz.in). Based on old verstion, we have lengthened motor cable length to 1 metre, and add a 4-pin 0.1" pitch (2.54mm) Harwin female connector at the end of cable. It's good ideal for 3D printers, as well as CNC and robotics applications.

 It's good ideal for 3D printers, as well as CNC and robotics applications.

Nema 17 Stepper Motor Bipolar 59Ncm (84oz.in) 2A 42x48mm 4 Wires w/ 1m Cable & Connector compatible with 3D Printer/CNC(

Nema 17 Stepper Motor Bipolar 59Ncm (84oz.in) 2A 42x48mm 4 Wires w/ 1m Cable & Connector compatible with 3D Printer/CNC(

Nema 17 Stepper Motor Bipolar 59Ncm (84oz.in) 2A 42x48mm 4 Wires w/ 1m Cable & Connector compatible with 3D Printer/CNC(



Specification:

5 PCS Nema 17 Stepper Motor 4-Lead 2A for DIY 3D Printer Motor CNC Robot 17HS19-2004S1

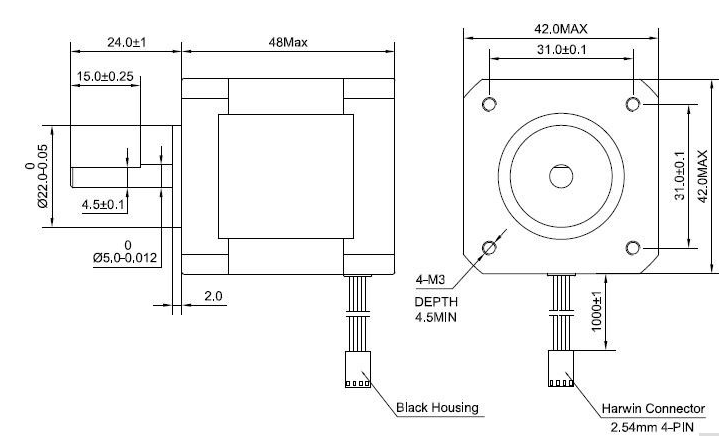

Drawing:

5 PCS Nema 17 Stepper Motor 4-Lead 2A for DIY 3D Printer Motor CNC Robot 17HS19-2004S1

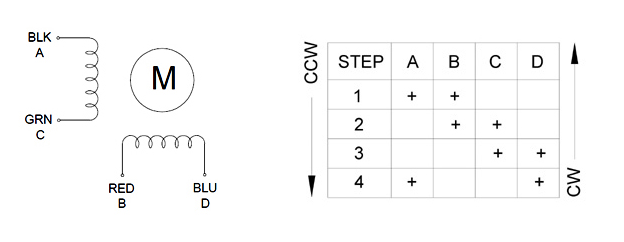

Wire Connection

5 PCS Nema 17 Stepper Motor 4-Lead 2A for DIY 3D Printer Motor CNC Robot 17HS19-2004S1



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 3 PCS Nema 17 Stepper Motor Bipolar 45Ncm (64oz.in) 2.2V 2A 42x40mm 4 Wires w/h 1m Cable & Connector (17HS16-2004S1)
Next: Nema 17 Stepper Motor Bipolar 1.5A 1.8deg 45Ncm 12V for DIY CNC/ 3D Printer/Extruder
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 59
Holding Torque (oz.in) 84
Inductance(mH) 3
Phase Resistance(ohm) 1.4
Rated Current (A) 2
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 48
Frame Size(mm) 42x42
Lead Length(mm) 1000
No. of Lead 4
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Weight(g) 400
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
