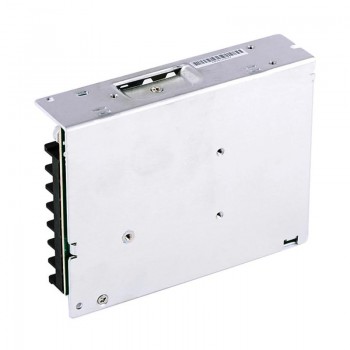

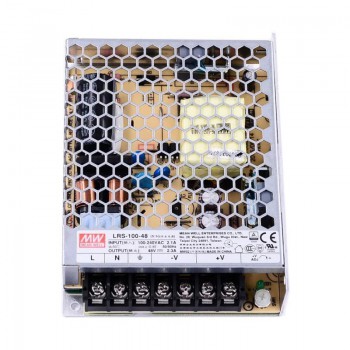

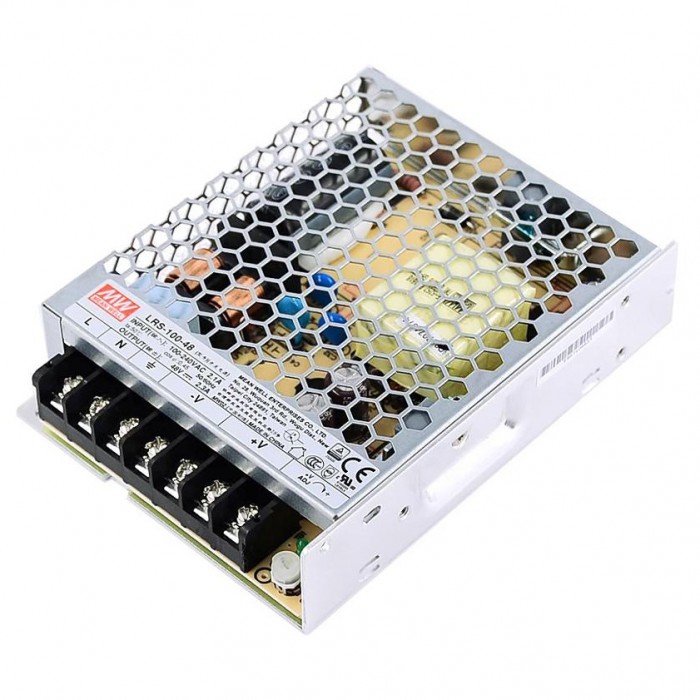

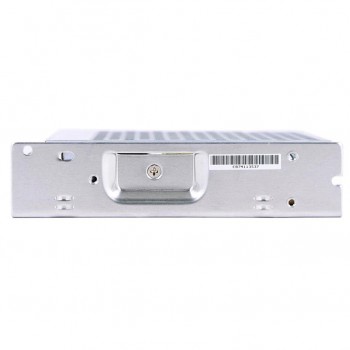

Mean Well LRS-100-48 100W 48VDC 2.3A 115/230VAC Enclosed Switching Power Supply

Mean Well LRS-100-48 100W 48VDC 2.3A 115/230VAC Enclosed Switching Power Supply
NO.:LRS-100-48
Review: Post a review
Latest price:$18.33
Buy It Now:$12.22
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $11.97 2%
10 $11.71 4%
50 $11.45 6%
100 $11.20 8%
Add To Cart

LRS-100-48 MEAN WELL 100W 48VDC 2.3A 115/230VAC Enclosed Switching Power Supply



MEANWELL LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V.

In addition to the high efficiency up to 91%, the design of metallic mesh case enhances the heat dissipation of LRS-100 that the whole series operates from -30°C through 70°C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement.

LRS-100 has the complete protection functions and 5G anti¬vibration capability; it is complied with the international safety regulations such as TUV BS EN/EN2368-1, BS EN / EN60335-1, BS EN / EN61558-1/-2-16, UL62368-1 and GB4943. LRS-100 series serves as a high price-to-performance power supply solution for various industrial applications.



Features

Brand MEANWELL

48V DC 2.3A output

AC input voltage range: 85 ~ 264VAC

Rated power: 110.4W

Universal AC input / Full range

Withstand 300VAC surge input for 5 second

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

Miniature size and 1U low profile

Compliance to IEC / BS EN / EN 60335-1 (PD3) and IEC / BS EN / EN61558-1, 2-16 for household appliances

Operating altitude up to 5000 meters (Note.7)

Withstand 5G vibration test

LED indicator for power on

No load power consumption < 0.3W

Over voltage category III

100% full load burn-in test

High operating temperatir up 70°C

High efficiency, long life and reliability

3 years warranty

3 year warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Resources

Full Datasheet: LRS-100-48.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Meanwell LRS-100-24 100W 24VDC 4.5A 115/230VAC Enclosed Switching Power Supply
Next: Mean Well LRS-100-5 100W 5VDC 18A 115/230VAC Enclosed Switching Power Supply
Power Supply Specification
Max. Output Current(A) 2.3
Power(W) 110.4
Brand MEANWELL
Output Voltage(VDC) 48
Input Voltage(VAC/VDC) 85 - 264 / 120 - 373
PFC Function No
Dim.(LxWxH)(mm/in.) 129 x 97 x 30 / 5.08 x 3.82 x 1.18
Input Frequency(Hz) 47 - 63
Efficiency(%) 91%
Physical Specification
Product Type POWER SUPPLY
