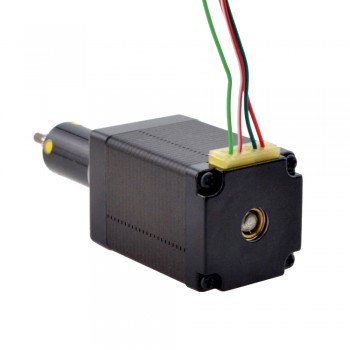

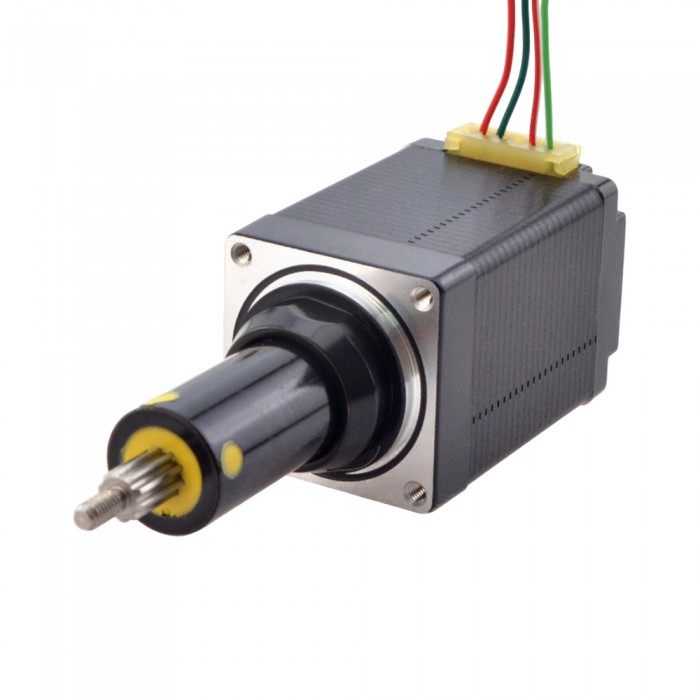

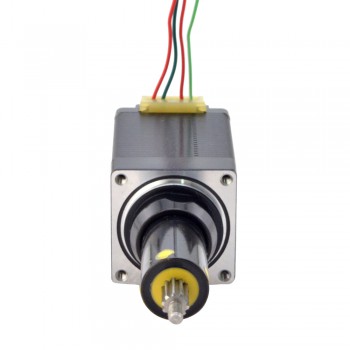

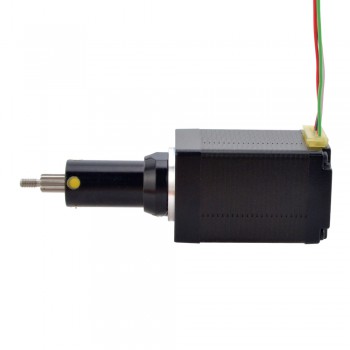

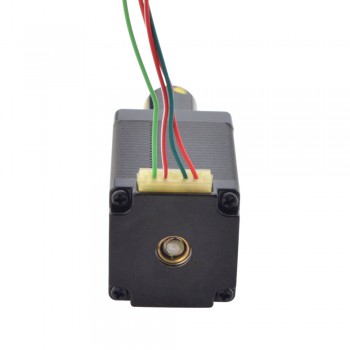

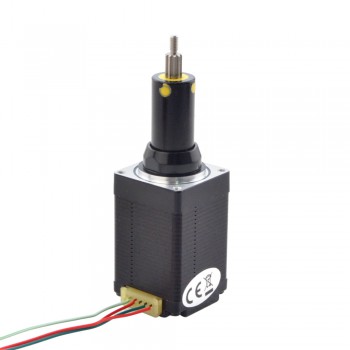

NEMA 11 Captive Acme Lead Screw Linear Actuator 1.0A Bipolar 1.8 Deg Lead Revolution 2.54mm(0.1") Travel 25.4mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till April 20th, 2024
- Note:No coupon code needed, please place order directly!
NEMA 11 Captive Acme Linear Stepper Motor 1.0A 46mm Stack Screw Lead 2.54mm(0.1") Travel 25.4mm
This model is a Nema 11 Captive ACME screw linear stepper motor with a 46mm body length, 1.8 degree step angle and 1.0A rated current. It is integrated with a 4.76mm(0.1874") diameter, 25.4mm(1") travel distance, the linear travel is 2.54mm(0.1") per revolution.
Electrical Specification
Manufacturer Part Number: 11C18S1004GD5-025RS
Motor Type: Captive
Step Angle: 1.8°
Holding Torque: 0.1Nm(14.164oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 3.7ohms
Inductance: 3.7mH±20%(1KHz)
Physical Specification
Frame Size: 28 x 28mm
Body Length: 46mm
Travel Distance: 25.4mm(1")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.0127mm(0.0005")
Lead Travel/Revolution: 2.54mm(0.1")
Number of Leads: 4
Lead Length: 300mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
Lead Screw End Machining
.jpg "NEMA 11 Captive Acme Lead Screw Linear Actuator 1.0A Bipolar 1.8 Deg Lead Revolution 2.54mm(0.1")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 3.7 |
| Phase Resistance(ohm) | 3.7 |
| Rated Current (A) | 1.0 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | Captive |
| Physical Specification | |
| Body Length(mm) | 46 |
| Frame Size(mm) | Nema 11 (28 x 28) |
| Lead Length(mm) | 300 |
| Lead Screw Diameter(mm) | 4.76 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 2.54 |
| Lead Travel/Step(mm) | 0.0127 |
| IP Rating | 40 |
