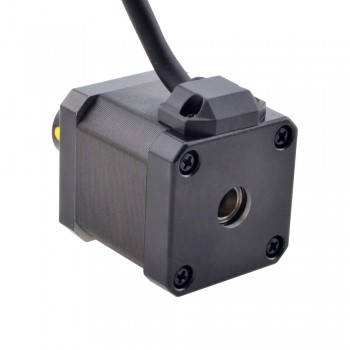

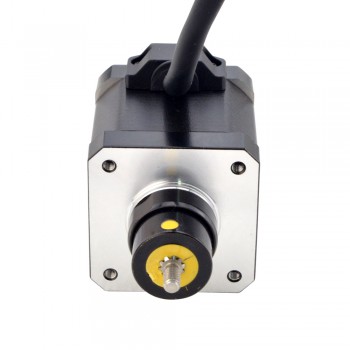

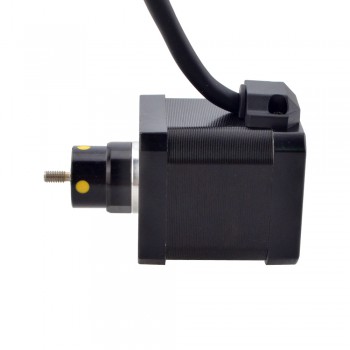

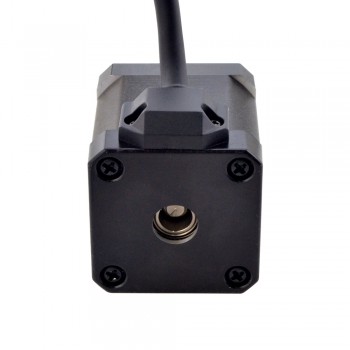

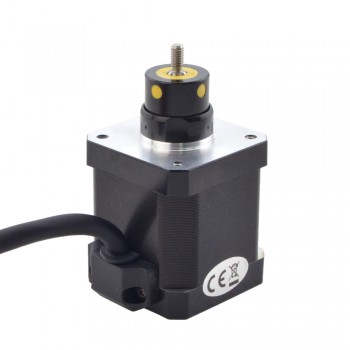

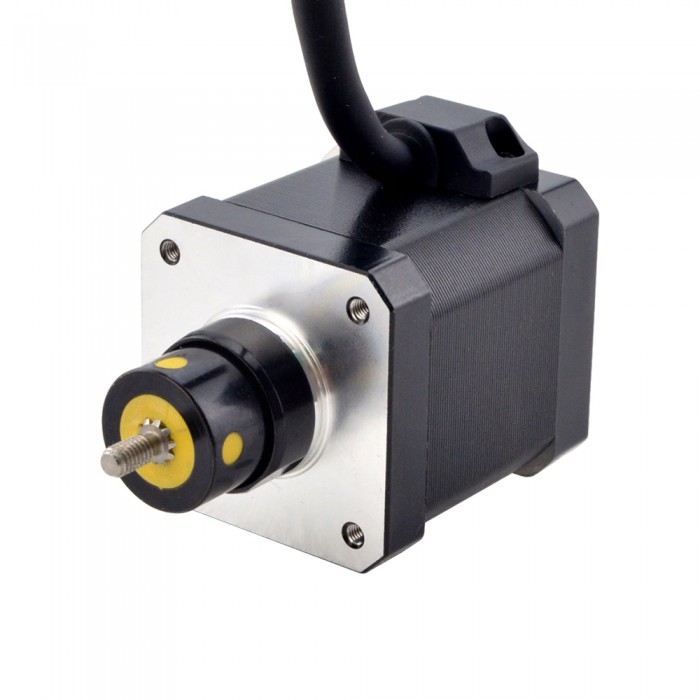

NEMA 17 Captive Acme Linear Actuator Stepper Motor 2.5A 48mm Stack Screw Lead 2.54mm(0.1") Travel 12.7mm

NEMA 17 Captive Acme Linear Actuator Stepper Motor 2.5A 48mm Stack Screw Lead 2.54mm(0.1") Travel 12.7mm
NO.:17C19S2504GF5-013RS
Review: Post a review
Black Friday Special Offer 2022:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 30th, 2022
  • Note:No coupon code needed, please place order directly!
Latest price:$113.68
Buy It Now:$75.79
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $73.35 3%
10 $70.90 6%
50 $68.46 10%
100 $66.01 13%
Add To Cart

NEMA 17 Captive Acme Linear Stepper Motor 2.5A 48mm Stack Screw Lead 2.54mm(0.1") Travel 12.7mm



This model is a Nema 17 Captive ACME screw linear stepper motor with a 48mm body length, 1.8 degree step angle and 2.5A rated current. It is integrated with a 6.35mm(0.25") diameter, 12.7mm(0.5") travel distance, the linear travel is 2.54mm(0.1") per revolution. It has the characteristics of high performance, long life, low noise and high efficiency.



Electrical Specification

Manufacturer Part Number: 17C19S2504GF5-013RS

Motor Type: Captive

Step Angle: 1.8°

Holding Torque: 0.5Nm(70.82oz.in)

Rated Current/phase: 2.5A

Phase Resistance: 0.78ohms

Inductance: 1.5mH±20%(1KHz)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 48mm

Travel Distance: 12.7mm(0.5")

Lead Screw Diameter: Φ6.35mm(0.25")

Lead/Step: 0.0127mm(0.0005")

Lead Travel/Revolution: 2.54mm(0.1")

Number of Leads: 4

Lead Length: 500mm



Connection

A+ A- B+ B-
Red Red/White Green Green/White



Lead Screw End Machining



Anti-Backlash Nut



OYOSTEPPER provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).

There should be a nominal backlash between lead screw and OYOSTEPPER standard plastic nut after millions of cycles. OYOSTEPPER guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, OYOSTEPPER provides spring pressure structure of anti-backlash nut.



Encoders



According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.

Also various resolution can be chosen freely for easier and precise positioning.

All OYOSTEPPER standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.



Brakes



Especially Vertical applications or holding motors from sudden power-off status, OYOSTEPPER standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.



Wiring, Cabling and Connectors



Flying wire leads or connectors

Twisting wire leads

Heat shrink or expandable tubing

Cable housings



Teflon Coated Screw



If customer's applications require greaseless screw and nut combination, OYOSTEPPER offers teflon coated lead screw of stepper linear actuator.

Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.

Teflon coating can be applied in the whole range of lead screw options in OYOSTEPPER and all types of linear actuators such as External, Non-Captive, and Captive.

In addition, Anti-backlash nut also can be combined with teflon coated screw too.

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 17 Captive Acme Linear Actuator Stepper Motor 2.5A 48mm Stack Screw Lead 2.54mm(0.1") Travel 25.4mm
Next: NEMA 14 Captive Acme Linear Stepping Motor 1.5A 47mm Stack Screw Lead 6.35mm(0.25") Travel 50.8mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 1.5
Phase Resistance(ohm) 0.78
Rated Current (A) 2.5
Step Angle(deg.) 1.8
Linear Motor Type Captive
Physical Specification
Body Length(mm) 48
Frame Size(mm) Nema 17 (42 x 42)
Lead Length(mm) 500
Lead Screw Diameter(mm) 6.35
No. of Lead 4
Lead Travel/Revolution(mm) 2.54
Lead Travel/Step(mm) 0.0127
IP Rating 40
