NEMA 11 Captive Acme Lead Screw Linear Actuator 1.0A Bipolar 1.8 Deg 0.1Nm Lead Revolution 5.08mm(0.2") Travel 50.8mm

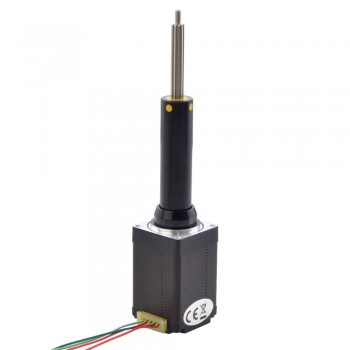

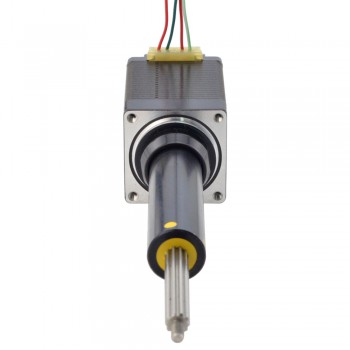

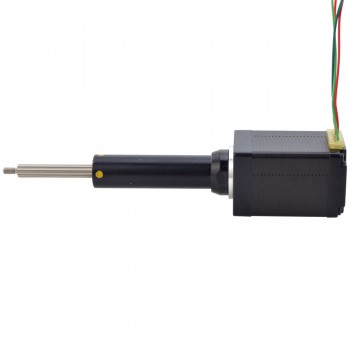

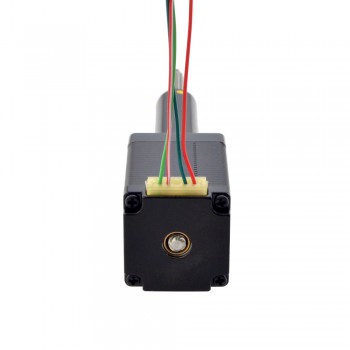

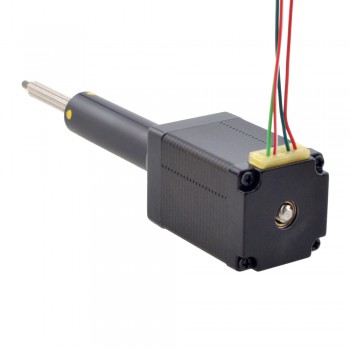

NEMA 11 Captive Acme Linear Stepper Motor 1.0A 46mm Stack Screw Lead 5.08mm(0.2") Travel 50.8mm
This NEMA 11 captive linear stepper has a 46 mm body, 1.8° step, 1.0 A, and 50.8 mm travel (5.08 mm/rev) on a 4.76 mm ACME screw.
Electrical Specification
Manufacturer Part Number: 11C18S1004HD5-051RS
Motor Type: Captive
Step Angle: 1.8°
Holding Torque: 0.1Nm(14.164oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 3.7ohms
Inductance: 3.7mH±20%(1KHz)
Physical Specification
Frame Size: 28 x 28mm
Body Length: 46mm
Travel Distance: 50.8mm(2")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.0254mm(0.001")
Lead Travel/Revolution: 5.08mm(0.2")
Number of Leads: 4
Lead Length: 300mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
Lead Screw End Machining

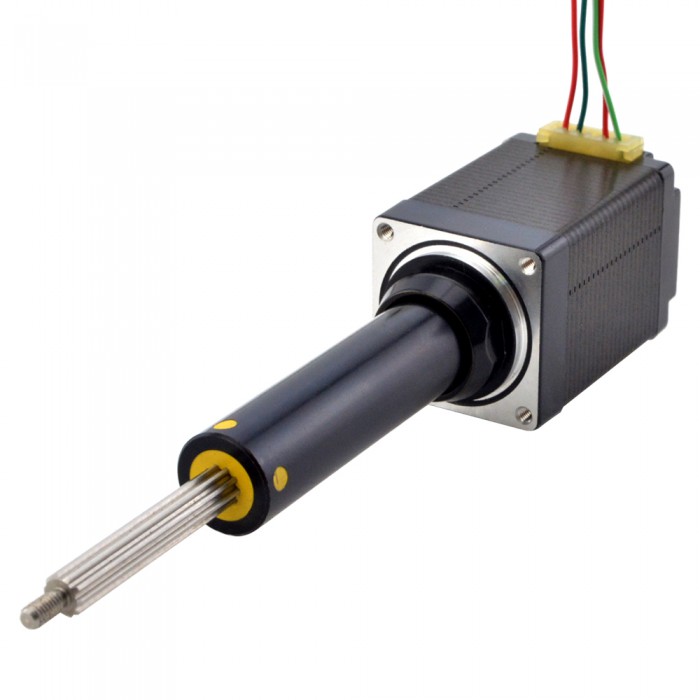

.jpg "NEMA 11 Captive Acme Lead Screw Linear Actuator 1.0A Bipolar 1.8 Deg 0.1Nm Lead Revolution 5.08mm(0.2\") Travel 50.8mm")
| Electrical Specification | |
|---|---|
| Motor Type | Captive |
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 3.7 |
| Phase Resistance(ohm) | 3.7 |
| Rated Current (A) | 1.0 |
| Step Angle(deg.) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 46 |
| Frame Size(mm) | Nema 11 (28 x 28) |
| Lead Length(mm) | 300 |
| Lead Screw Diameter(mm) | 4.76 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 5.08 |
| Lead Travel/Step(mm) | 0.0254 |
| IP Rating | 40 |
