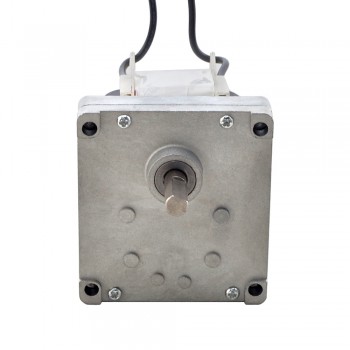

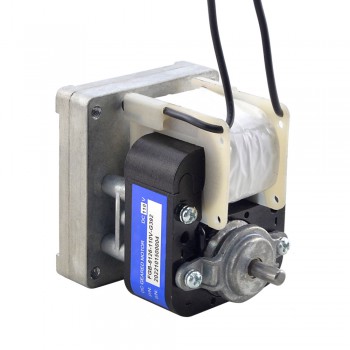

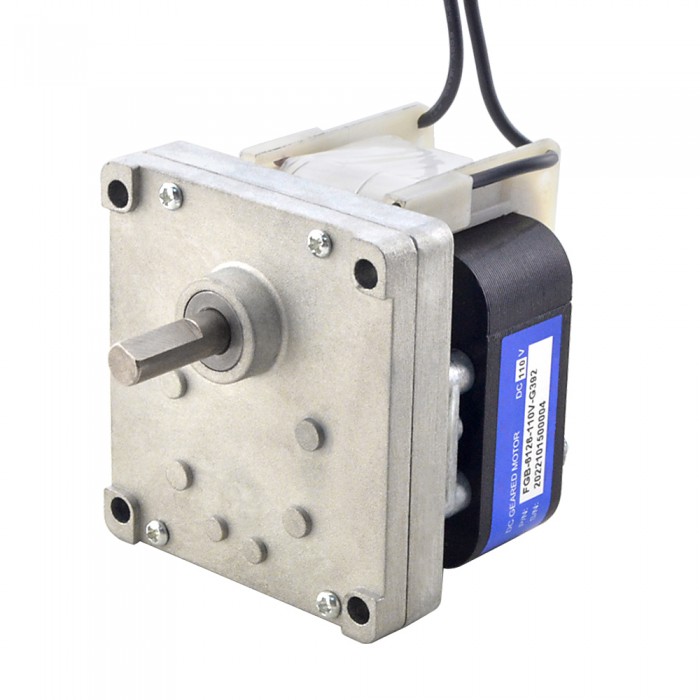

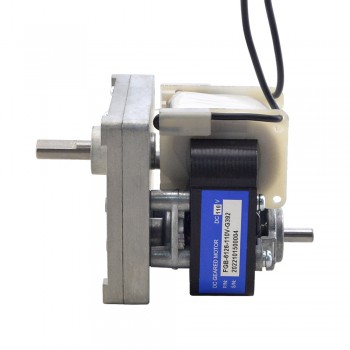

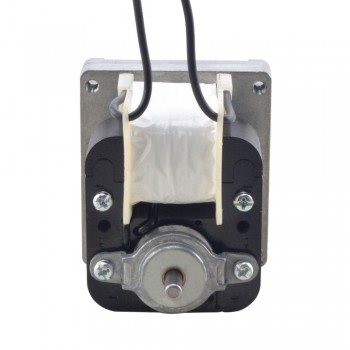

Brushed 110V AC Gear Motor 50Kg.cm/7.8RPM w/ 392:1 Rectangular Spur Gearbox
This is a standard 110 volt brushed AC gear motor, generating 50 kg.cm of torque at 7.8 rpm. It's a small, inexpensive motor suitable for low torque, high speed applications.
Electrical Specification
Part Number: FGB-6126-110V-G392
Rated Voltage: 110V
Rated Torque: 50kg.cm(691.5oz.in)
Rated Current: <=800mA
Rated Speed: 7.8rpm
No-load Current: <=700mA
No-load Speed: 8.6rpm
Rotation Direction: CW/CCW
Motor Type: Brushed AC Motor
Gearbox Specification
Gearbox Type: Rectangular Gearbox
Gear Ratio: 392 : 1
Physical Specification
Motor Size: 76.2 x 69.85 x 26mm
Gearbox Size: 69.85 x 76.2 x 16mm
Front Shaft Diameter: Φ8mm
Front Shaft Length: 22mm
D-cut Length: 16mm
Rear Shaft Diameter: Φ6mm
Rear Shaft Length: 12.5mm
Resources
- Full Datasheet: FGB-6126-110V-G392_Full_Datasheet.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Rated Current (A) | 0.8 |
| Rated Voltage(V) | 110 |
| Rated Torque(kg.cm) | 50 |
| Rated Speed(rpm) | 7.8 |
| Physical Specification | |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 22 |
| Gear Ratio | 392 |
| Output Shaft Type | D-cut |
