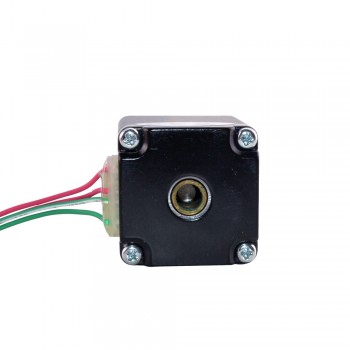

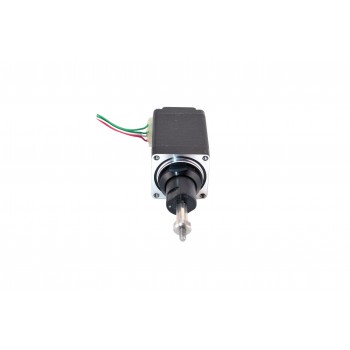

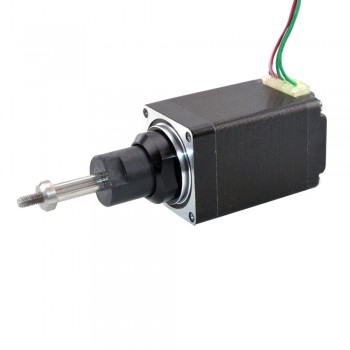

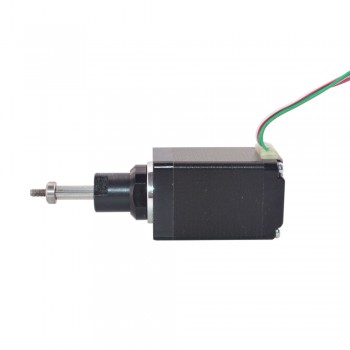

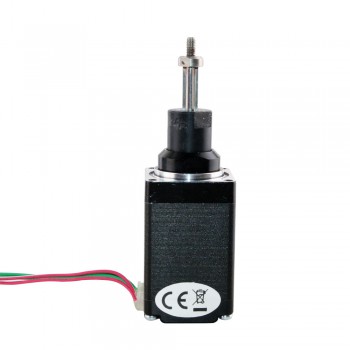

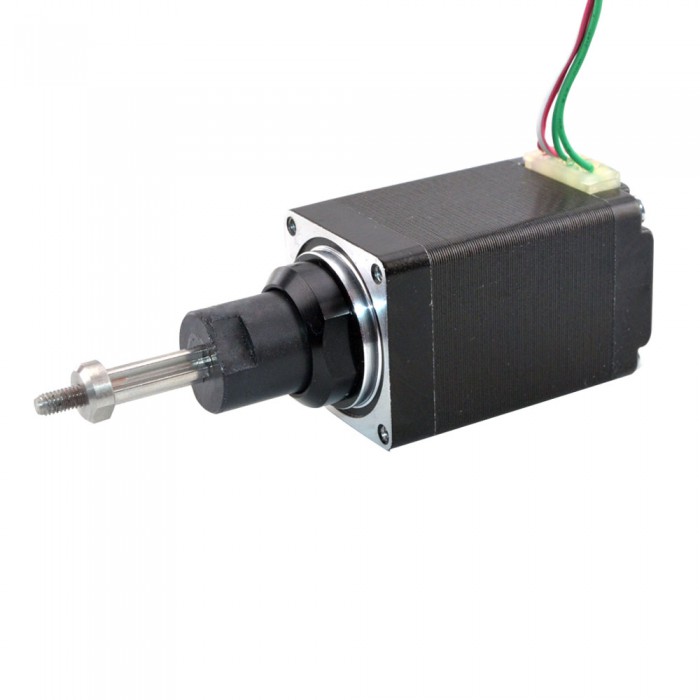

Nema 11 Captive Linear Stepper Motor Bipolar 1.8 Deg 0.35A Lead 0.635mm/0.025" Travel 12.7mm

Nema 11 Captive Linear Stepper Motor Bipolar 1.8 Deg 0.35A Lead 0.635mm/0.025" Travel 12.7mm
NO.:11LS18-03547-127C
Post a review
Our Price:$138.98
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $132.03 5%
5 $129.25 7%
10 $125.08 10%
50 $120.91 13%
Add To Cart
Add To My Favorites
  • Share:

Electrical Specification

Manufacturer Part Number: 11LS18-03547-127C

Motor Type: Captive Linear Stepper

Step Angle: 1.8 deg

Minimal Thrust: 0.8N(300pps)

Rated Current/phase: 0.35A

Phase Resistance: 34.8ohms

Inductance: 35.6mH ± 20%(1KHz)



Physical Specification

Frame Size: 28 x 28mm

Body Length: 46mm

Travel Distance: 12.7mm(0.5")

Lead Screw Diameter: Φ4.76mm(0.187")

Lead/Revolution: 0.635mm(0.025")

Number of Leads: 4

Lead Length: 300mm

Weight: 169g



Connection

A+ A- B+ B-
Red Red/White Green/White Green
Prev: Hollow Shaft Nema 23 Stepper Motor Bipolar 1.8 Deg 1.45 Nm(205.38oz.in) 2.0A Dual Shaft 4 Wires
Next: Nema 11 Non-captive Linear Stepper Motor 1.8 Deg 8.0Ncm 2.4V Bipolar 1.8 Deg 0.75A Lead 4.877mm/0.192" Lead Screw 150mm
Electrical Specification
Motor Type Captive
Inductance(mH) 35.6
Phase Resistance(ohm) 34.8
Rated Current (A) 0.35
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 46
Lead Length(mm) 300
No. of Lead 4
Frame Size(mm) Nema 11 (28 x 28)
