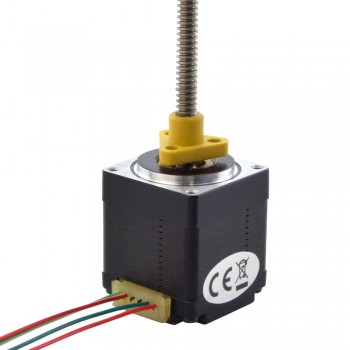

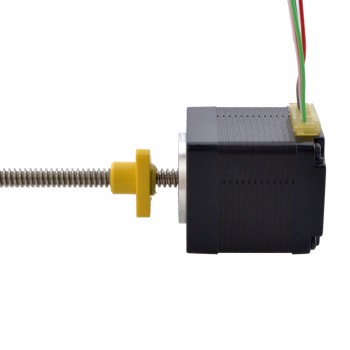

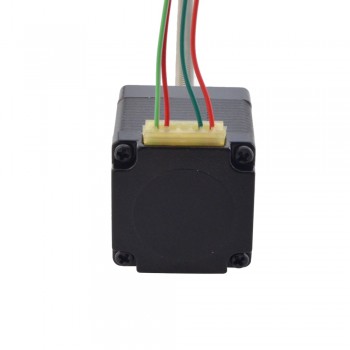

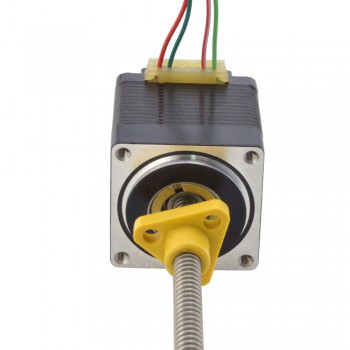

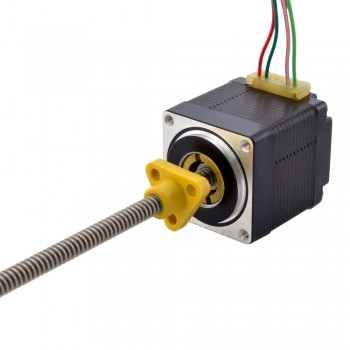

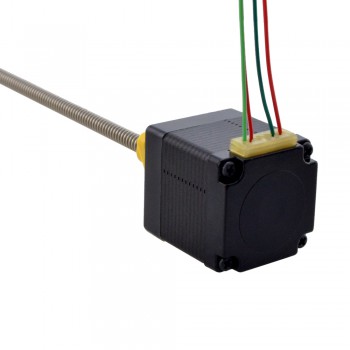

NEMA 11 External Acme Lead Screw Linear Actuator 1.8 Deg 0.05Nm 1.0A 32.2mm Stack Lead Revolution 1.27mm(0.05") Lead Screw 150mm
-
Manuals and Documentation:
Our Price:$42.95
NEMA 11 External Acme Linear Stepper Motor 1.0A 32.2mm Stack Screw Lead 1.27mm(0.05") Lead Length 150mm
This NEMA 11 linear stepper has a 32.2 mm body, 1.8° step, 1 A, and a 150 mm long 4.76 mm ACME screw with a POM nut (1.27 mm/rev).
Electrical Specification
Manufacturer Part Number: 11E13S1004FD5-150RS
Motor Type: External(ACME)
Step Angle: 1.8°
Holding Torque: 0.05Nm(7.08oz.in)
Rated Current/phase: 1A
Phase Resistance: 2.1ohms
Inductance: 1.5mH±20%(1KHz)
Physical Specification
Frame Size: 28 x 28mm
Body Length: 32.2mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.00635mm(0.00025")
Lead Travel/Revolution: 1.27mm(0.05")
Number of Leads: 4
Number of Thread Starts: 1
Lead Length: 300mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |

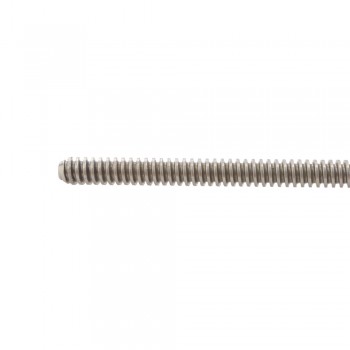

Lead Screw End Machining
.jpg "NEMA 11 External Acme Lead Screw Linear Actuator 1.8 Deg 0.05Nm 1.0A 32.2mm Stack Lead Revolution 1.27mm(0.05\") Lead Screw 150mm")
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 1.5 |
| Phase Resistance(ohm) | 2.1 |
| Rated Current (A) | 1.0 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | External(Acme) |
| Physical Specification | |
| Body Length(mm) | 32.2 |
| Frame Size(mm) | Nema 11 (28 x 28) |
| Lead Length(mm) | 300 |
| Lead Screw Diameter(mm) | 4.76 |
| Lead Screw Length(mm) | 150 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 1.27 |
| Lead Travel/Step(mm) | 0.00635 |
| IP Rating | 40 |
