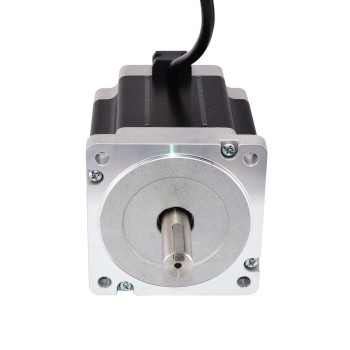

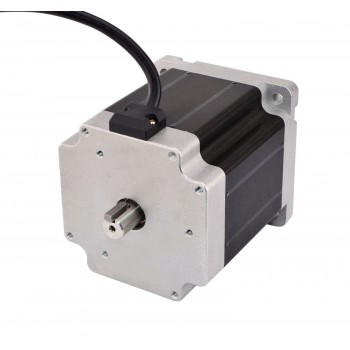

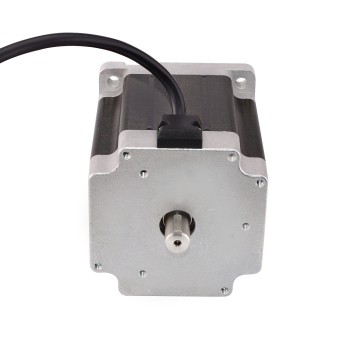

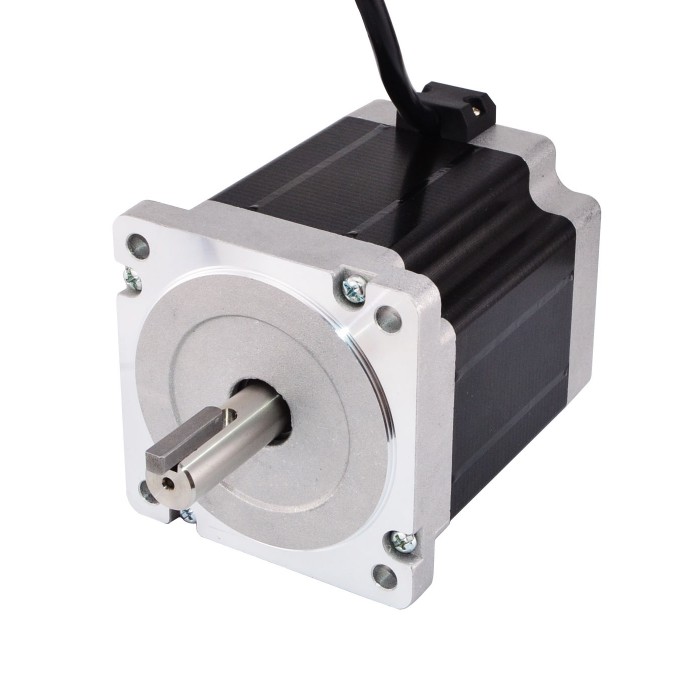

Keyway Dual Shaft Nema 34 Stepper Motor 7.07Nm (1001oz.in) 86x86x98mm 4 Wires

Keyway Dual Shaft Nema 34 Stepper Motor 7.07Nm (1001oz.in) 86x86x98mm 4 Wires
NO.:34HS38-4204D
Post a review
Special Offer in June 2023:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 10th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$61.62
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $58.54 5%
10 $57.31 7%
50 $55.46 10%
100 $52.38 15%
Add To Cart

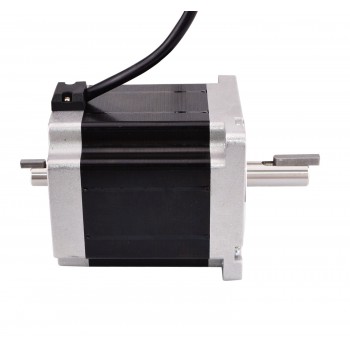

This is a dual-shaft motor with a 15mm long rear shaft, and the shaft diameter is 12mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.

Electrical Specification

  • Manufacturer Part Number: 34HS38-4204D
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 7.07Nm(1001oz.in)
  • Rated Current/phase: 4.24A
  • Voltage: 3.39V
  • Phase Resistance: 0.8ohms
  • Inductance: 8mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 86 x 86mm
  • Body Length: 98mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 37mm
  • Key-Way Length: 25mm
  • Rear Shaft Length: 15mm
  • Rear Shaft Diameter: 12mm
  • Number of Leads: 4
  • Lead Length: 500mm

Connection

A+
A-
B+
B-
Red
Black
Yellow
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Dual Shaft Nema 34 CNC Stepper Motor 8.5Nm (34HS46-5004D) 5A 86x114mm CNC Router Mill Lathe
Next: Keyway Dual Shaft Nema 34 CNC Stepper Motor 8.5Nm (1204oz.in) 5A 86x114mm
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 707
Holding Torque (oz.in) 1001
Inductance(mH) 8
Phase Resistance(ohm) 0.8
Rated Current (A) 4.24
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 98
Frame Size(mm) 86x86
Single Shaft/Dual Shaft Dual Shaft
Shaft Type Key-Way
Shaft Diameter(mm) 14
Shaft Length(mm) 37
No. of Lead 4
Lead Length(mm) 500
Weight(g) 3400
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
