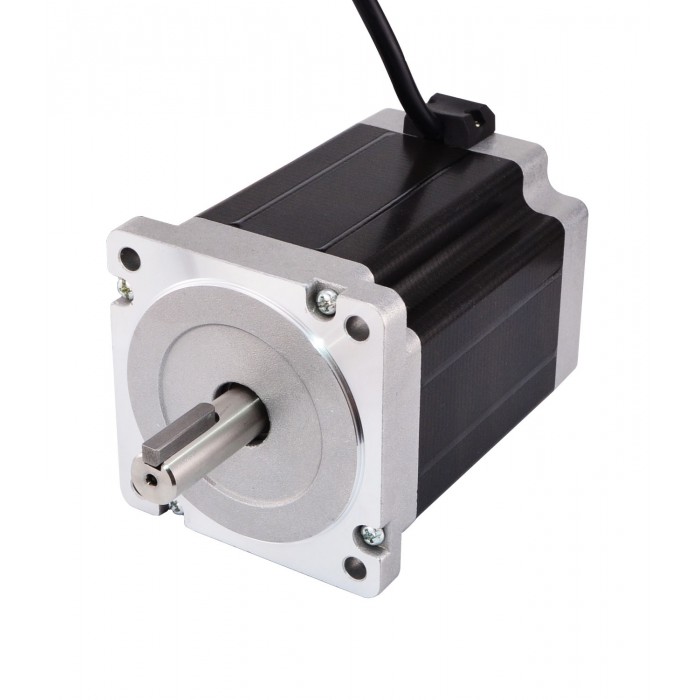

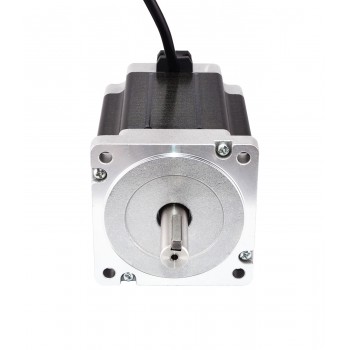

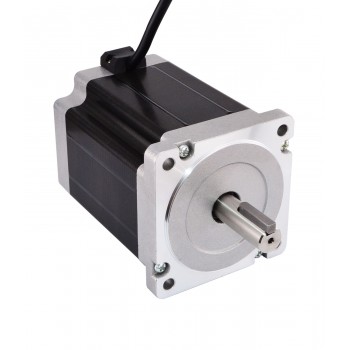

Keyway Dual Shaft Nema 34 CNC Stepper Motor Bipolar 1.8 Deg 5V 8.5Nm (1204oz.in) 5A 86x114mm 4 Wires

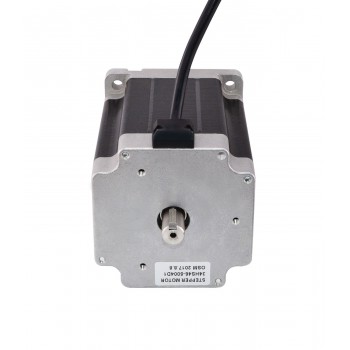

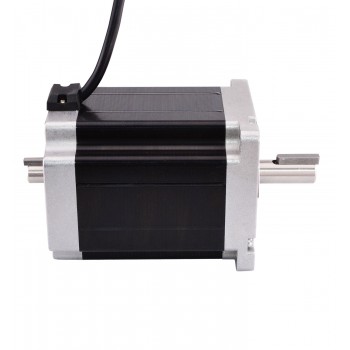

This is a dual-shaft motor with a 15mm long rear shaft, and the shaft diameter is 12mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.
Electrical Specification
Manufacturer Part Number: 34HS46-5004D1
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 8.5Nm(1204oz.in)
Rated Current/phase: 5A
Voltage: 5V
Phase Resistance: 1ohms
Inductance: 11mH ± 20%(1KHz)
Physical Specification
Frame Size: 86 x 86mm
Body Length: 114mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Key-Way Length: 25mm
Rear Shaft Length: 15mm
Rear Shaft Diameter: 12mm
Number of Leads: 4
Lead Length: 500mm
Connection
| A+ | A- | B+ | B- |
| Red | Black | Yellow | Blue |
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 850 |
| Holding Torque (oz.in) | 1203.7 |
| Inductance(mH) | 11 |
| Phase Resistance(ohm) | 1 |
| Rated Current (A) | 5 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 114 |
| Frame Size(mm) | 86x86 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 4000 |
| Shaft Type | Keyway |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
