NEMA 17 External Acme Stepper Motor Linear Actuator 1.5A Bipolar 1.8 Deg 0.3Nm Lead Revolution 1.27mm(0.05") Lead Screw 150mm
-
Manuals and Documentation:
Our Price:$39.16
NEMA 17 External Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 1.27mm(0.05") Lead Length 150mm

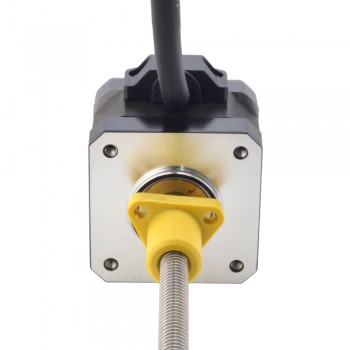

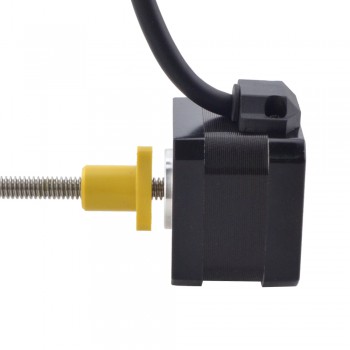

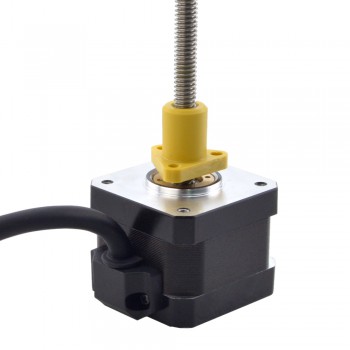

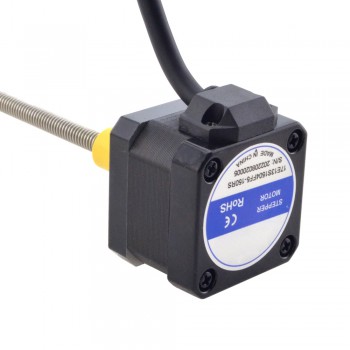

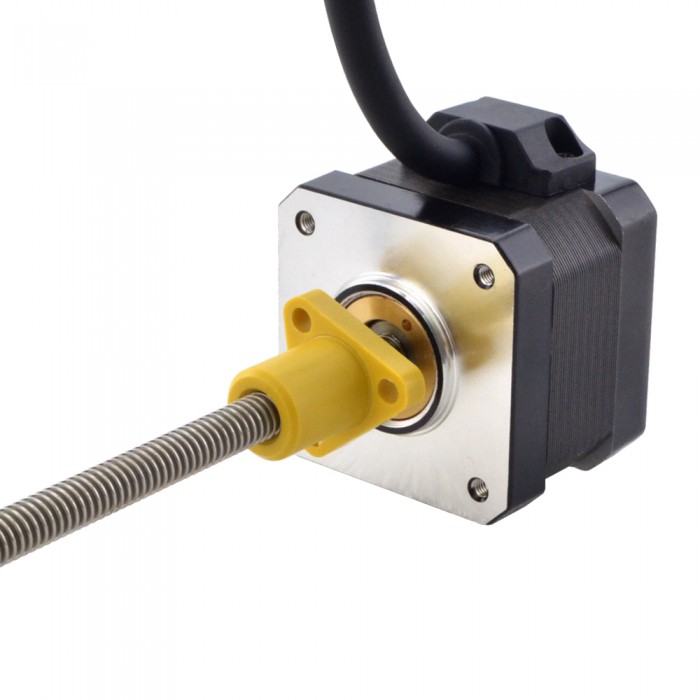

This NEMA 17 linear stepper has a 34 mm body, 1.8° step, and 1.5 A rating. It features a 150 mm, 6.35 mm ACME screw with POM nut (1.27 mm/rev).
Electrical Specification

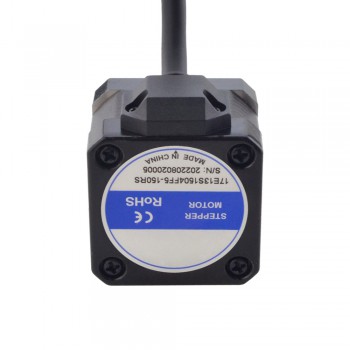

Manufacturer Part Number: 17E13S1504FF5-150RS
Motor Type: External(ACME)
Step Angle: 1.8°
Holding Torque: 0.3Nm(42.48oz.in)
Rated Current/phase: 1.5A
Phase Resistance: 1.7ohms
Inductance: 2.5mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 150mm(5.9055")

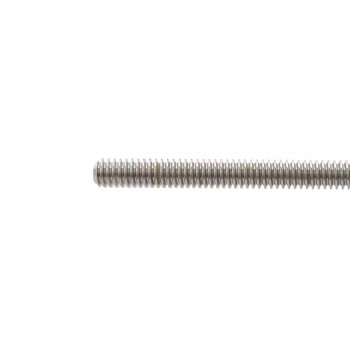

Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.00635mm(0.00025")
Lead Travel/Revolution: 1.27mm(0.05")
Number of Leads: 4
Number of Thread Starts: 1
Lead Length: 500mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 2.5 |
| Phase Resistance(ohm) | 1.7 |
| Rated Current (A) | 1.5 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | External(Acme) |
| Physical Specification | |
| Body Length(mm) | 34 |
| Frame Size(mm) | Nema 17 (42 x 42) |
| Lead Length(mm) | 500 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 150 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 1.27 |
| Lead Travel/Step(mm) | 0.00635 |
| IP Rating | 40 |
