Nema 17 Economy Linear Stepper Motor External 34mm Stack 0.4A Lead 8mm/0.31496" Length 32mm for DIY 3D Printer Kits

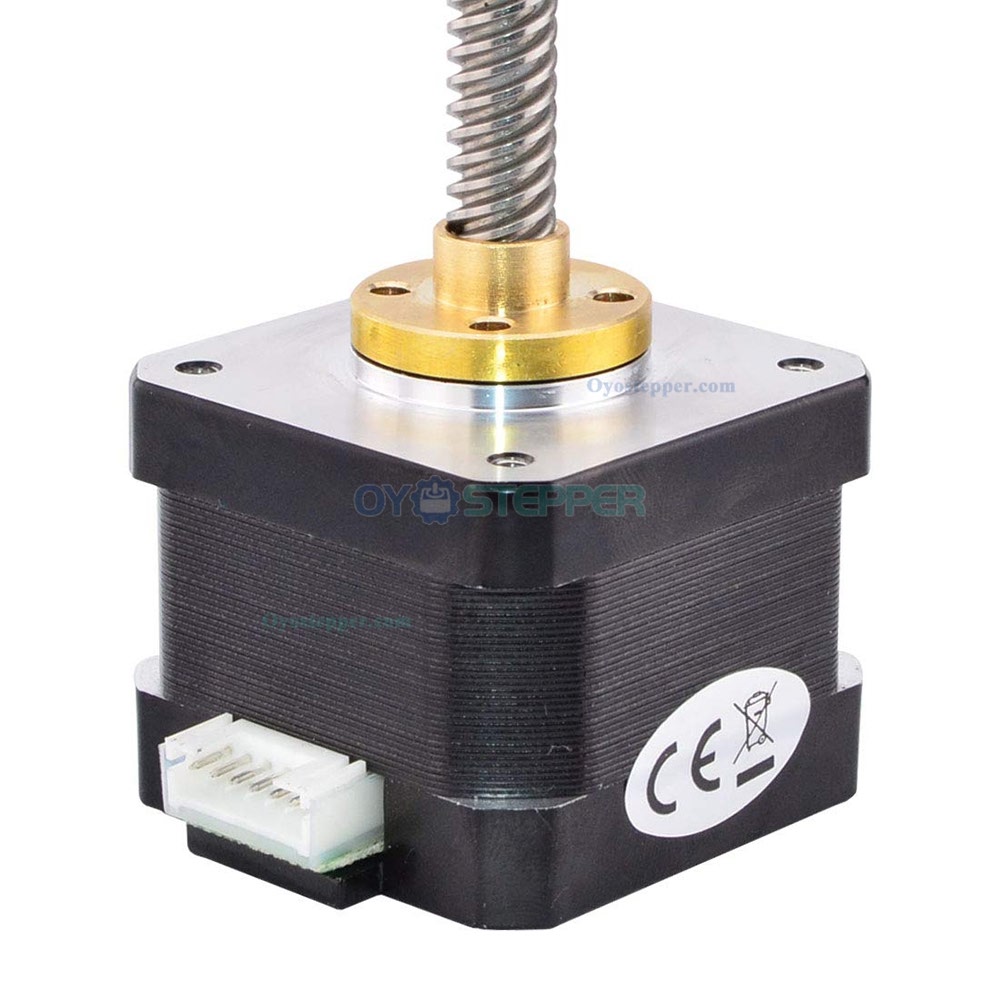

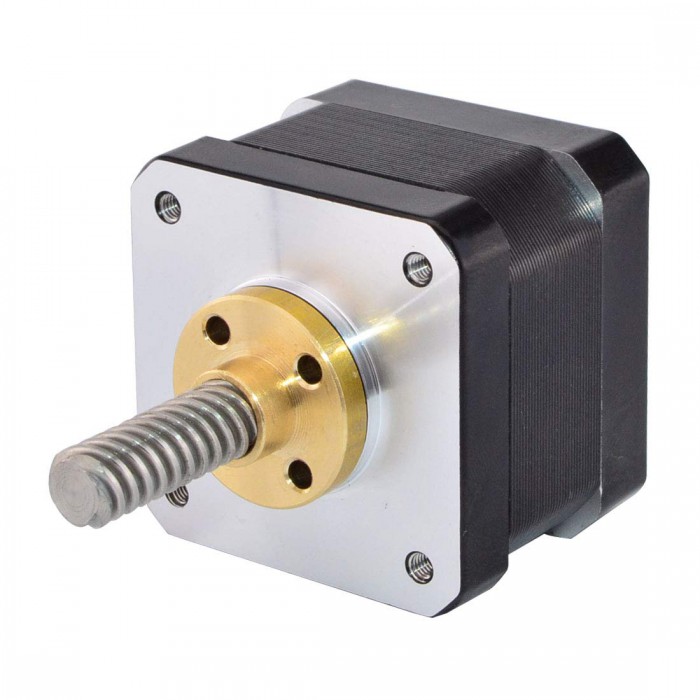

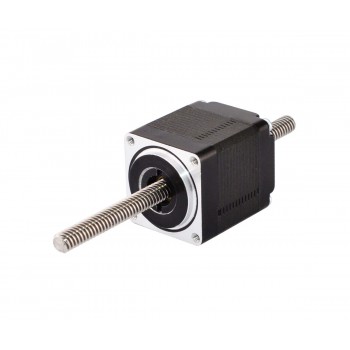

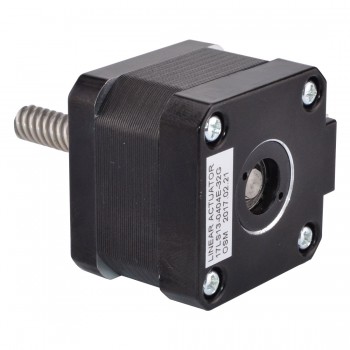

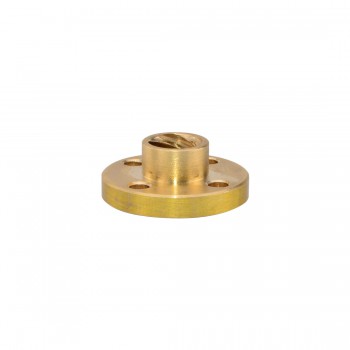

This model is economy linear stepper motor which named Nema 17 external linear actuator, the motor part is 34mm 1.8 degree 0.4A Nema 17 stepper motor. It was integrated with 32mm Tr8x8 threaded rod and a Brass screw nut move along the threaded rod.
Electrical Specification
- Manufacturer Part Number: 17LS13-0404E-32G
- Motor Type: External Linear Stepper
- Step Angle: 1.8 deg
- Holding Torque: 26Ncm(36.8oz.in)
- Rated Current/phase: 0.4A
- Phase Resistance: 30ohms
- Voltage: 12V
- Inductance: 37mH ± 20%(1KHz)
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 34mm

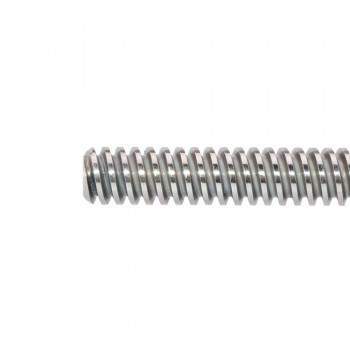

- Lead Screw Length: 32mm（1.2598"）
- Lead Screw Diameter: Φ8mm（0.315"）
- Lead /Step: 0.04mm(0.0015748" )
- Lead/Revolution: 8mm（0.315"）
- Number of Leads: 4
- Lead Length: 400mm
- Weight : 400g

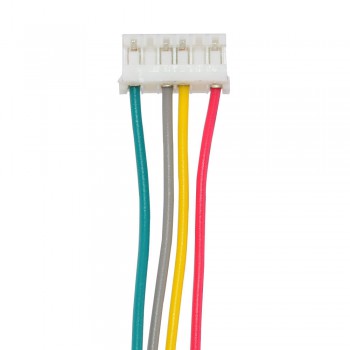

Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Brown
|
Yellow
|
Green
|
Resources
- Full Datasheet: 17LS13-0404E-32G.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 26 |
| Holding Torque (oz.in) | 36.8 |
| Inductance(mH) | 37 |
| Motor Type | External |
| Phase Resistance(ohm) | 30 |
| Rated Current (A) | 0.4 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 34 |
| Frame Size(mm) | 42x42 |
| Lead Screw Diameter(mm) | 8 |
| Lead Screw Length(mm) | 32 |
| Lead Revolution(mm) | 8 |
| Linear Travel / Step(mm) | 0.04 |
| No. of Lead | 4 |
| Lead Length(mm) | 400 |
