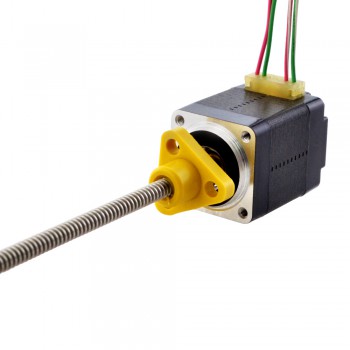

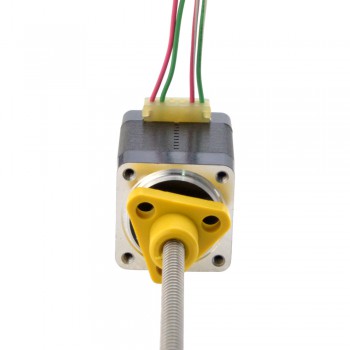

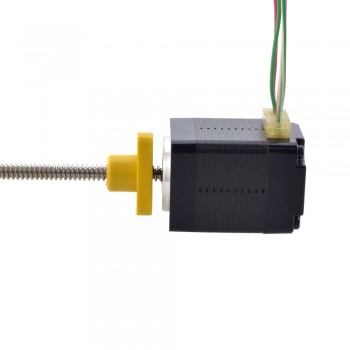

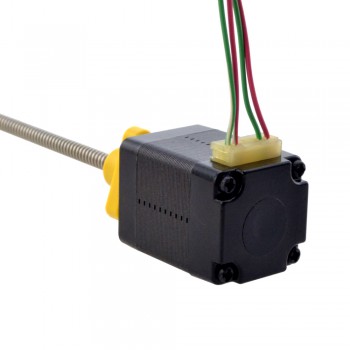

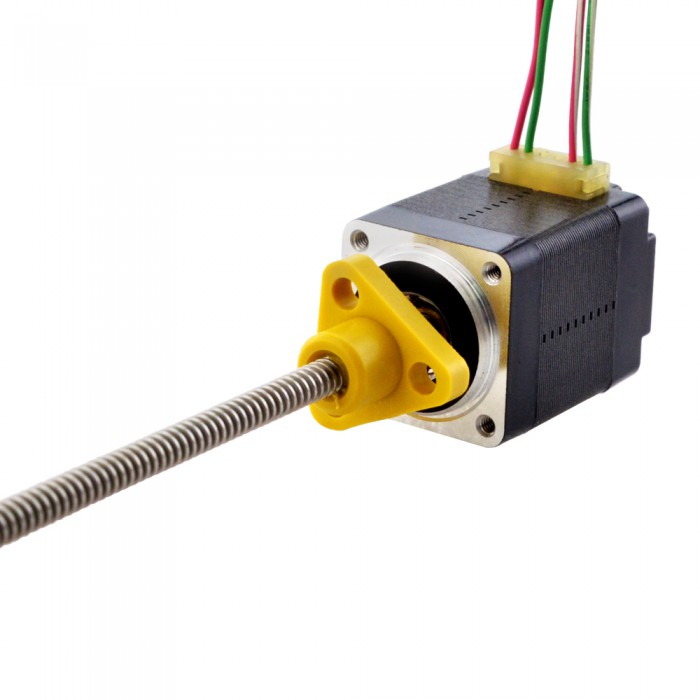

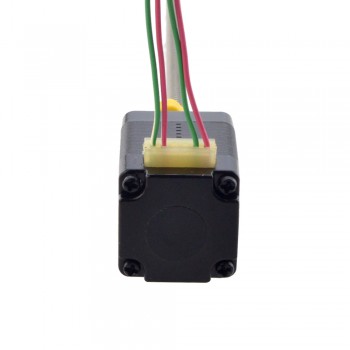

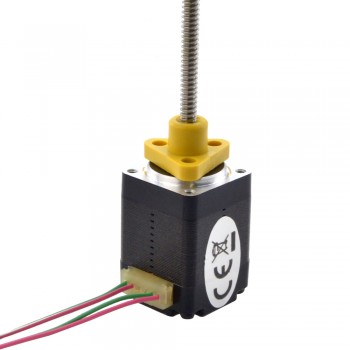

NEMA 8 External Acme Hybrid Stepper Linear Actuator 1.8 Deg 0.015Nm 0.5A 28.2mm Stack Lead Revolution 1mm(0.03937") Lead Screw 100mm

NEMA 8 External Acme Hybrid Stepper Linear Actuator 1.8 Deg 0.015Nm 0.5A 28.2mm Stack Lead Revolution 1mm(0.03937") Lead Screw 100mm
NO.:8E11S0504SC5-100RS
Post a review
China National Day Special Offer:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till October 7th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$45.47
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $43.20 5%
10 $42.29 7%
50 $40.92 10%
100 $39.56 13%
Add To Cart

NEMA 8 External Acme Linear Stepper Motor 0.5A 28.2mm Stack Screw Lead 1mm(0.03937") Lead Length 100mm



This model is a Nema 8 ACME screw linear stepper motor with a 30mm body length, 1.8 degree step angle and 0.5A rated current. It is integrated with a 3.5mm(0.1378") diameter, 100mm(3.937") ACME screw length and a POM screw nut, the linear travel is 1mm(0.03937") per revolution. It has the characteristics of high performance, long life, low noise and high efficiency.



Electrical Specification

Manufacturer Part Number: 8E11S0504SC5-100RS

Motor Type: External(ACME)

Step Angle: 1.8°

Holding Torque: 0.015Nm(2.12oz.in)

Rated Current/phase: 0.5A

Phase Resistance: 5ohms

Inductance: 1.5mH±20%(1KHz)



Physical Specification

Frame Size: 20 x 20mm

Body Length: 30mm

Lead Screw Length: 100mm(3.937")

Lead Screw Diameter: Φ3.5mm(0.1378")

Lead/Step: 0.005mm(0.0001969")

Lead Travel/Revolution: 1mm(0.03937")

Number of Leads: 4

Number of Thread Starts: 1

Lead Length: 300mm



Connection

A+ A- B+ B-
Red Red/White Green Green/White



Resources

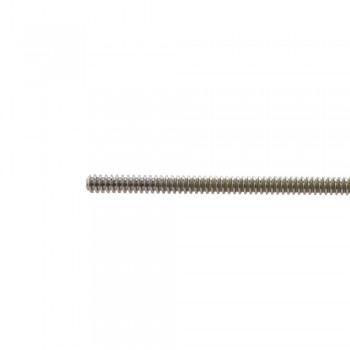

Lead Screw End Machining

NEMA 8 External Acme Hybrid Stepper Linear Actuator 1.8 Deg 0.015Nm 0.5A 28.2mm Stack Lead Revolution 1mm(0.03937



Anti-Backlash Nut



OYOSTEPPER provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).

There should be a nominal backlash between lead screw and OYOSTEPPER standard plastic nut after millions of cycles. OYOSTEPPER guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, OYOSTEPPER provides spring pressure structure of anti-backlash nut.

NEMA 8 External Acme Hybrid Stepper Linear Actuator 1.8 Deg 0.015Nm 0.5A 28.2mm Stack Lead Revolution 1mm(0.03937



Encoders

NEMA 8 External Acme Hybrid Stepper Linear Actuator 1.8 Deg 0.015Nm 0.5A 28.2mm Stack Lead Revolution 1mm(0.03937



According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.

Also various resolution can be chosen freely for easier and precise positioning.

All OYOSTEPPER standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.



Brakes



Especially Vertical applications or holding motors from sudden power-off status, OYOSTEPPER standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

NEMA 8 External Acme Hybrid Stepper Linear Actuator 1.8 Deg 0.015Nm 0.5A 28.2mm Stack Lead Revolution 1mm(0.03937



Wiring, Cabling and Connectors

NEMA 8 External Acme Hybrid Stepper Linear Actuator 1.8 Deg 0.015Nm 0.5A 28.2mm Stack Lead Revolution 1mm(0.03937



Flying wire leads or connectors

Twisting wire leads

Heat shrink or expandable tubing

Cable housings



Teflon Coated Screw



If customer's applications require greaseless screw and nut combination, OYOSTEPPER offers teflon coated lead screw of stepper linear actuator.

Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.

Teflon coating can be applied in the whole range of lead screw options in OYOSTEPPER and all types of linear actuators such as External, Non-Captive, and Captive.

In addition, Anti-backlash nut also can be combined with teflon coated screw too.

NEMA 8 External Acme Hybrid Stepper Linear Actuator 1.8 Deg 0.015Nm 0.5A 28.2mm Stack Lead Revolution 1mm(0.03937

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 8 Captive Acme Hybrid Stepper Linear Actuator 0.5A 1.8 Deg 0.02Nm 1.8 Deg 38.2mm Stack Lead Revolution 2mm(0.07874") Travel 38.2mm
Next: NEMA 8 External Acme Stepper Motor Linear Actuator 1.8 Deg 0.015Nm(2.12oz.in) 0.5A 28.2mm Stack Lead Revolution 2mm(0.07874") Lead Screw 100mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 1.5
Phase Resistance(ohm) 5
Rated Current (A) 0.5
Step Angle(deg.) 1.8
Linear Motor Type External(Acme)
Physical Specification
Body Length(mm) 30
Frame Size(mm) Nema 08 (20 x 20)
Lead Length(mm) 300
Lead Screw Diameter(mm) 3.5
Lead Screw Length(mm) 100
No. of Lead 4
Lead Travel/Revolution(mm) 1
Lead Travel/Step(mm) 0.005
IP Rating 40
