Nema 11 External Stepper Motor Bipolar 1.8 Deg 0.42A 5V Lead Revolution 1.27mm/0.05" Lead Screw 150mm
- Manuals and Documentation: Full Datasheet:
Our Price:$73.95
Nema 11 External Stepper Motor Bipolar 1.8 Deg 0.42A 5V Lead Revolution 1.27mm/0.05" Lead Screw 150mm

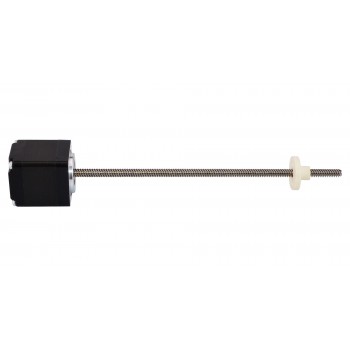

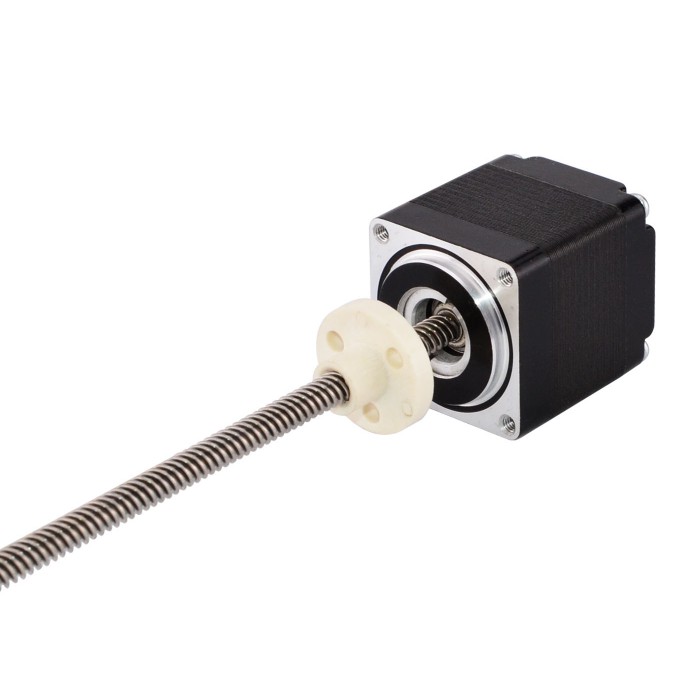

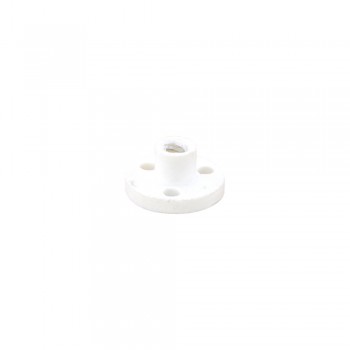

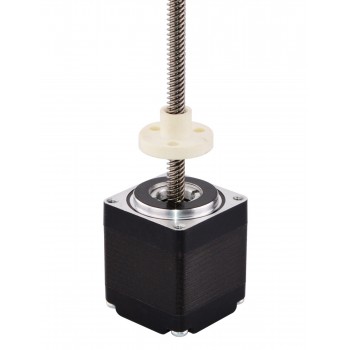

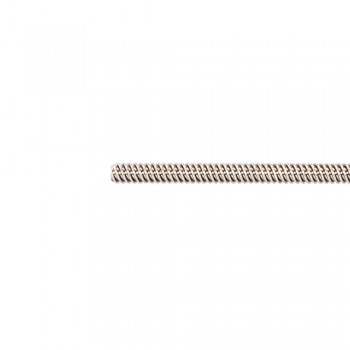

Nema 11 linear stepper motor. 32 mm body, 1.8° step angle, 0.42 A. Includes 4.76 mm (0.1874") diameter, 150 mm (5.9055") length lead screw and POM screw nut. Linear travel: 1.27 mm (0.05") per revolution.
Electrical Specification
Manufacturer Part Number: 11LS13-04249-150E
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 43N (300pps)
Rated Current/phase: 0.42A
Phase Resistance: 11.9ohms
Voltage: 5V
Inductance: 6.7mH±20%(1KHz)
Physical Specification
Frame Size: 28 x 28mm
Body Length: 32mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.00635mm(0.00025")
Lead Travel/Revolution: 1.27mm(0.05")
Number of Leads: 4
Lead Length: 500mm
Weight: 119g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 6 |
| Minimal Thrust(N) | 43 |
| Motor Type | External |
| Phase Resistance(ohm) | 11.4 |
| Rated Current (A) | 0.42 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 32.2 |
| Lead Screw Diameter(mm) | 4.76 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 1.27 |
| Linear Travel / Step(mm) | 0.00635 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 11 (28 x 28) |
