Nema 17 External Stepper Motor Linear Actuator 1.8 Deg 2.8V 1.68A 44Ncm(62.3oz.in) 4 Wires

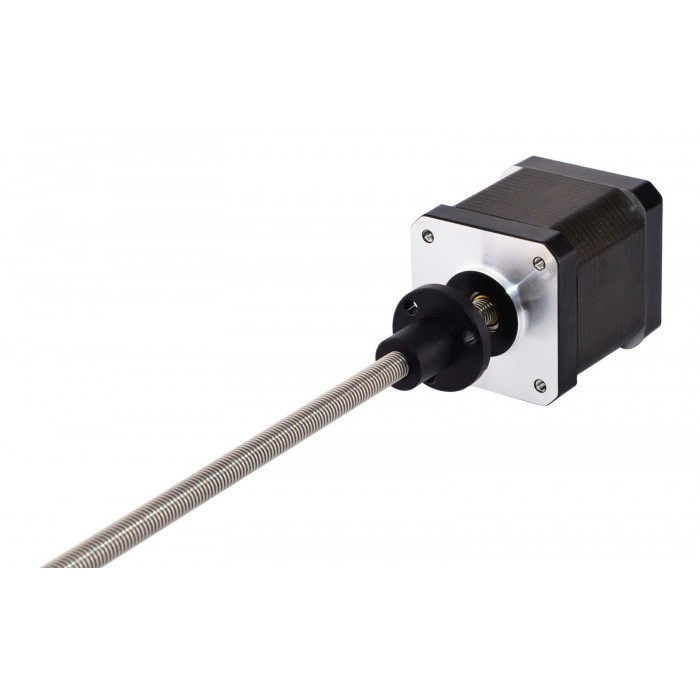

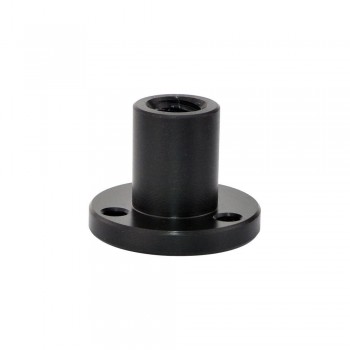

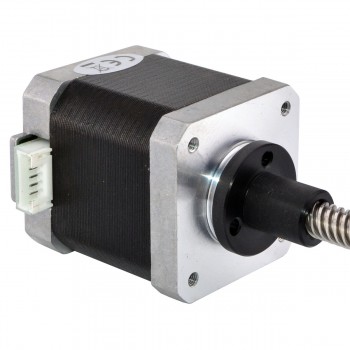

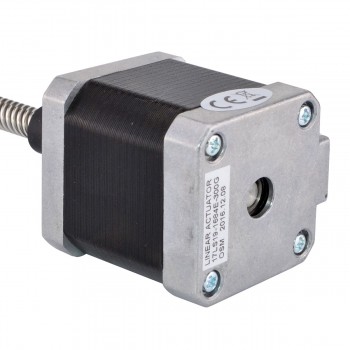

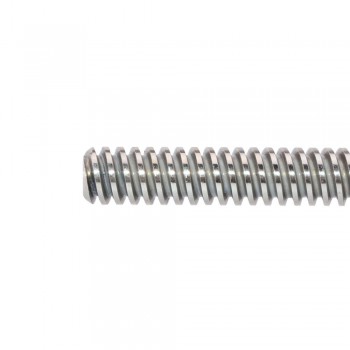

This model is economy linear stepper motor which named Nema 17 external linear actuator, the motor part is 48mm 1.8 degree 1.68A Nema 17 stepper motor. It was integrated with 300mm Tr8x8 threaded rod and a POM screw nut move along the threaded rod.
Electrical Specification
Manufacturer Part Number: 17LS19-1684E-300G
Motor Type: External Linear Stepper
Step Angle: 1.8 deg
Holding Torque: 44Ncm(62.3oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.65ohms
Voltage: 2.8V
Inductance: 3mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 300mm（11.811"）
Lead Screw Diameter: Φ8mm（0.315"）
Lead /Step: 0.04mm(0.0015748" )
Lead/Revolution: 8mm（0.315"）
Number of Leads: 4
Lead Length: 500mm
Weight : 400g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Brown
|
Yellow
|
Green
|
Resources
Full Datasheet: 17LS19-1684E-300G.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 44 |
| Holding Torque (oz.in) | 62.3 |
| Inductance(mH) | 2.8 |
| Motor Type | External |
| Phase Resistance(ohm) | 1.65 |
| Rated Current (A) | 1.68 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 48 |
| Lead Screw Diameter(mm) | 8 |
| Lead Screw Length(mm) | 300 |
| Lead Revolution(mm) | 8 |
| Linear Travel / Step(mm) | 0.04 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Frame Size(mm) | Nema 17 (42 x 42) |
