NEMA 17 External Acme Stepper Motor Linear Actuator 1.5A Bipolar 1.8 Deg 0.3Nm Lead Revolution 25.4mm(1") Lead Screw 150mm

NEMA 17 External Acme Stepper Motor Linear Actuator 1.5A Bipolar 1.8 Deg 0.3Nm Lead Revolution 25.4mm(1") Lead Screw 150mm
NO.:17E13S1504YF5-150RS
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$39.16
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $37.20 5%
10 $36.42 7%
50 $35.24 10%
100 $34.07 13%
Add To Cart

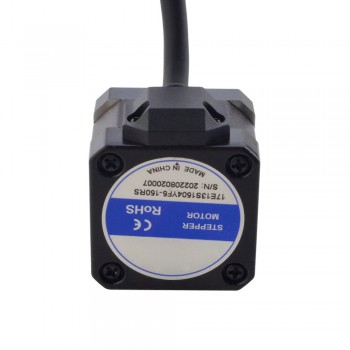

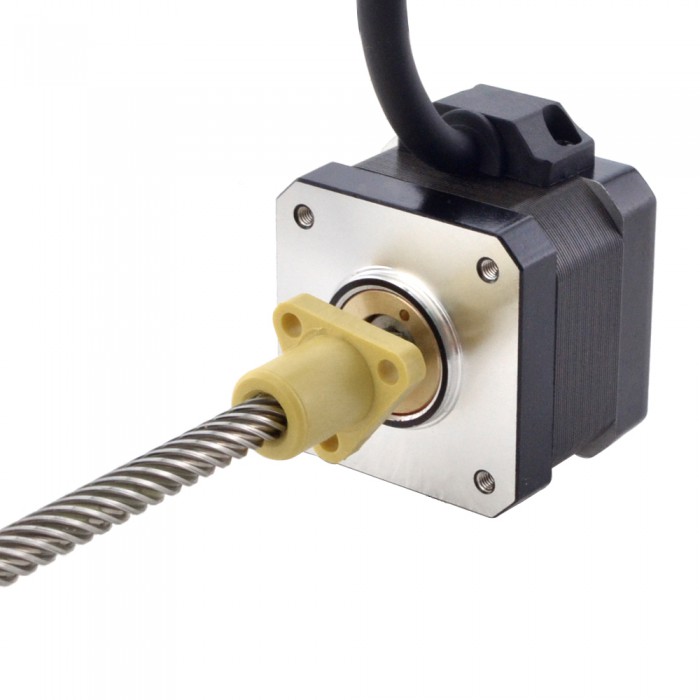

NEMA 17 External Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 25.4mm(1") Lead Length 150mm

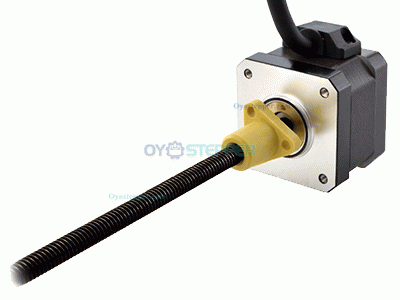

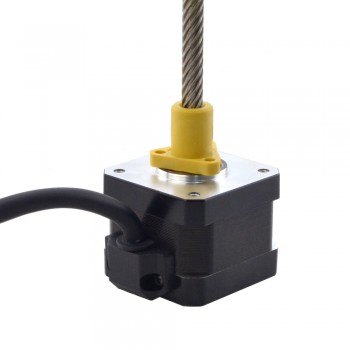

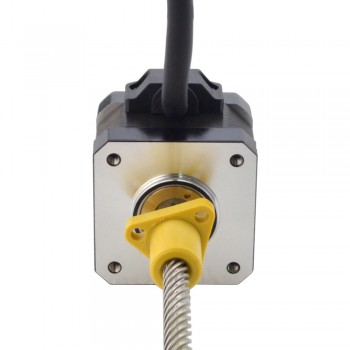

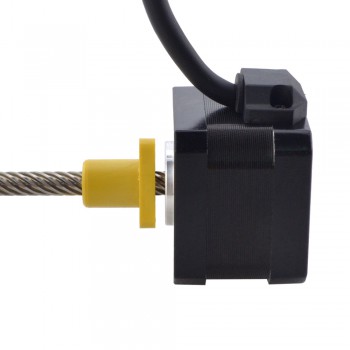

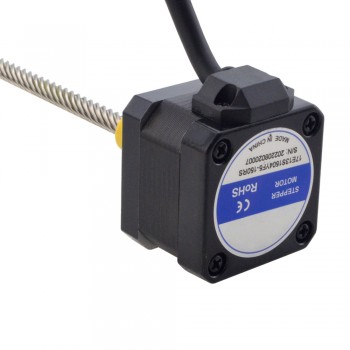

This model is a Nema 17 ACME screw linear stepper motor with a 34mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a Φ6.35mm(0.25") diameter, 150mm(5.9055") ACME screw length and a POM screw nut, the linear travel is 25.4mm(1") per revolution.



Electrical Specification

Manufacturer Part Number: 17E13S1504YF5-150RS

Motor Type: External(ACME)

Step Angle: 1.8°

Holding Torque: 0.3Nm(42.48oz.in)

Rated Current/phase: 1.5A

Phase Resistance: 1.7ohms

Inductance: 2.5mH±20%(1KHz)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 34mm

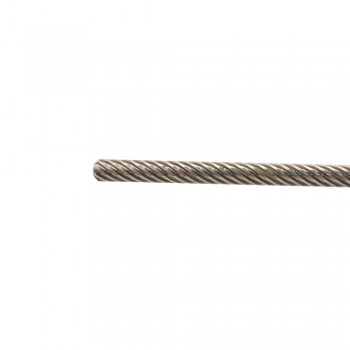

Lead Screw Length: 150mm(5.9055")

Lead Screw Diameter: Φ6.35mm(0.25")

Lead/Step: 0.127mm(0.005")

Lead Travel/Revolution: 25.4mm(1")

Number of Leads: 4

Number of Thread Starts: 8

Lead Length: 500mm

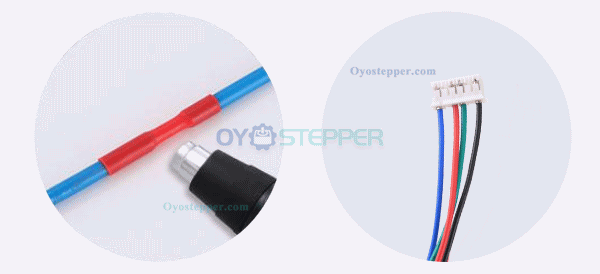

Connection

A+ A- B+ B-
Red Red/White Green Green/White



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 17 External Acme Stepper Motor Linear Actuator Bipolar 1.5A 1.8 Deg 0.3Nm Lead Revolution 2.54mm(0.1") Lead Screw 150mm
Next: NEMA 17 External Acme Linear Stepper Motor Actuator 1.8 Deg 0.3Nm 1.5A Bipolar 1.8 Deg Lead Revolution 6.35mm(0.25") Lead Screw 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 2.5
Phase Resistance(ohm) 1.7
Rated Current (A) 1.5
Step Angle(deg.) 1.8
Linear Motor Type External(Acme)
Physical Specification
Body Length(mm) 34
Frame Size(mm) Nema 17 (42 x 42)
Lead Length(mm) 500
Lead Screw Diameter(mm) 6.35
Lead Screw Length(mm) 150
No. of Lead 4
Lead Travel/Revolution(mm) 25.4
Lead Travel/Step(mm) 0.127
IP Rating 40
