NEMA 17 External Acme Linear Stepper Motor Actuator 1.8 Deg 0.5Nm 2.5A 48mm Stack Lead Revolution 1.27mm(0.05") Lead Screw 150mm
NEMA 17 External Acme Linear Stepper Motor 2.5A 48mm Stack Screw Lead 1.27mm(0.05") Lead Length 150mm

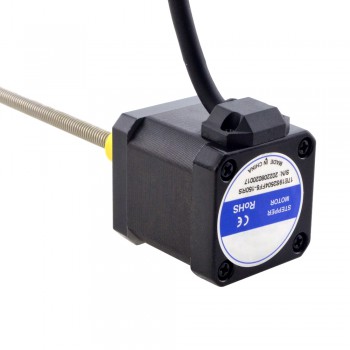

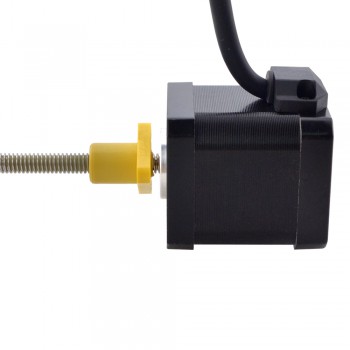

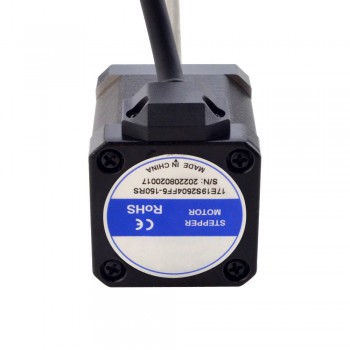

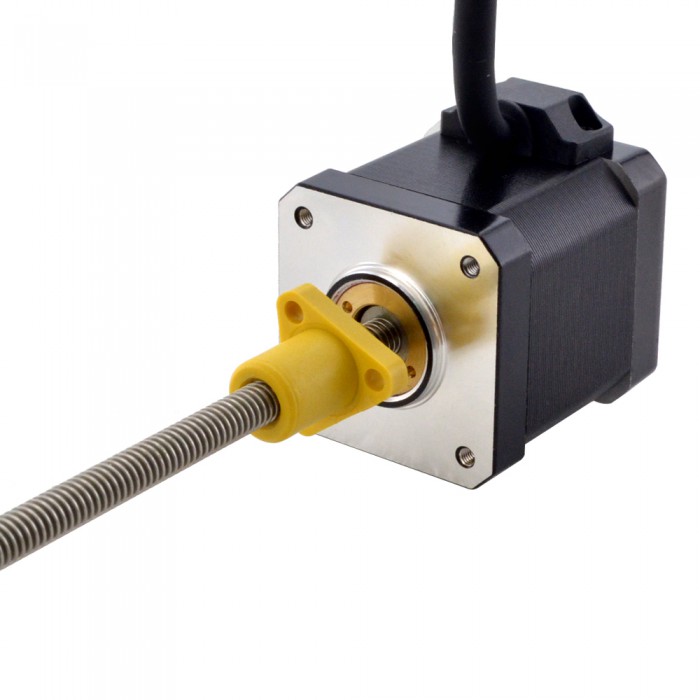

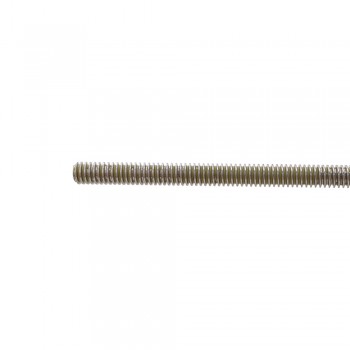

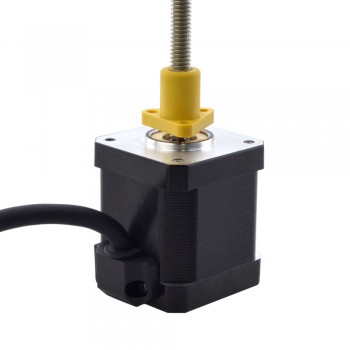

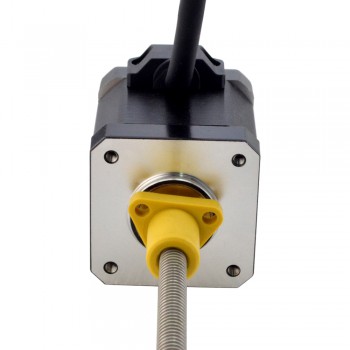

This model is a Nema 17 ACME screw linear stepper motor with a 48mm body length, 1.8 degree step angle and 2.5A rated current. It is integrated with a Φ6.35mm(0.25") diameter, 150mm(5.9055") ACME screw length and a POM screw nut, the linear travel is 1.27mm(0.05") per revolution.
Electrical Specification
Manufacturer Part Number: 17E19S2504FF5-150RS
Motor Type: External(ACME)
Step Angle: 1.8°
Holding Torque: 0.5Nm(70.82oz.in)
Rated Current/phase: 2.5A
Phase Resistance: 0.8ohms
Inductance: 1.8mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.00635mm(0.00025")
Lead Travel/Revolution: 1.27mm(0.05")
Number of Leads: 4
Number of Thread Starts: 1
Lead Length: 500mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
Resources
17E19S2504FF5-150RS_Full_Datasheet.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 1.8 |
| Phase Resistance(ohm) | 0.8 |
| Rated Current (A) | 2.5 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | External(Acme) |
| Physical Specification | |
| Body Length(mm) | 48 |
| Frame Size(mm) | Nema 17 (42 x 42) |
| Lead Length(mm) | 500 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 150 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 1.27 |
| Lead Travel/Step(mm) | 0.00635 |
| IP Rating | 40 |
