NEMA 8 External Acme Stepper Motor Linear Actuator 1.8 Deg 0.015Nm(2.12oz.in) 0.5A 28.2mm Stack Lead Revolution 2mm(0.07874") Lead Screw 100mm

NEMA 8 External Acme Stepper Motor Linear Actuator 1.8 Deg 0.015Nm(2.12oz.in) 0.5A 28.2mm Stack Lead Revolution 2mm(0.07874") Lead Screw 100mm
NO.:8E11S0504AC5-100RS
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$45.47
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $43.20 5%
10 $42.29 7%
50 $40.92 10%
100 $39.56 13%
Add To Cart

NEMA 8 External Acme Linear Stepper Motor 0.5A 28.2mm Stack Screw Lead 2mm(0.07874") Lead Length 100mm

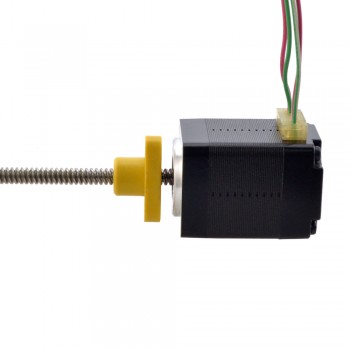

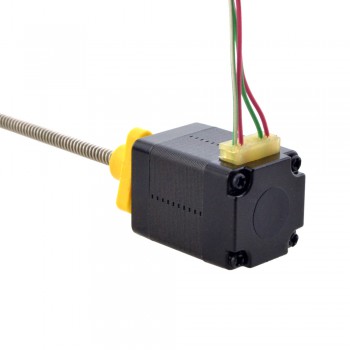

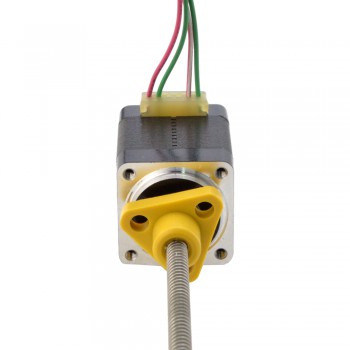

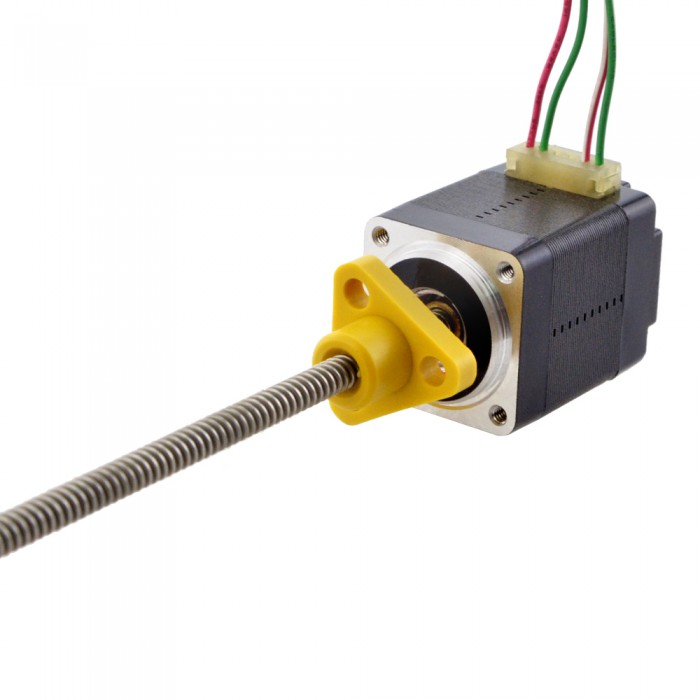

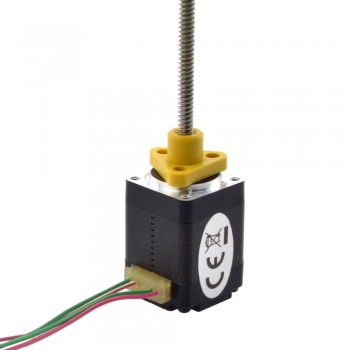

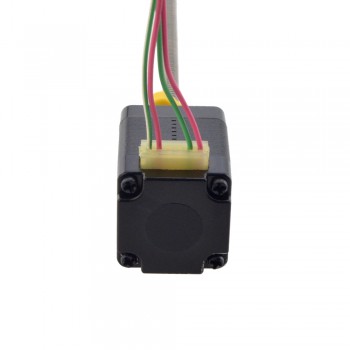

This model is a Nema 8 ACME screw linear stepper motor with a 30mm body length, 1.8 degree step angle and 0.5A rated current. It is integrated with a 3.5mm(0.1378") diameter, 100mm(3.937") ACME screw length and a POM screw nut, the linear travel is 2mm(0.07874") per revolution.



Electrical Specification

Manufacturer Part Number: 8E11S0504AC5-100RS

Motor Type: External(ACME)

Step Angle: 1.8°

Holding Torque: 0.015Nm(2.12oz.in)

Rated Current/phase: 0.5A

Phase Resistance: 5ohms

Inductance: 1.5mH±20%(1KHz)



Physical Specification

Frame Size: 20 x 20mm

Body Length: 30mm

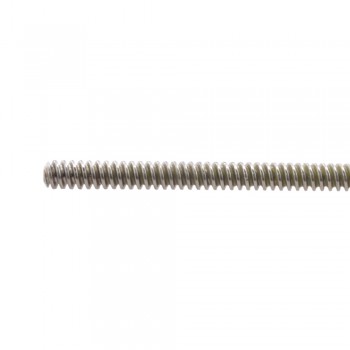

Lead Screw Length: 100mm(3.937")

Lead Screw Diameter: Φ3.5mm(0.1378")

Lead/Step: 0.01mm(0.0003937")

Lead Travel/Revolution: 2mm(0.07874")

Number of Leads: 4

Number of Thread Starts: 2

Lead Length: 300mm



Connection

A+ A- B+ B-
Red Red/White Green Green/White



Resources



Lead Screw End Machining

NEMA 8 External Acme Stepper Motor Linear Actuator 1.8 Deg 0.015Nm(2.12oz.in) 0.5A 28.2mm Stack Lead Revolution 2mm(0.07874



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 8 External Acme Hybrid Stepper Linear Actuator 1.8 Deg 0.015Nm 0.5A 28.2mm Stack Lead Revolution 1mm(0.03937") Lead Screw 100mm
Next: NEMA 8 External Acme Stepper Motor Linear Actuator 0.5A 1.8 Deg 0.02Nm(2.83oz.in) 38.2mm Stack Lead Revolution 1mm(0.03937") Lead Screw 100mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 1.5
Phase Resistance(ohm) 5
Rated Current (A) 0.5
Step Angle(deg.) 1.8
Linear Motor Type External(Acme)
Physical Specification
Body Length(mm) 30
Frame Size(mm) Nema 08 (20 x 20)
Lead Length(mm) 300
Lead Screw Diameter(mm) 3.5
Lead Screw Length(mm) 100
No. of Lead 4
Lead Travel/Revolution(mm) 2
Lead Travel/Step(mm) 0.01
IP Rating 40
