Round Nema 14 Stepper Motor Bipolar 0.9 Deg 5Ncm (7.08oz.in) 0.5A 8.5V Φ36x12mm 4 Wires

Round Nema 14 Stepper Motor Bipolar 0.9 Deg 5Ncm (7.08oz.in) 0.5A 8.5V Φ36x12mm 4 Wires
NO.:14HR05-0504S
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$18.95
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $18.00 5%
30 $17.62 7%
50 $17.06 10%
100 $16.49 13%
Add To Cart

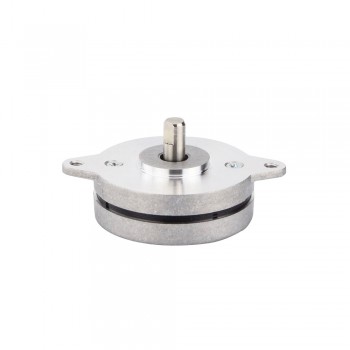

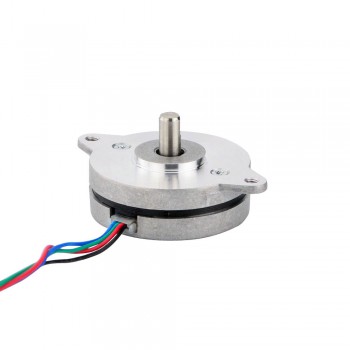

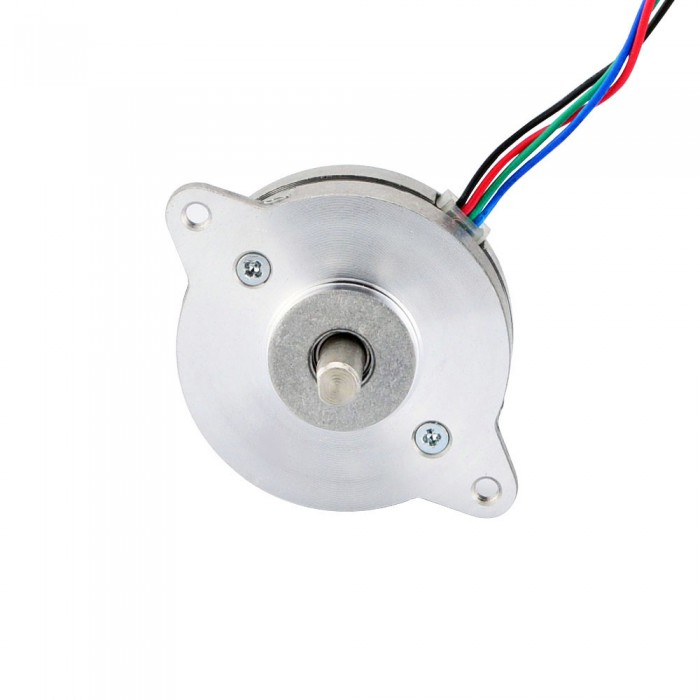

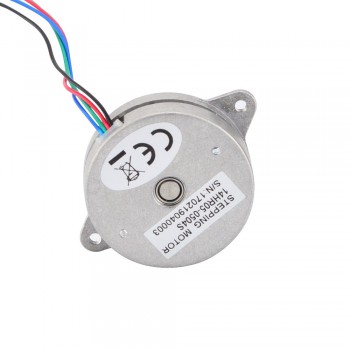

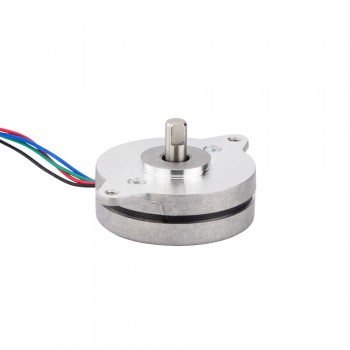

Round Nema 14 Stepper Motor Bipolar 0.9 deg 5Ncm (7.08oz.in) 0.5A 8.5V Φ36x12mm 4 Wires



This round hybrid bipolar Nema 14 stepper motor with step angle 0.9deg and size Φ36x12mm. It has 4 wires, each phase draws 0.5A at 8.5V, with holding torque 5Ncm (7.08oz.in).



Electrical Specification

Manufacturer Part Number: 14HR05-0504S

Motor Type: Bipolar Stepper

Step Angle: 0.9 deg

Holding Torque: 5Ncm (7.08oz.in)

Rated Current/phase: 0.5A

Voltage: 8.5V

Phase Resistance: 17ohms

Inductance : 6.5mH ± 20%(1KHz)



Physical Specification

Frame Size: Φ36mm

Body Length: 12.5mm

Shaft Diameter: Φ5mm

Shaft Length: 10.5mm

D-cut Length: 5mm

Number of Leads: 4

Lead Length: 300mm

Weight: 50g



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Full Datasheet: 14HR05-0504S.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema Size 11 Stepper Motor Bipolar 1.8 Deg 12Ncm (17oz.in) 0.67A 6.2V 28x28x51mm 4 Wires
Next: Nema 14 Hybrid Stepper Motor Bipolar 0.9 Deg 8.5Ncm (12oz.in) 0.65A 4.6V Φ36x20mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 5
Holding Torque (oz.in) 7.08
Inductance(mH) 6.5
Phase Resistance(ohm) 17
Rated Current (A) 0.5
Step Angle(°) 0.9
Physical Specification
Body Length(mm) 12
Frame Size(mm) Ф36.5
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 10.5
No. of Lead 4
Lead Length(mm) 300
Weight(g) 60
