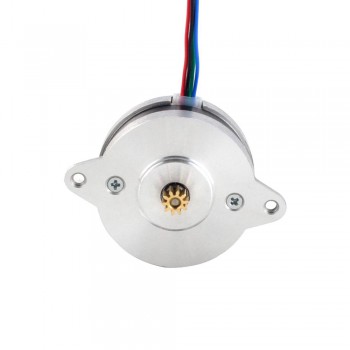

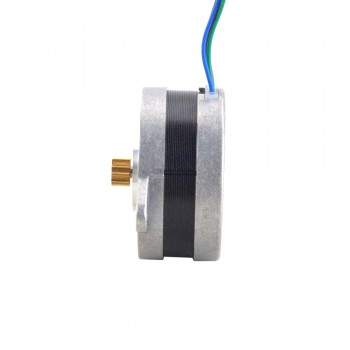

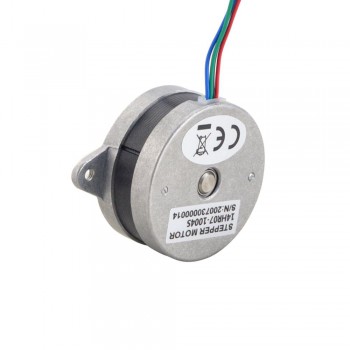

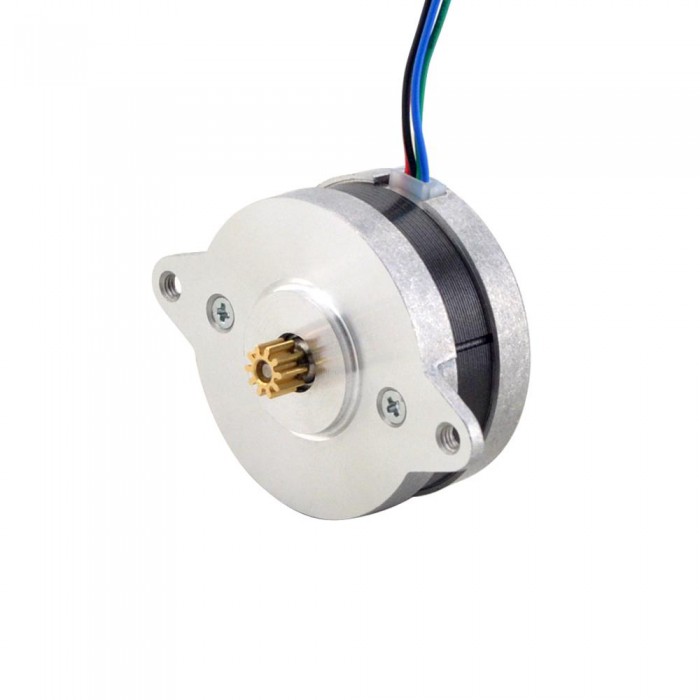

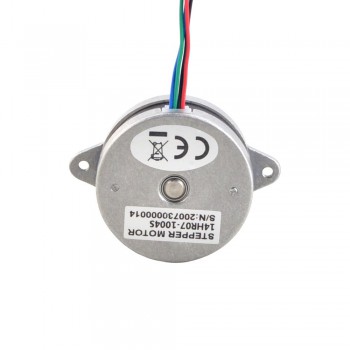

Round Nema 14 Bipolar 1.8deg 9 Ncm(12.75 oz.in) 1.0A Φ36x17.5mm 4 Wires

Round Nema 14 Bipolar 1.8deg 9 Ncm(12.75 oz.in) 1.0A Φ36x17.5mm 4 Wires
NO.:14HR07-1004VRN
Review: Post a review
Latest price:$27.45
Buy It Now:$18.30
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $17.39 5%
30 $17.02 7%
50 $16.47 10%
100 $15.56 15%
Add To Cart

Round Nema 14 Bipolar 1.8deg 9 Ncm(12.75 oz.in) 1.0A Φ36x17.5mm 4 Wires



Electrical Specification

Manufacturer Part Number: 14HR07-1004VRN

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 9 Ncm(12.75 oz.in)

Rated Current/phase: 1.0 A

Phase Resistance: 3.9 ohms

Inductance: 2.0 mH ± 20%(1KHz)



Physical Specifications

Frame Size: 36.5 x 36.5 mm

Body Length: 17.5 mm

Shaft Diameter: Φ2.5 mm

Shaft Length: 4 mm

Number of Leads: 4

Lead Length: 500 mm

Weight: 0.08 kg



Connection

A+
A-
B+
B-
RED
GRN
BLK
BLU



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 3 Axis CNC Router Kit 3.0Nm(425oz.in) Nema 23 Stepper Motor & Driver
Next: DR-RDN20 Mean Well 24VDC 20A Redundancy Module DIN Rail Power Supply
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 9
Holding Torque (oz.in) 12.75
Inductance(mH) 2.0
Phase Resistance(ohm) 3.9
Rated Current (A) 1.0
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 17.5
Frame Size(mm) Nema 14 (36.5 x 36.5)
Lead Length(mm) 500
No. of Lead 4
Shaft Diameter(mm) 2.5
Shaft Length(mm) 4
Single Shaft/Dual Shaft Single Shaft
Weight(g) 80
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
