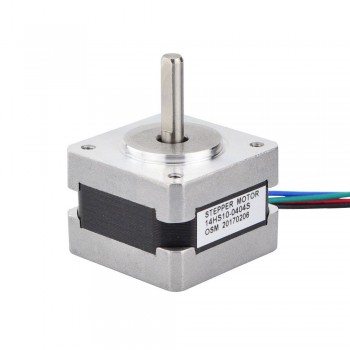

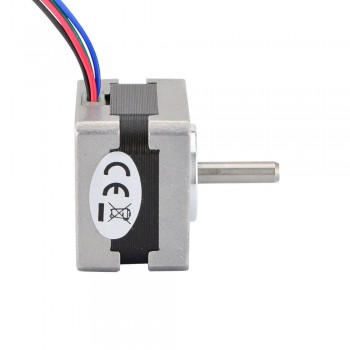

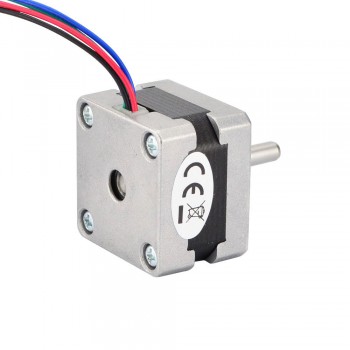

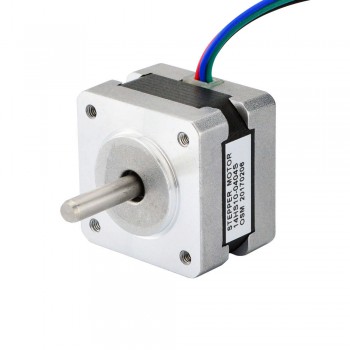

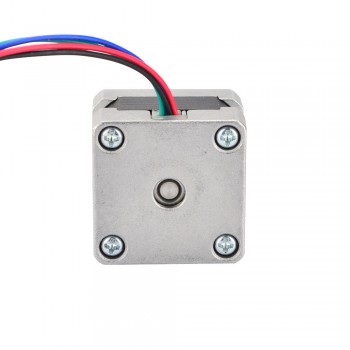

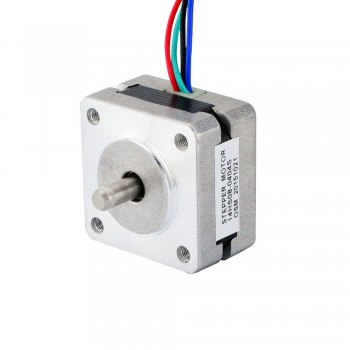

Nema 14 Stepper Motor Bipolar 1.8 deg 14Ncm (20oz.in) 0.4A 12V 35x35x26mm 4 Wires
This bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x26mm. It has 4 wires, each phase draws 0.4A at 12V, with holding torque 14Ncm (20oz.in).
Electrical Specification
Manufacturer Part Number: 14HS10-0404S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 14Ncm(20oz.in)
Rated Current/phase: 0.4A
Voltage: 12V
Phase Resistance: 30ohms
Inductance : 30mH ± 20%(1KHz)
Physical Specification
Frame Size: 35 x 35mm
Body Length: 26mm
Shaft Diameter: Φ5mm
Shaft Length: 20.5mm
D-cut Length: 16.5mm
Number of Leads: 4
Lead Length: 400mm
Weight : 140g
Connection
A+
|
A-
|
B+
|
B-
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 14HS10-0404S.pdf
Torque Curver: 14HS10-0404S Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Holding Torque (Ncm) | 14 |
Holding Torque (oz.in) | 20 |
Inductance(mH) | 30 |
Phase Resistance(ohm) | 30 |
Rated Current (A) | 0.4 |
Step Angle(°) | 1.8 |
Physical Specification | |
Body Length(mm) | 26 |
Frame Size(mm) | 35x35 |
Single Shaft/Dual Shaft | Single Shaft |
Shaft Type | D-Cut |
Shaft Diameter(mm) | 5 |
Shaft Length(mm) | 20.5 |
No. of Lead | 4 |
Lead Length(mm) | 400 |
Weight(g) | 140 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
Rob – 16 Jun 2016
Works perfectly for the Toranado geared 3D extruder. Shaft is slightly shorter so when mounting the pinion gear have it flush with the end of the shaft.
L4Soft – 22 May 2016
I bought this motor to drive a geared extruder on my 3D printer. It works great. The previous motor tended to overheat but this one remains cool even after several hours of printing.
