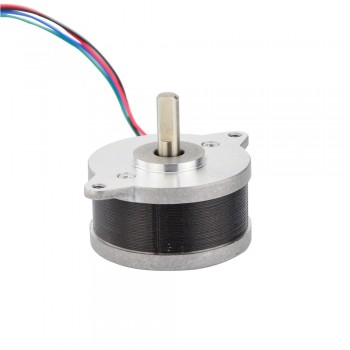

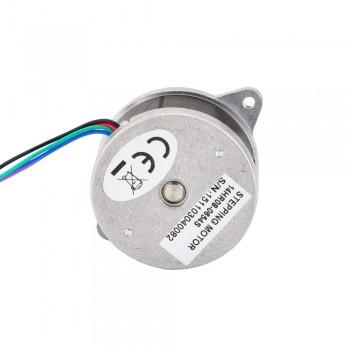

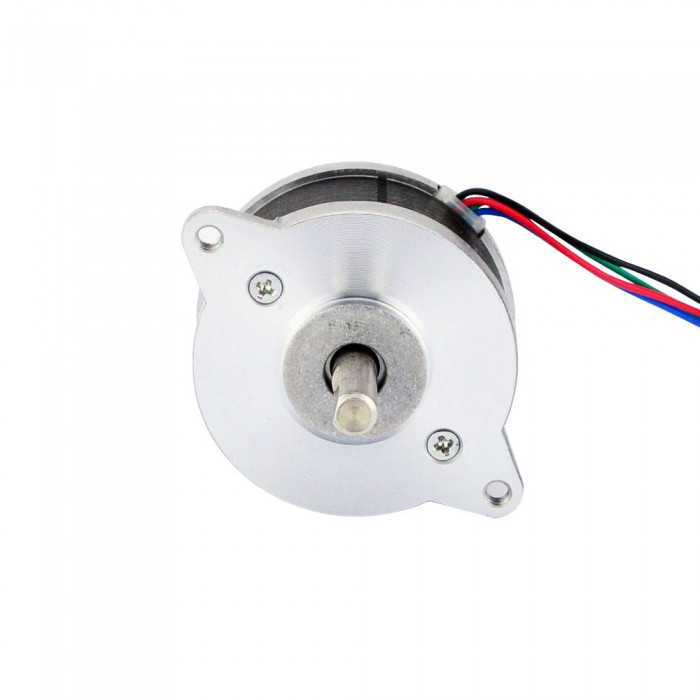

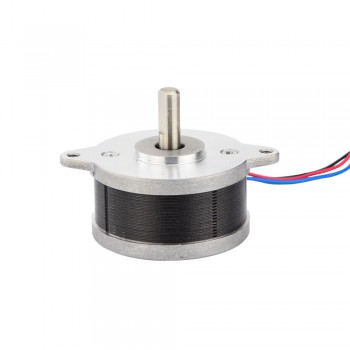

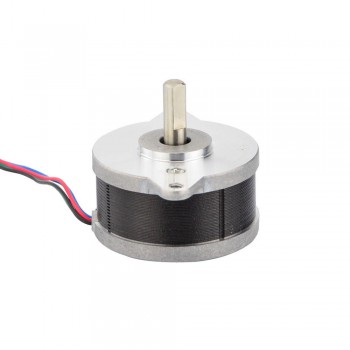

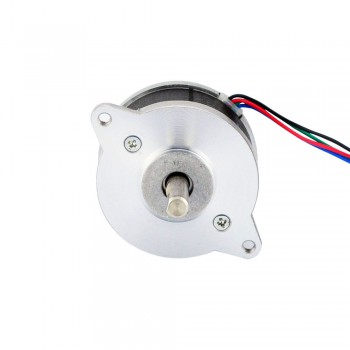

Nema 14 Stepper Motor Bipolar 0.9 deg 8.5Ncm (12oz.in) 0.65A 4.6V Φ36x20mm 4 Wires

NO.:SKU:14HR08-0654S
Review: Post a review
Latest price:$19.84
Buy It Now:$15.26
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$14.38 $13.49 $12.91 $12.33
Add To Cart

This round hybrid bipolar Nema 14 stepper motor with step angle 0.9deg and size Φ36x20mm. It has 4 wires, each phase draws 0.65A at 4.6V, with holding torque 8.5Ncm (12oz.in).

Electrical Specification

  • Manufacturer Part Number: 14HR08-0654S
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.9 deg
  • Holding Torque: 8.5Ncm (12oz.in)
  • Rated Current/phase: 0.65A
  • Voltage: 4.6V
  • Phase Resistance: 7ohms
  • Inductance : 6.0mH ± 20%(1KHz)

Physical Specification

  • Frame Size: Φ36mm
  • Body Length: 19.5mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 15.5mm
  • D-cut Length: 10mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 100g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Round Nema 14 Stepper Motor Bipolar 0.9 deg 5Ncm (7.08oz.in) 0.5A 8.5V Φ36x12mm 4 Wires
Next: Round Nema 14 Stepper Motor 0.9 deg 9.5Ncm (13.5oz.in) 0.43A 3.83V Φ36x21.5mm w/ pulley
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 8.5
Holding Torque (oz.in) 12
Inductance(mH) 6
Phase Resistance(ohm) 7
Rated Current (A) 0.65
Step Angle(°) 0.9
Physical Specification
Body Length(mm) 19.6
Frame Size(mm) Ф36.5
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 15
No. of Lead 4
Lead Length(mm) 300
Weight(g) 130
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.

fyeahsnowcones – 31 Jan 2017

very strong for the weight, got it to optimize the weight of the extruder carriage. Note this is only really probably possible if you did what I did which is directly hob the shaft with a tap
