Round Nema 14 Stepper Motor 0.9 Degree 9.5Ncm (13.5oz.in) 0.43A 3.83V Φ36x21.5mm with Pulley

Round Nema 14 Stepper Motor 0.9 Degree 9.5Ncm (13.5oz.in) 0.43A 3.83V Φ36x21.5mm with Pulley
NO.:14HR09-0434S-C1
Post a review
Special Offer in December 2023:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till December 7th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$18.68
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $17.75 5%
30 $17.37 7%
50 $16.81 10%
100 $16.25 13%
Add To Cart

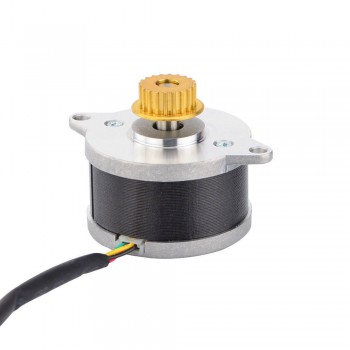

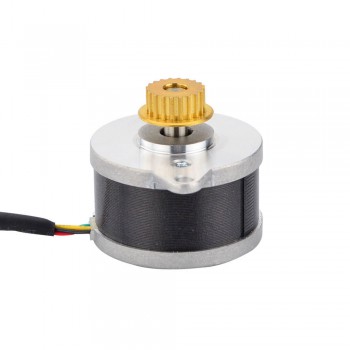

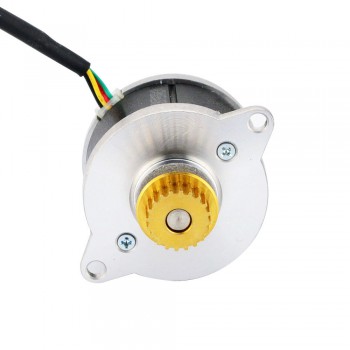

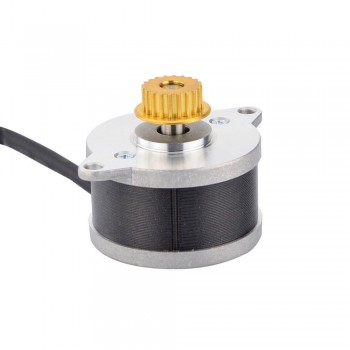

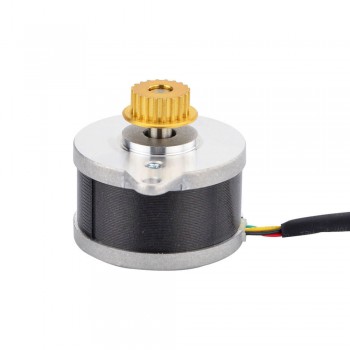

Round Nema 14 Stepper Motor 0.9 Degree 9.5Ncm (13.5oz.in) 0.43A 3.83V Φ36x21.5mm with Pulley



This custom round hybrid bipolar Nema 14 stepper motor with step angle 0.9deg and size Φ36x21.5mm. It has 4 wires, each phase draws 0.43A at 3.83V, with holding torque 9.5Ncm (13.5oz.in). A 20 teeth MXL pulley is available, It's a good choice for camera and monitor.



Electrical Specification

  • Manufacturer Part Number: 14HR09-0434S-C1
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.9 deg
  • Holding Torque: 9.5Ncm (13.5oz.in)
  • Rated Current/phase: 0.425A
  • Voltage: 3.83V
  • Phase Resistance: 9.0 ohms
  • Inductance : 5.0mH ± 20%(1KHz)

Physical Specification

  • Frame Size: Φ36mm
  • Body Length: 21.5mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 11.7mm
  • Pulley Profile: MXL
  • Number of Teeth: 20
  • Pully Pitch: 2.032mm
  • Pitch Diameter: Φ12.94
  • Addendum Circle Diameter: Φ12.43
  • Pully Material : H59 Brass
  • Number of Leads: 4 with connector PH-4
  • Lead Length: 120mm
  • Weight: 130g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 Hybrid Stepper Motor Bipolar 0.9 Deg 8.5Ncm (12oz.in) 0.65A 4.6V Φ36x20mm 4 Wires
Next: Nema Size 14 Stepper Motor Bipolar 1.8 Deg 5Ncm (7.08oz.in) 0.4A 10V 35x35x20mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 9.5
Holding Torque (oz.in) 13.5
Inductance(mH) 5
Phase Resistance(ohm) 9
Rated Current (A) 0.43
Step Angle(°) 0.9
Physical Specification
Body Length(mm) 21.5
Frame Size(mm) Ф36.5
Single Shaft/Dual Shaft Single Shaft
Shaft Type O
Shaft Diameter(mm) 5
Shaft Length(mm) 11.7
No. of Lead 4
Lead Length(mm) 120
Weight(g) 130
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
