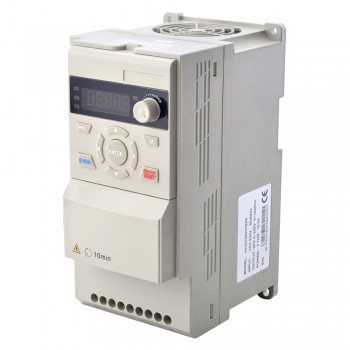

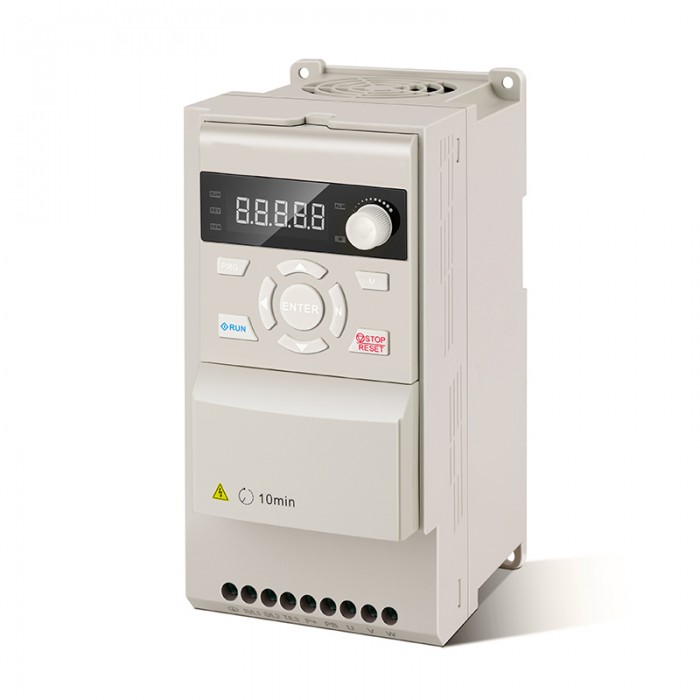

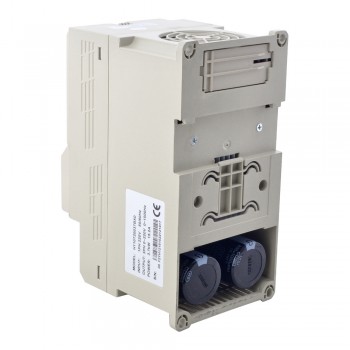

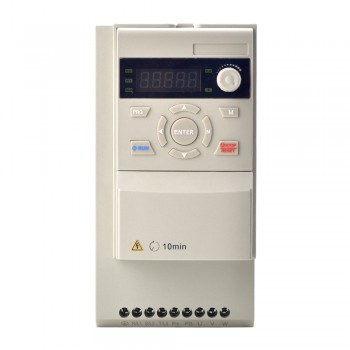

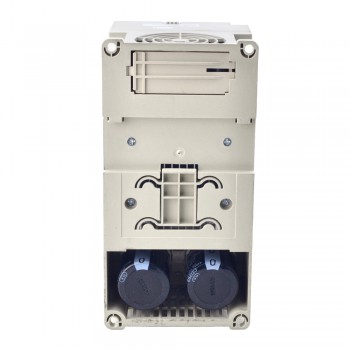

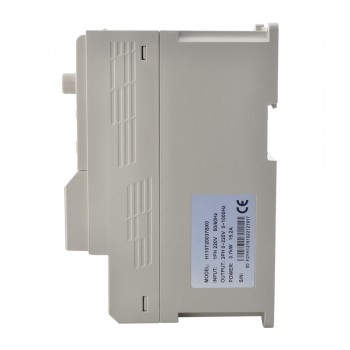

H110 Series VFD Variable Frequency Drive 5HP 3.7KW 15.2A Single/Three Phase 220V for CNC Spindle Motor Speed Control

H110 Series VFD Variable Frequency Drive 5HP 3.7KW 15.2A Single/Three Phase 220V for CNC Spindle Motor Speed Control
NO.:H110T20037BX0
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$157.39
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $149.52 5%
5 $146.38 7%
10 $141.65 10%
50 $136.93 13%
Add To Cart

H110 Series VFD 5HP 3.7KW 15.2A Single/Three Phase 220V CNC Spindle Motor Variable Frequency Drive



This VFD with power 5HP(3.7KW) and single/three phase 220V input voltage. This model is designed for the engraving machine industry, it has been optimized in software and hardware to make its performance better match the operating characteristics of the CNC spindle motor.



Key Specification

Rated Input Voltage: 1-Phase / 3-Phase 220V

Allowed Input Voltage: 1-Phase 180~260VAC, 3-Phase 320~460VAC

Input Frequency: 50/60Hz(+/-5%)

Input Current: 1-Phase 38.6A, 3-Phase 16.5A

Power: 5HP(3.7KW)

Output Current: 15.2A

Output Voltage: 0~Rated Input Voltage

Output Frequency: 0~1000Hz

Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s



Resources

Easy User Manual:H1_Series_Inverter_Easy_User_Manual.pdf

Full User Manual:H1_Series_Inverter_Full_User_Manual.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: H110 Series VFD Variable Frequency Drive 3HP 2.2KW 12.5A Single/Three Phase 220V for Spindle Motor Speed Control
Next: H110 Series VFD Variable Frequency Drive 7.5HP 5.5KW 23A Three Phase 380V for CNC Spindle Motor Speed Control
Variable Frequency Drive Specification
Input Voltage 1PH 220V / 3PH 380VAC
Allowed Input Voltage 180 - 260VAC(1PH) / 320 - 460VAC(3PH)
Input Frequency 50 - 60Hz
Input Current 38.6A(1PH) / 16.5A(3PH)
Power 5HP / 3.7Kw
Output Current 15.2A
Control Modes V/F, SVC
Output Voltage 0 - Rated Input Voltage
Output Frequency 0 - 1000Hz
Output Capacity 150% Rated Current 60s, 180% Rated Current 2s
Modulation Mode SVPWM
Start Torque 1Hz / 150%
Speed Range 1 : 100(SVC)
Acceleration/Deceleration Curve Line / S-curve
Frequency Accuracy Digital (Max. Frequency+/-0.01%) / Anolog (Max. Frequency+/-1%)
Motor Type Asynchronous Motor, Synchronour Motor, Single Phase Motor
Frequency Resolution Digital (0.1Hz) / Anolog (Max. Frequency+/-1%)
Rapid Current Limit Limit current rapidly within the current protection value, to ensure the safety of the equipment
Command Source Keypad, Terminal, Communication
None-stop When Instantaneous Power Off None-stop when instantaneous power off, automatic frequency drop
Set Value Source Digital, Analog, Multi-speed, Communication
PID Support main setting + PID
External Keypad Yes
LED Display Can display: Output frequency, Output voltage, Output current, Bus voltage, Display value 1, Display value 2, Error, Alarm
Protection Function Over-current protection, Over-voltage protection, Under-voltage protection, Overheating protection, Over-load protection, Phase lose protection, Earth leakage, etc
Altitude Derating use abouve 1000M, derating 10% per 1000M
Environment Temperature -10℃ ~+40℃ (environment temperature around 40℃~50℃, please derating use)
Humidity 5%~95%RH, No condensation
Vibration <5.9M/S (0.6g)
Store Environment Indoor, away from direct sunlight, no dust, no corrosive gas, no inflammable gas, no oil mist, no vapour, no drip and no salinity, etc
Store Temperature -40℃ ~ +70℃
